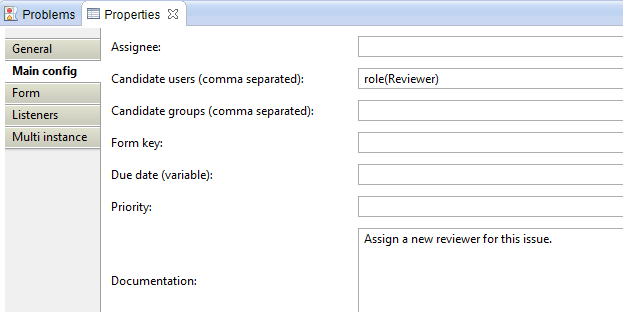

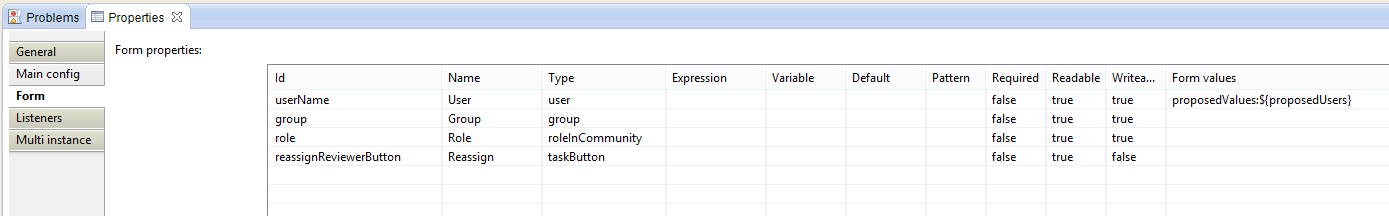

Step 15: Reassign Reviewer

Step 16: Mark as "Pending"

Step 17: Provide Information

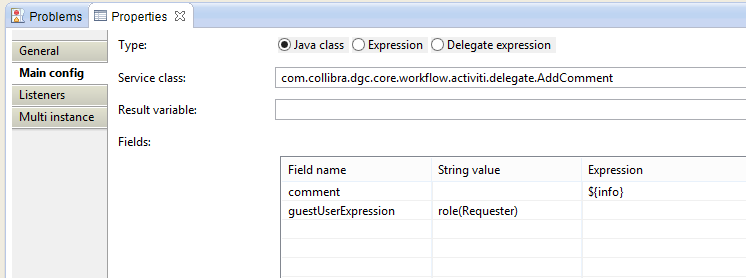

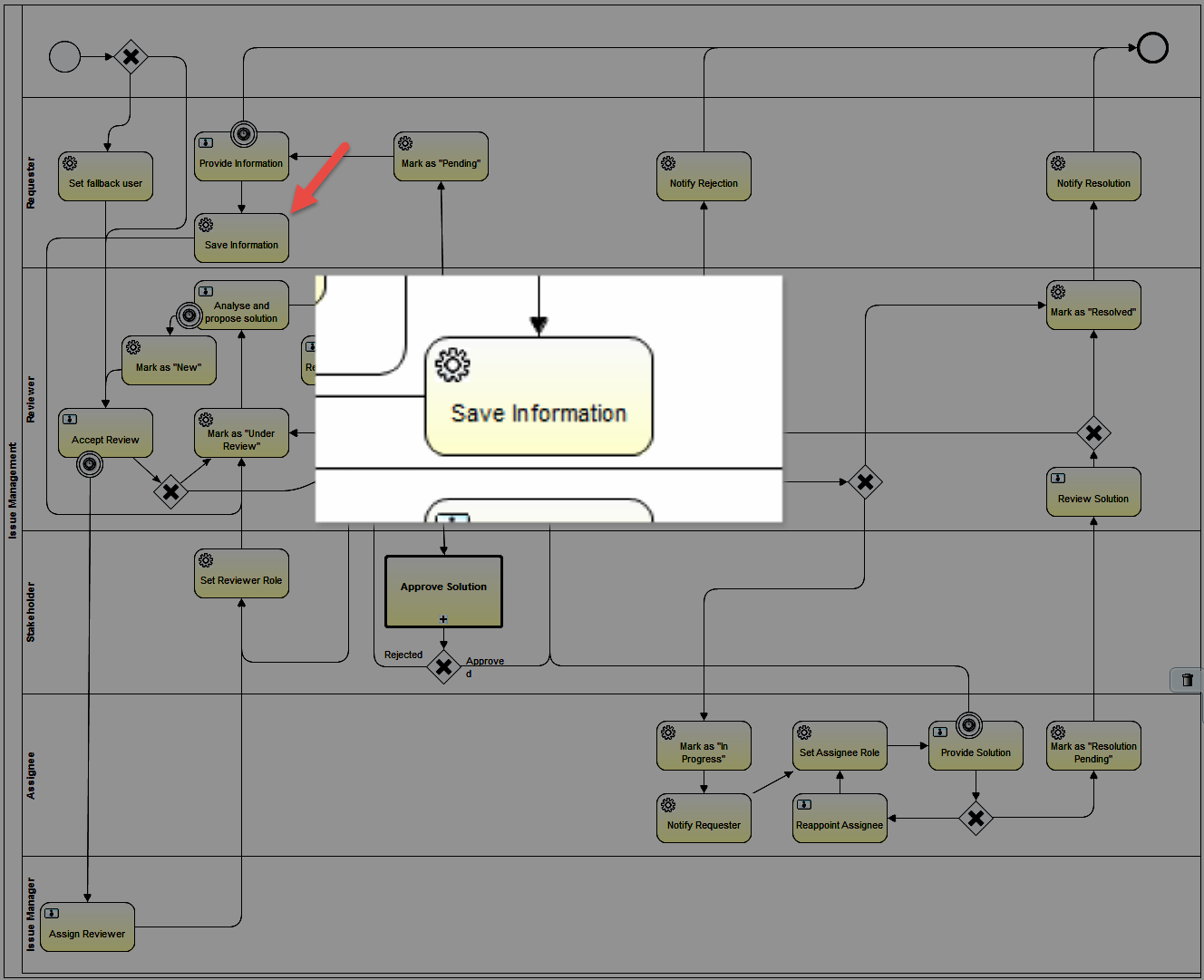

Step 18: Save Information

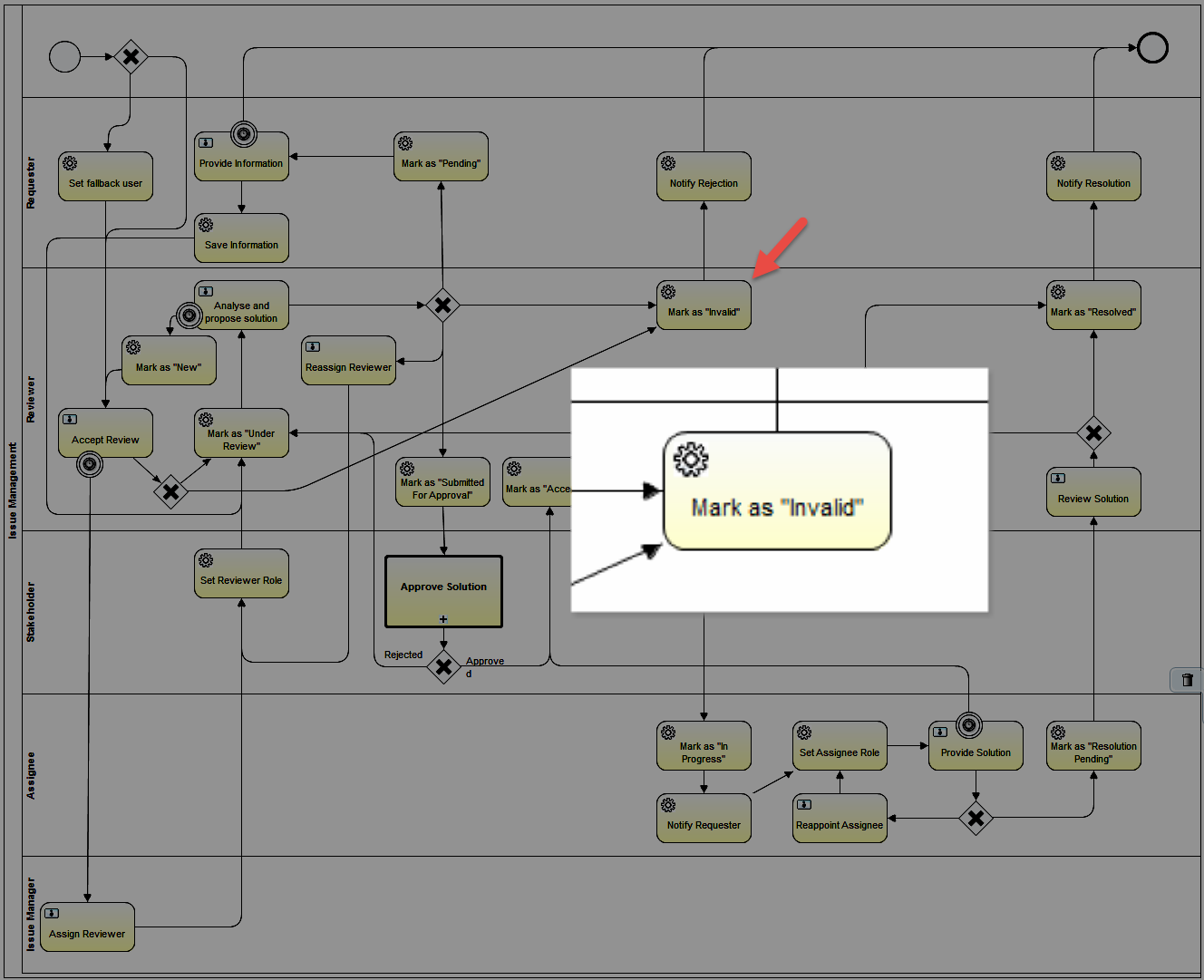

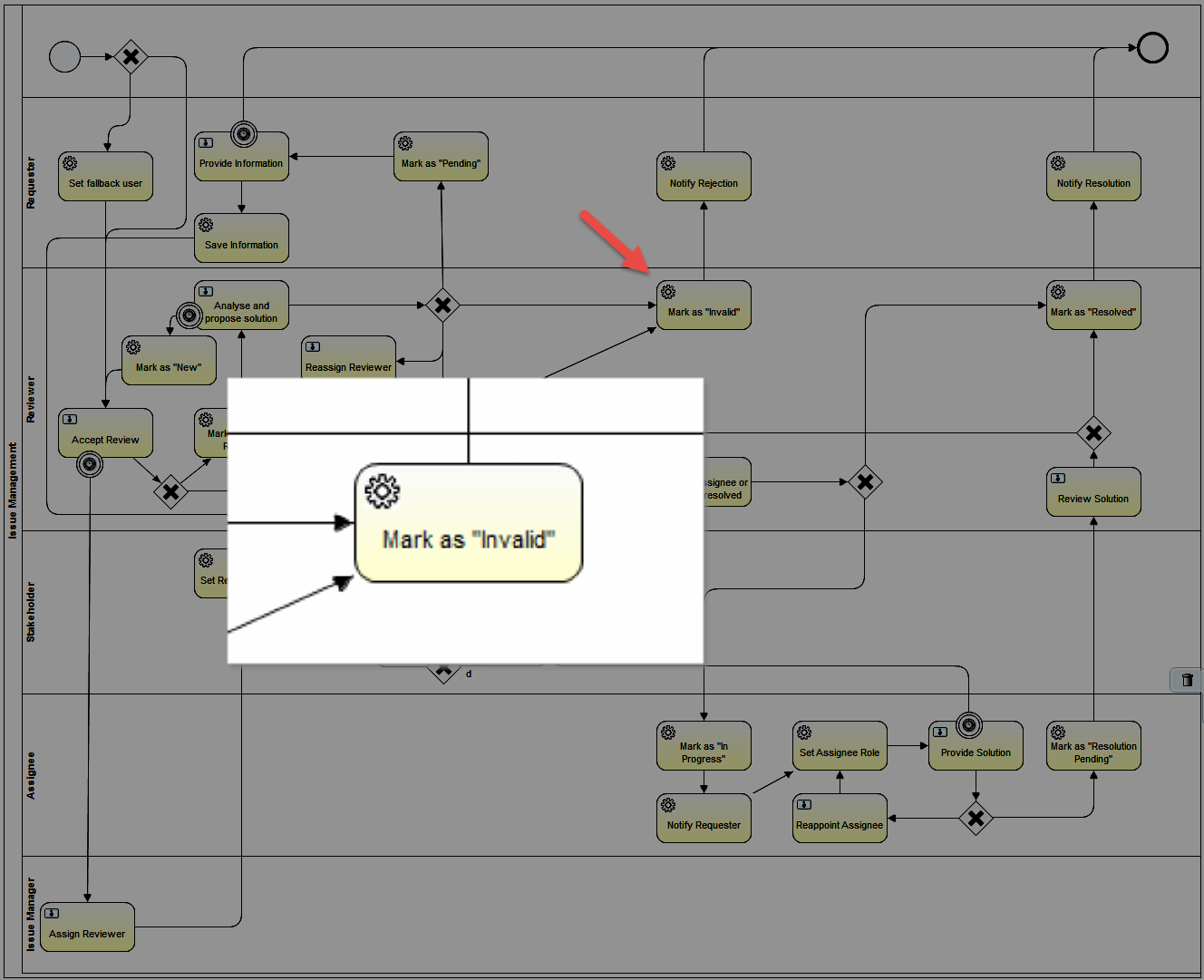

Step 19: Mark as "Invalid"

Step 20: Notify Rejection

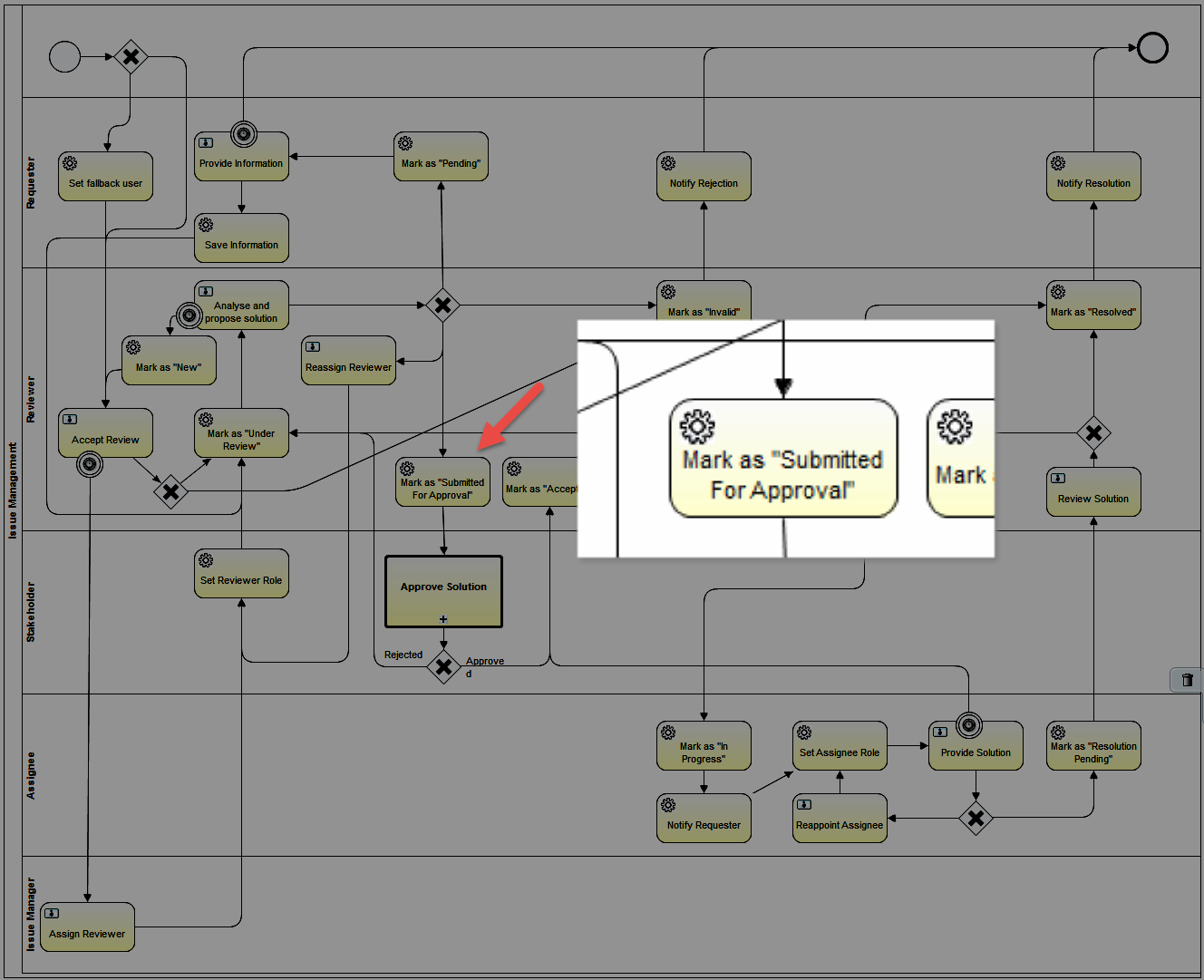

Step 21: Mark as "Submitted For Approval"

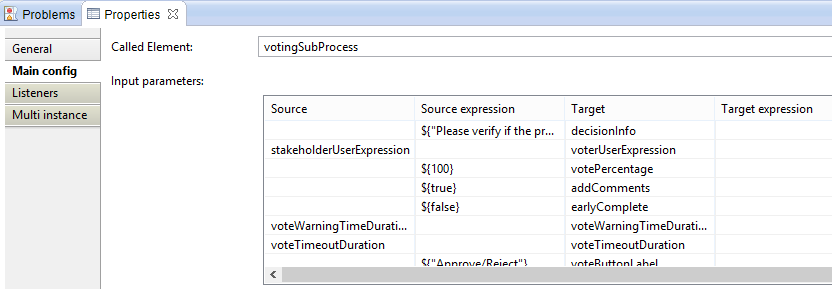

Step 22: Approve Solution

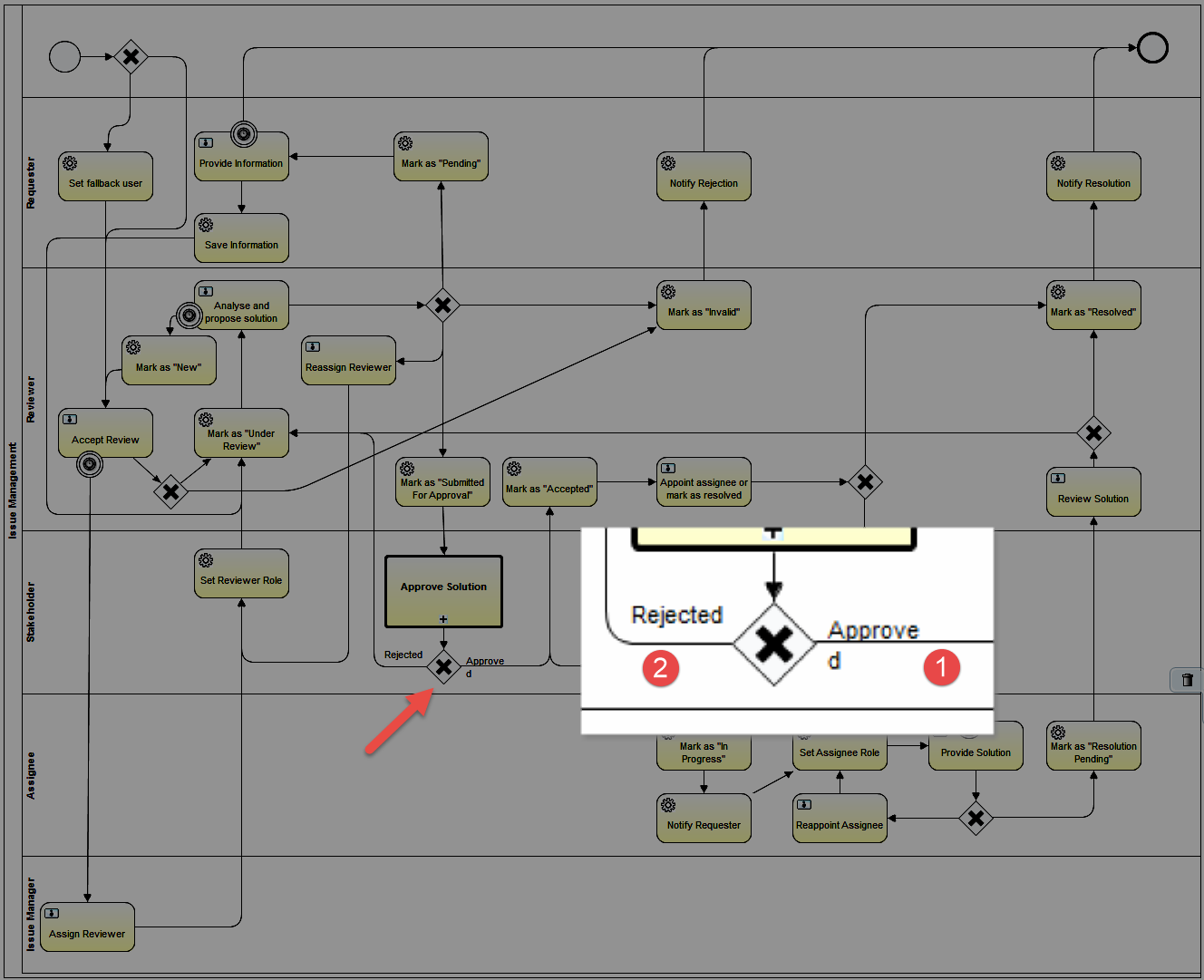

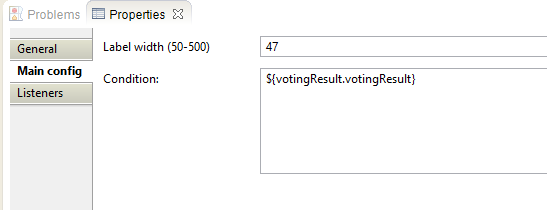

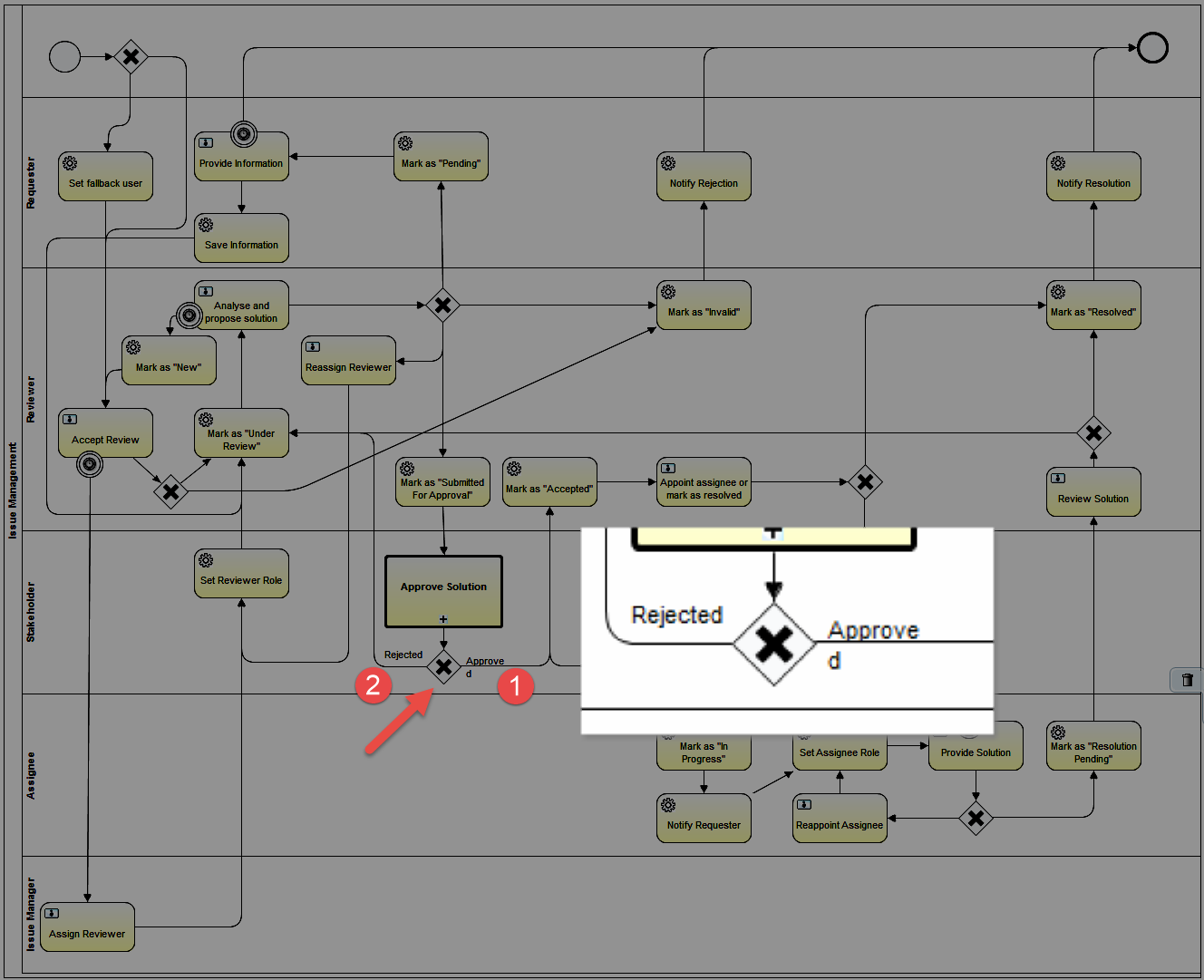

Step 23: Create a Fourth Exclusive Gateway

Step 24: Mark as "Accepted"

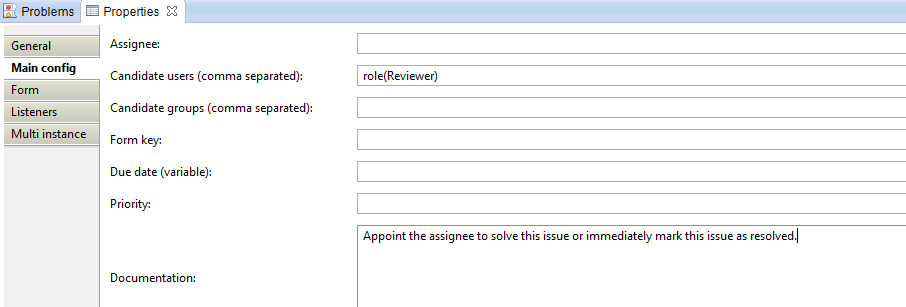

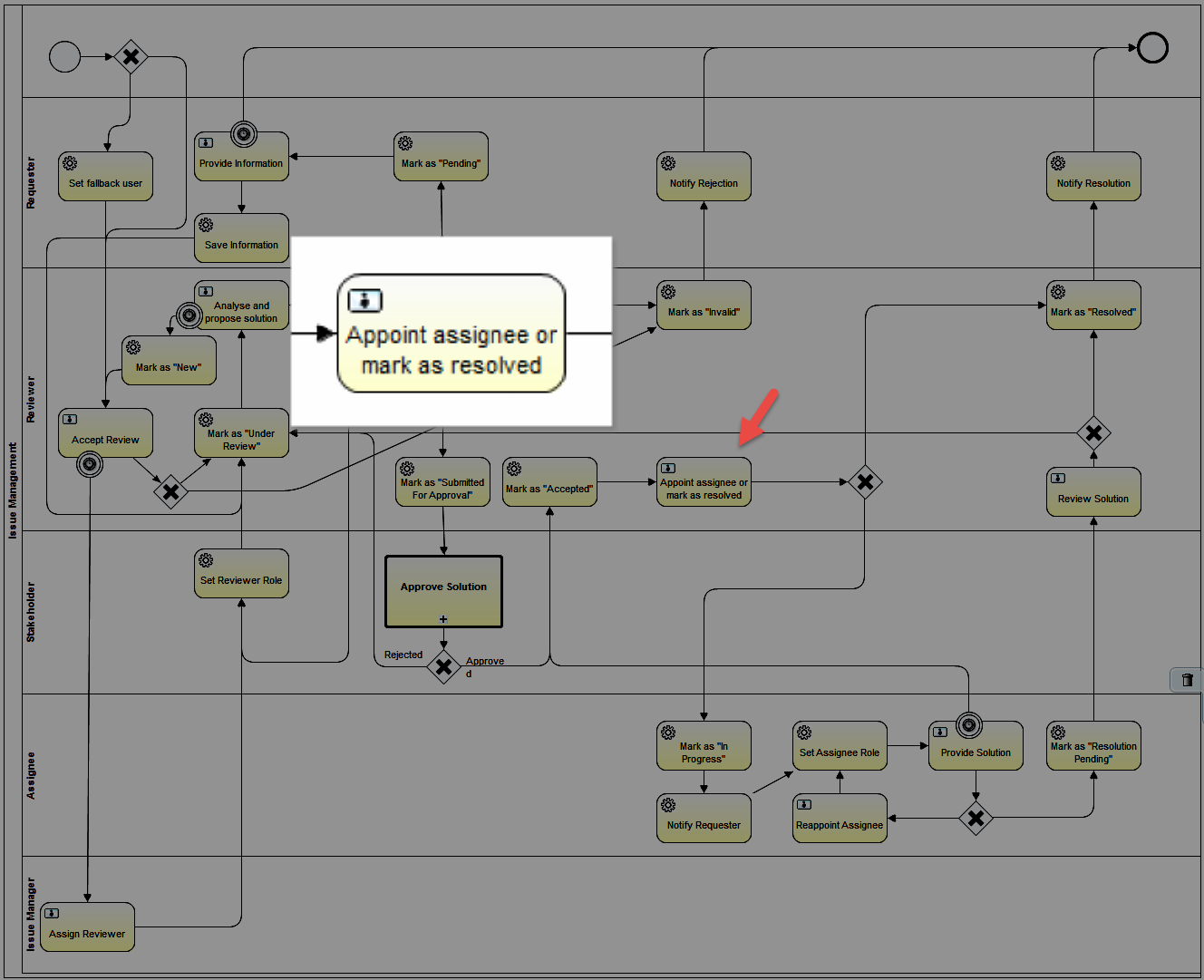

Step 25: Appoint Assignee or Mark as Resolved

Step 26: Create a Fifth Exclusive Gateway

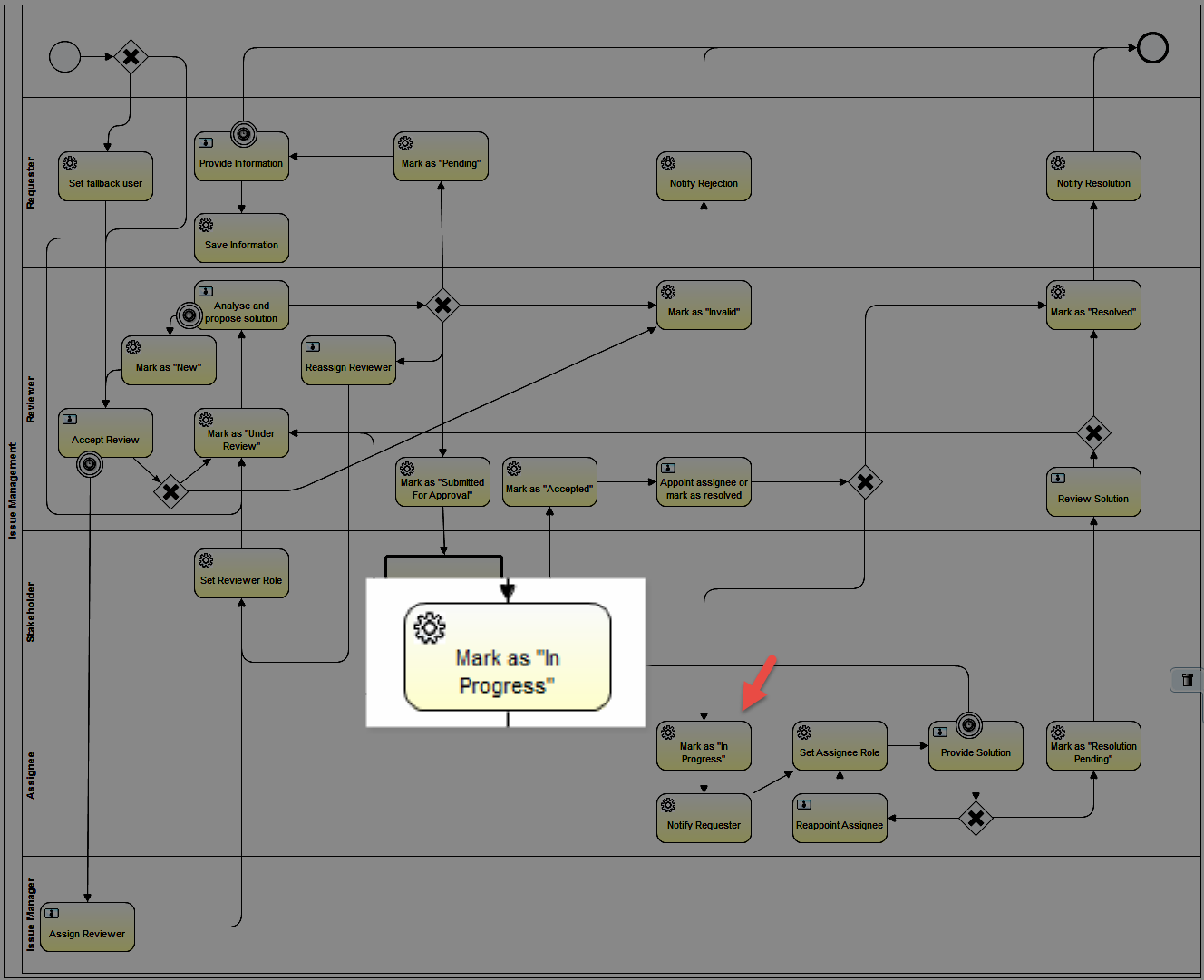

Step 27: Mark as "In Progress"

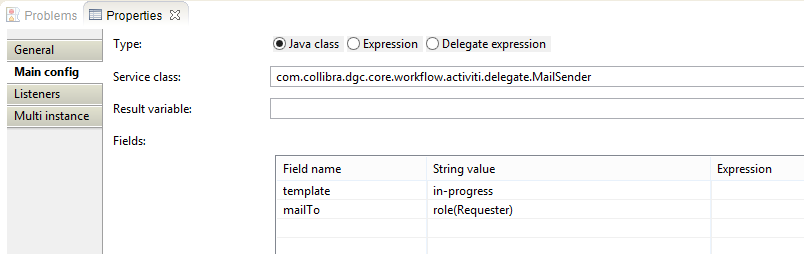

Step 28: Notify Requester

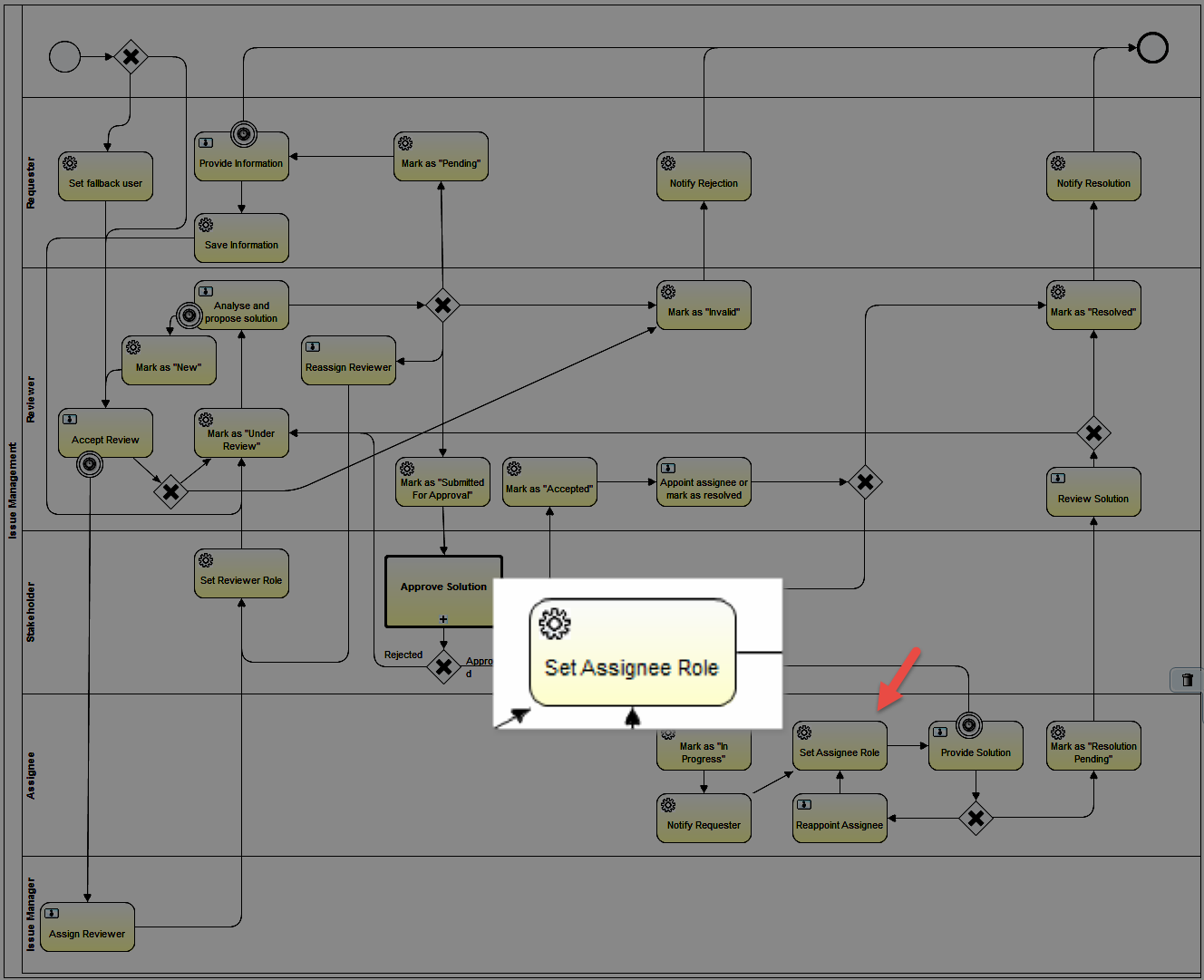

Step 29: Set Assignee Role

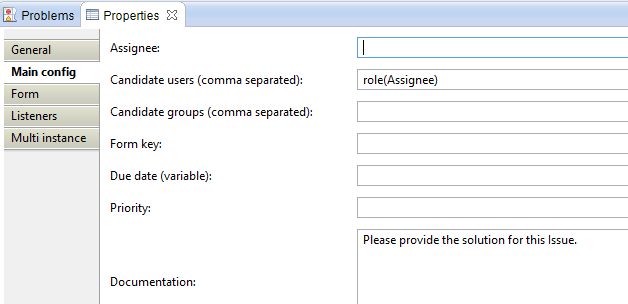

Step 30: Provide Solution

Step 31: Create a Sixth Exclusive Gateway

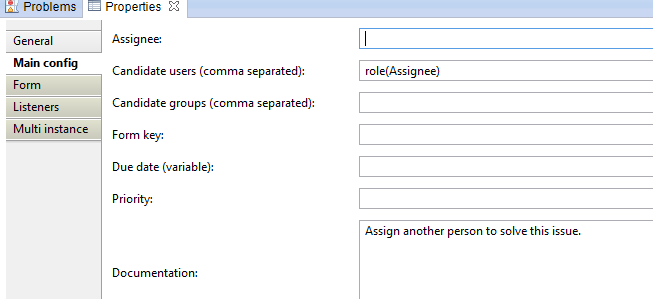

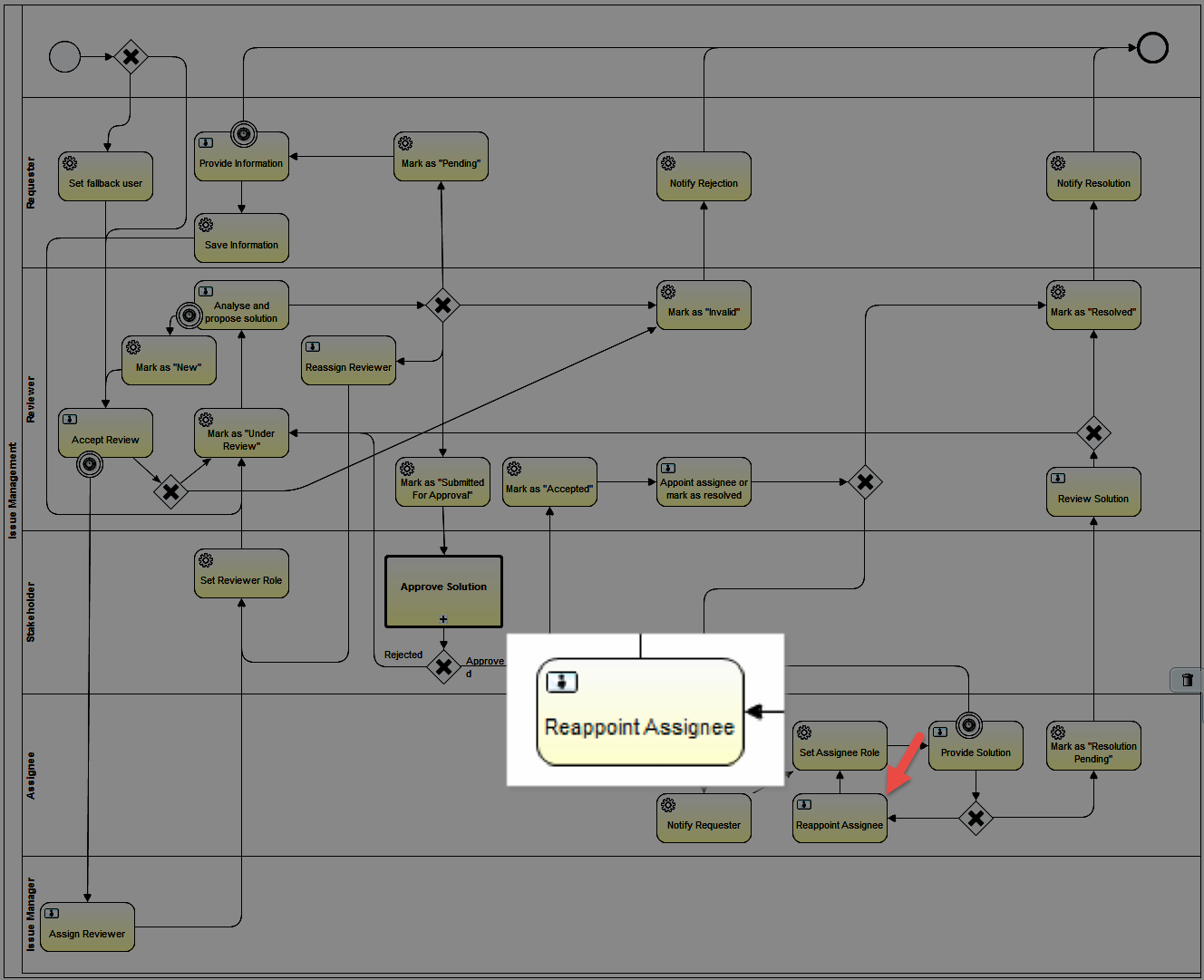

Step 32: Reappoint Assignee

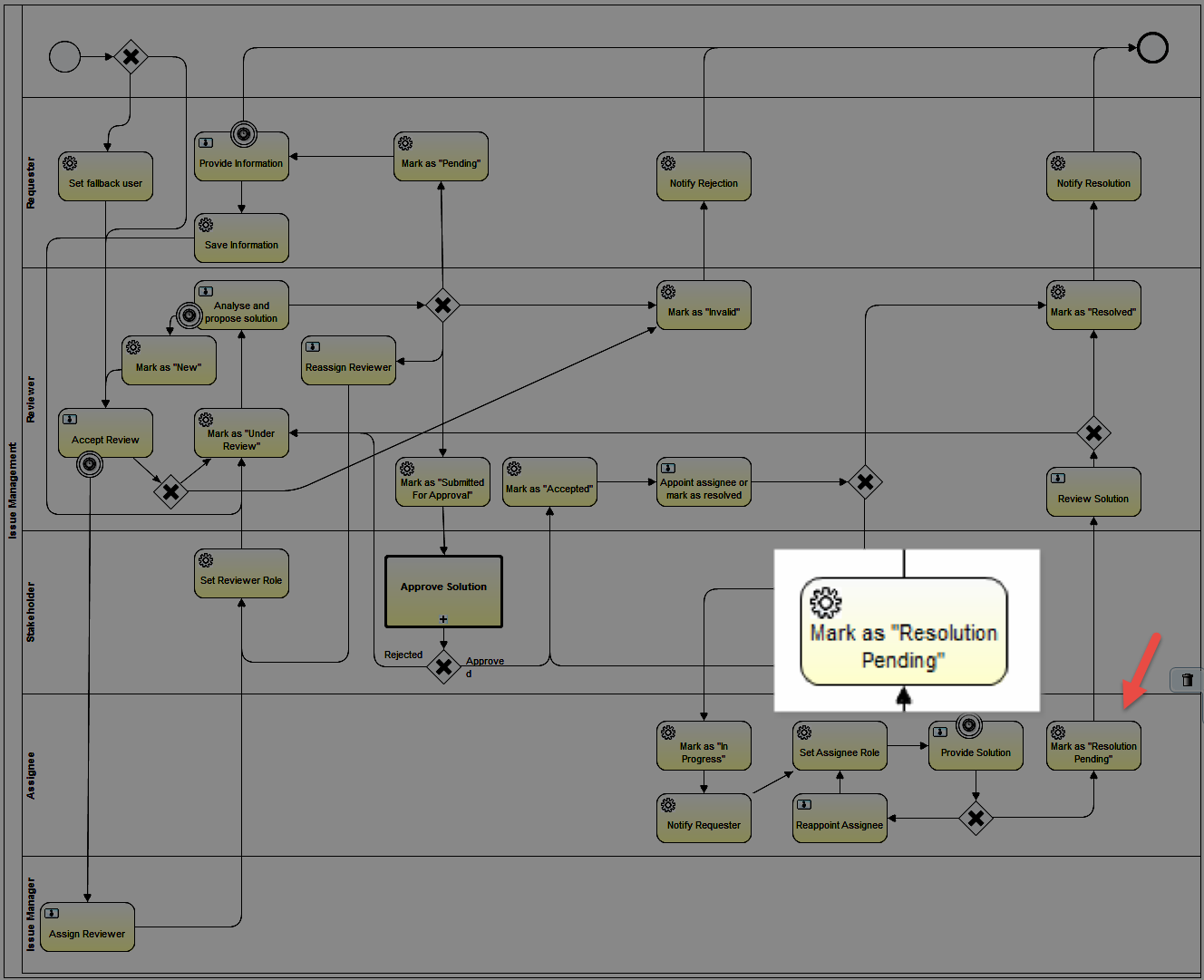

Step 33: Mark as "Resolution Pending"

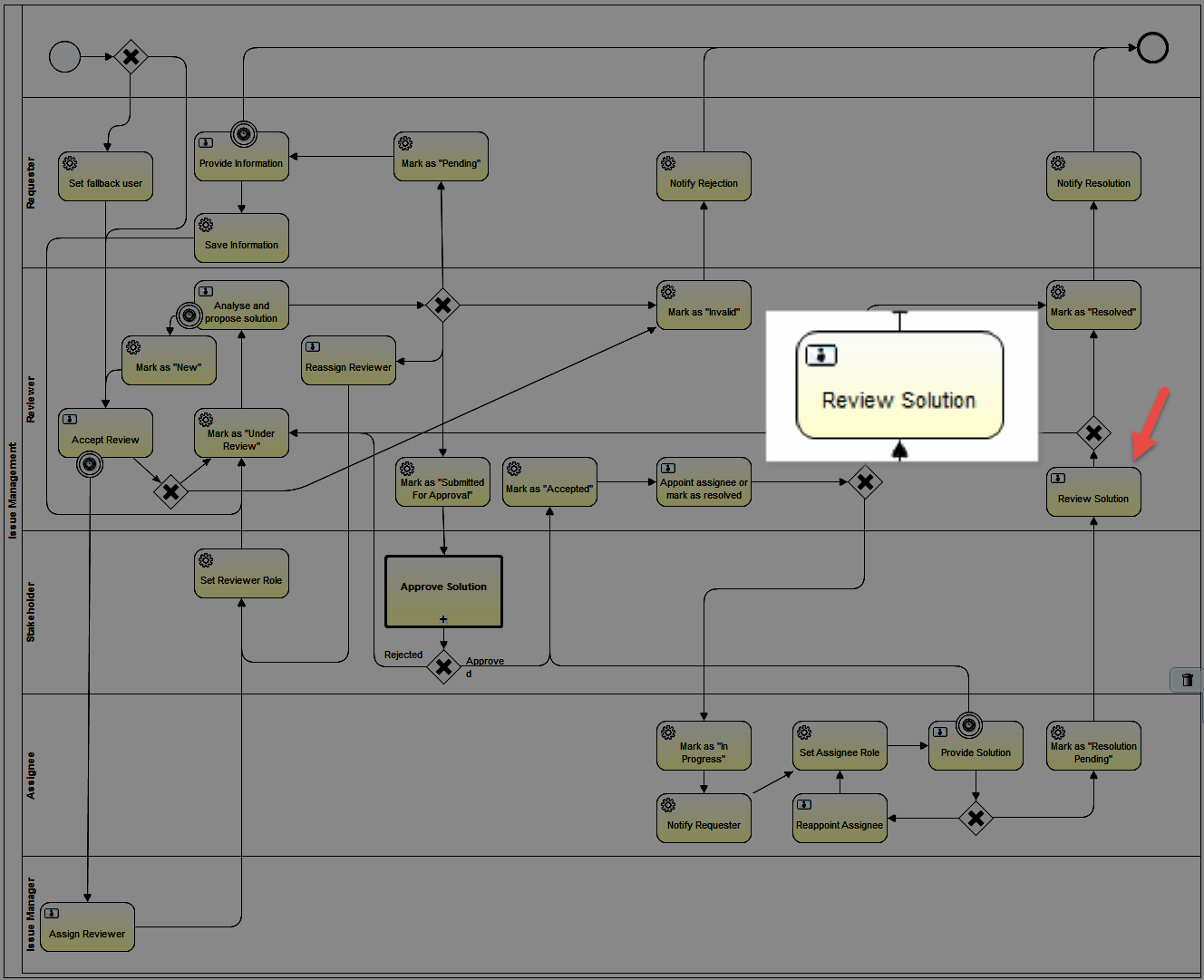

Step 34: Review Solution

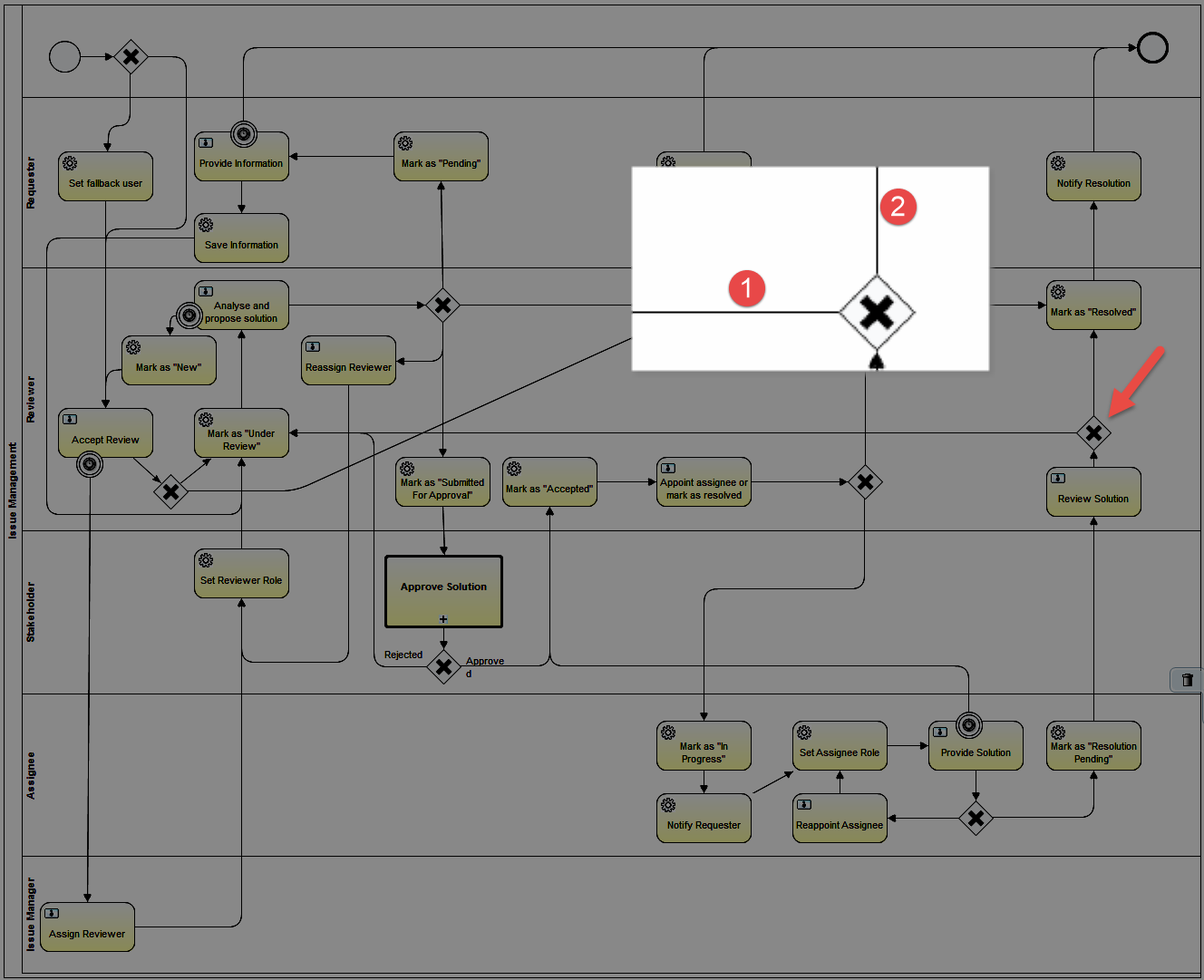

Step 35: Create a Seventh Exclusive Gateway

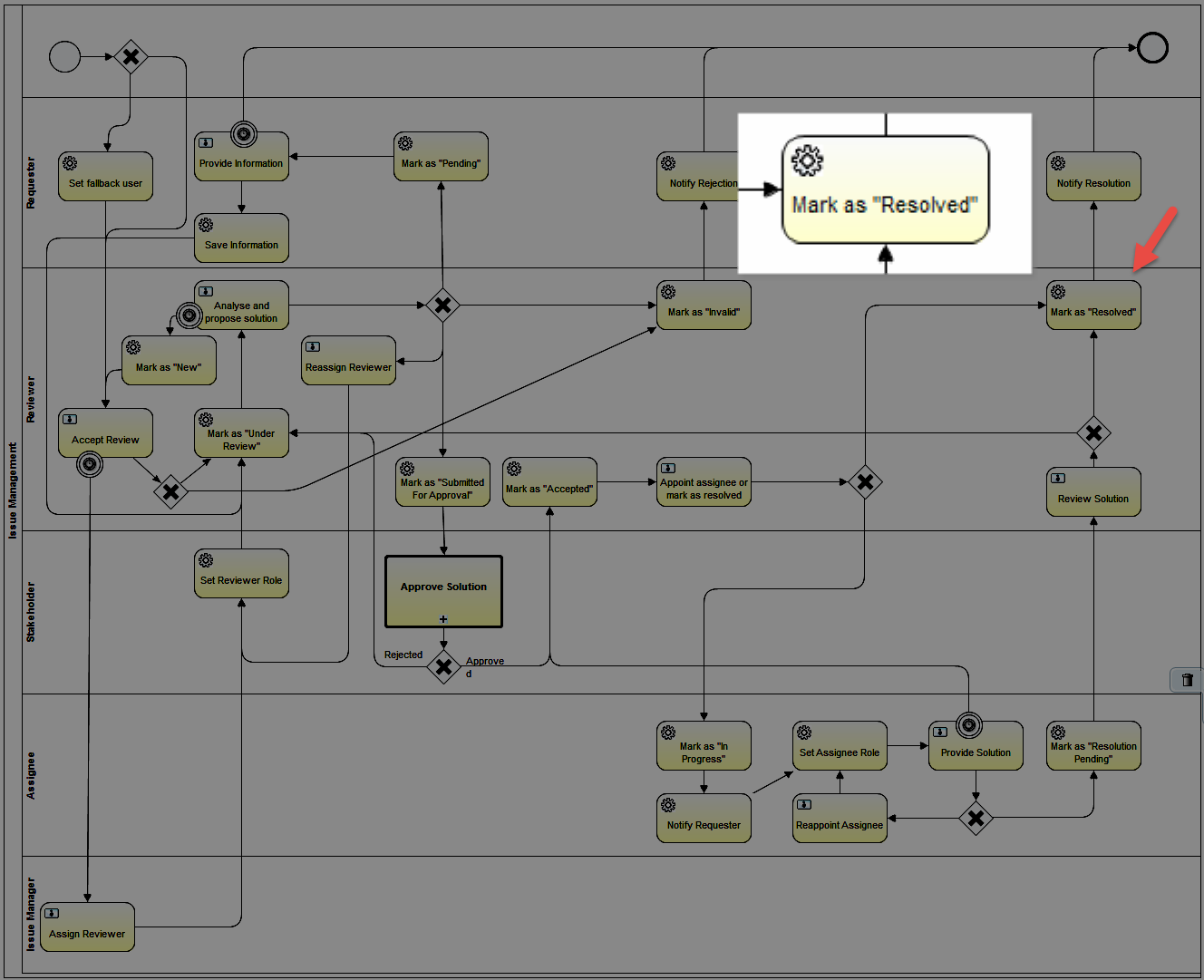

Step 36: Mark as "Resolved"

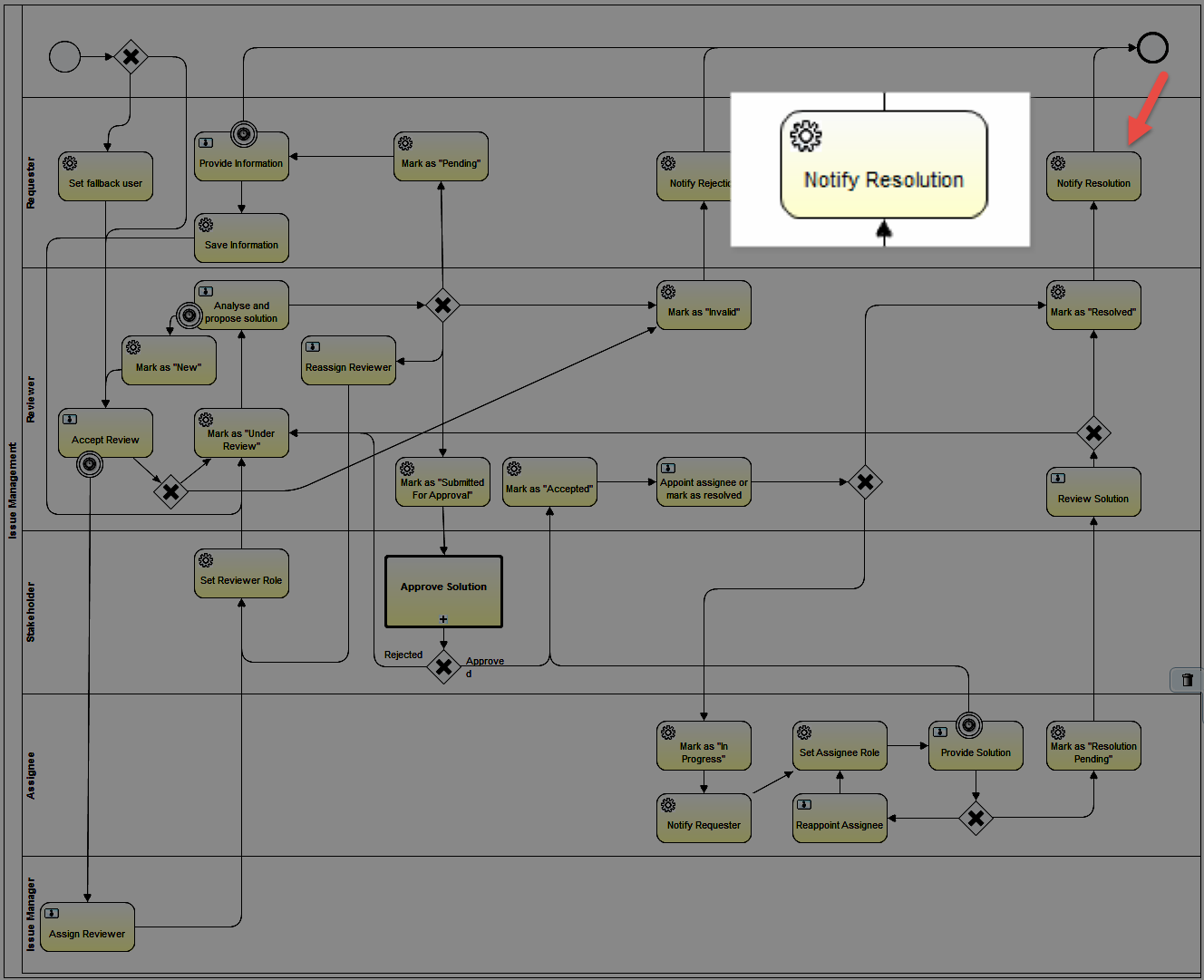

Step 37: Notify Resolution

Icon

For a step by step walk-through and configuration of this Workflow, go to: Issue Management Walk-Through

Icon

See also the user guide's section about Issue Management, go to: Issue Management

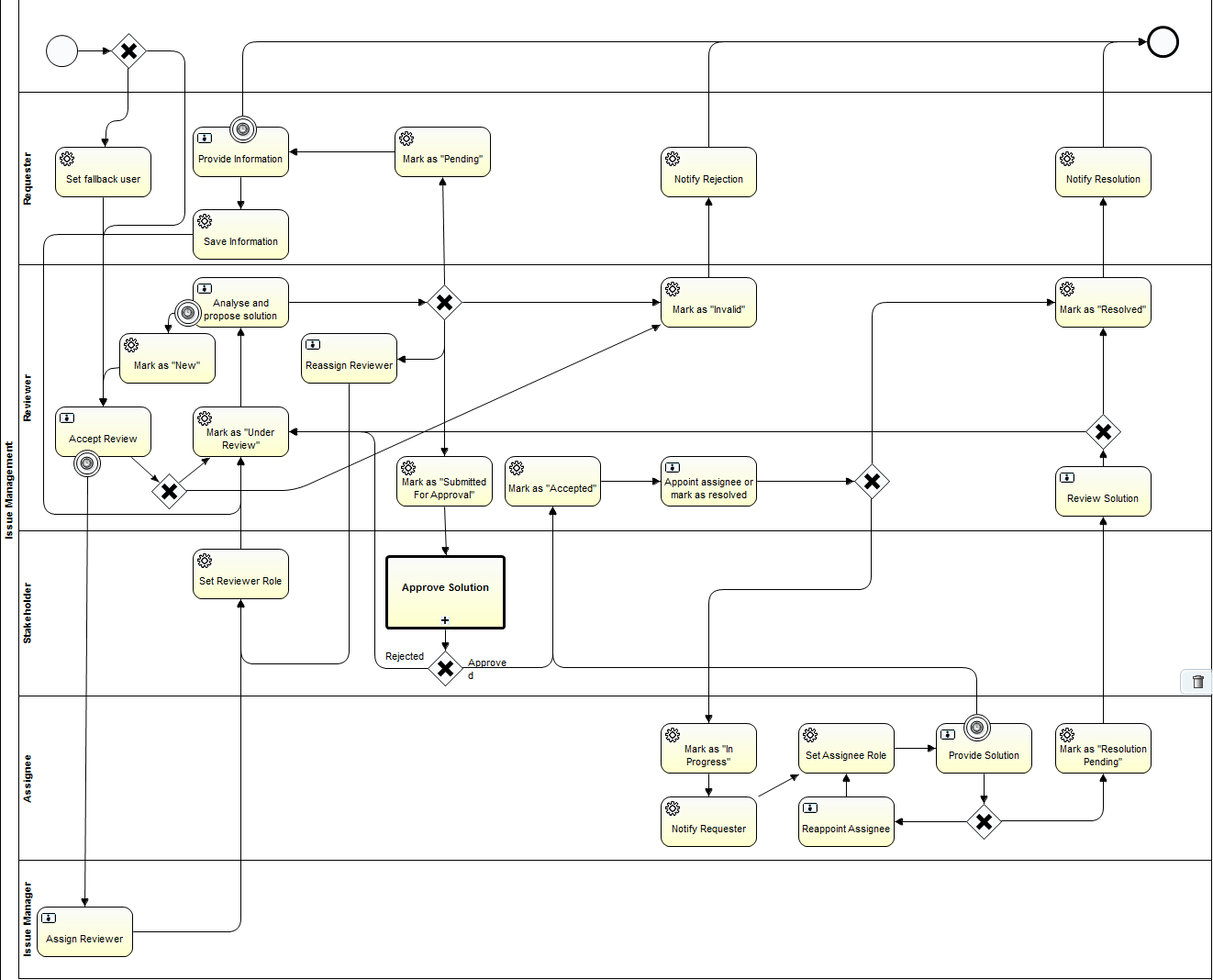

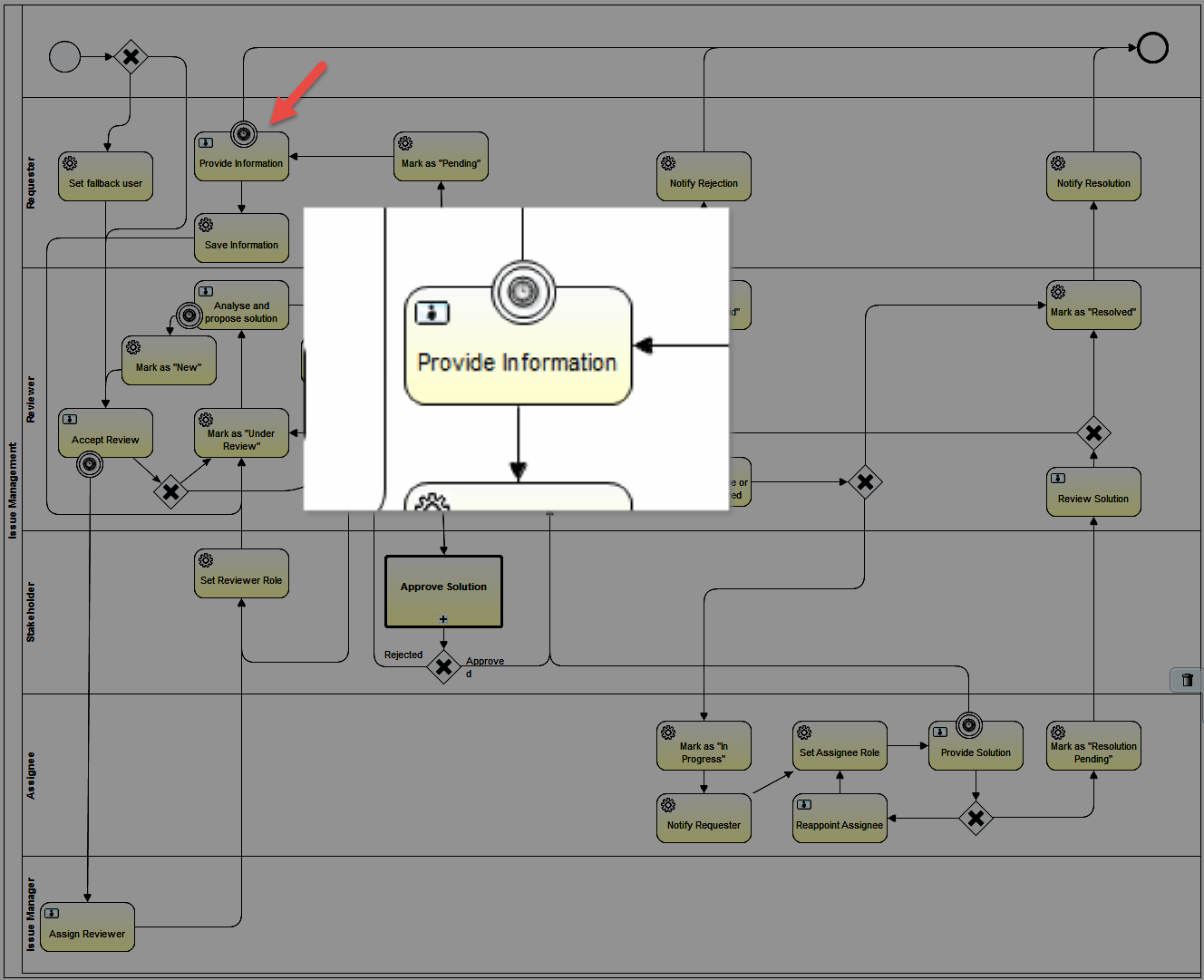

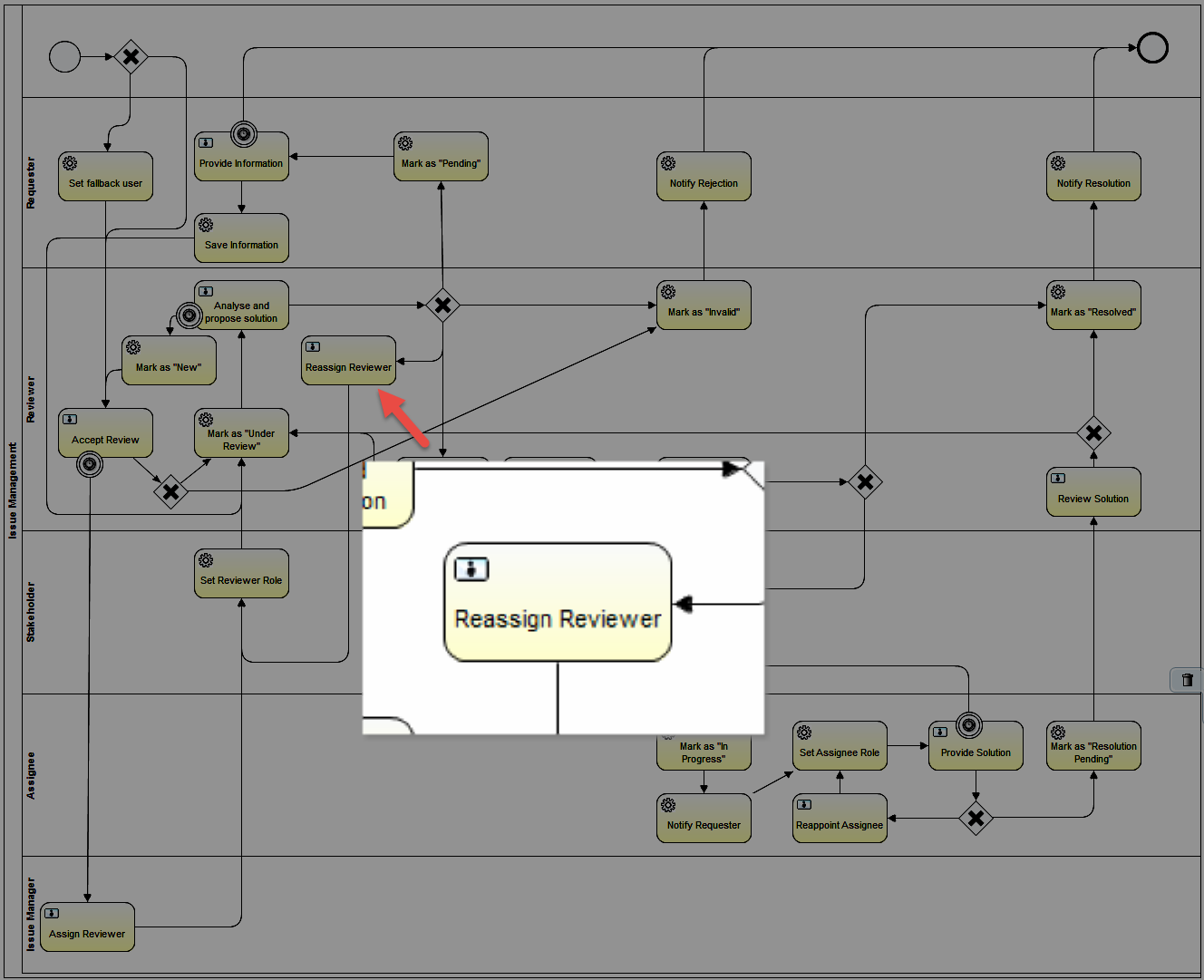

BPMN Diagram

Step 1: Create a new Activiti project and/or Activiti diagram

The creation of a new Activiti project/diagram is explained in the section on Setting Up Your Workflow Design Workbench

Step 2: Change the Identifier, Name and Description of the Process

We refer to the section Designing Your First Workflow From Scratch, subsection "Change the Identifier, Name and Description of the Process" for an explanation on how to change the identifier, name and description. For this case, name the workflow (e.g., the default would be "Issue Managment") and give it an identifier (e.g., the default name would be "issueManagment").

Step 3: Create a Pool and Lanes

We refer to the section Designing Your First Workflow From Scratch, subsection "Defining a Pool and Lanes" for an explanation on how to change the identifier, name and description. Start with all 4 needed lanes:

Start User (Requester)
Requester
Reviewer
Stakeholder
Assignee
Issue Manager

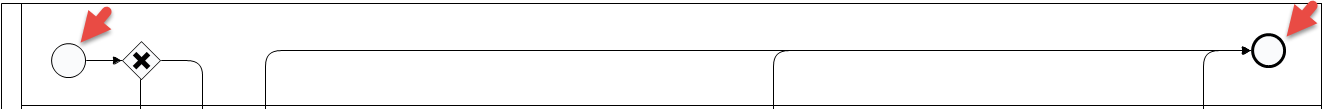

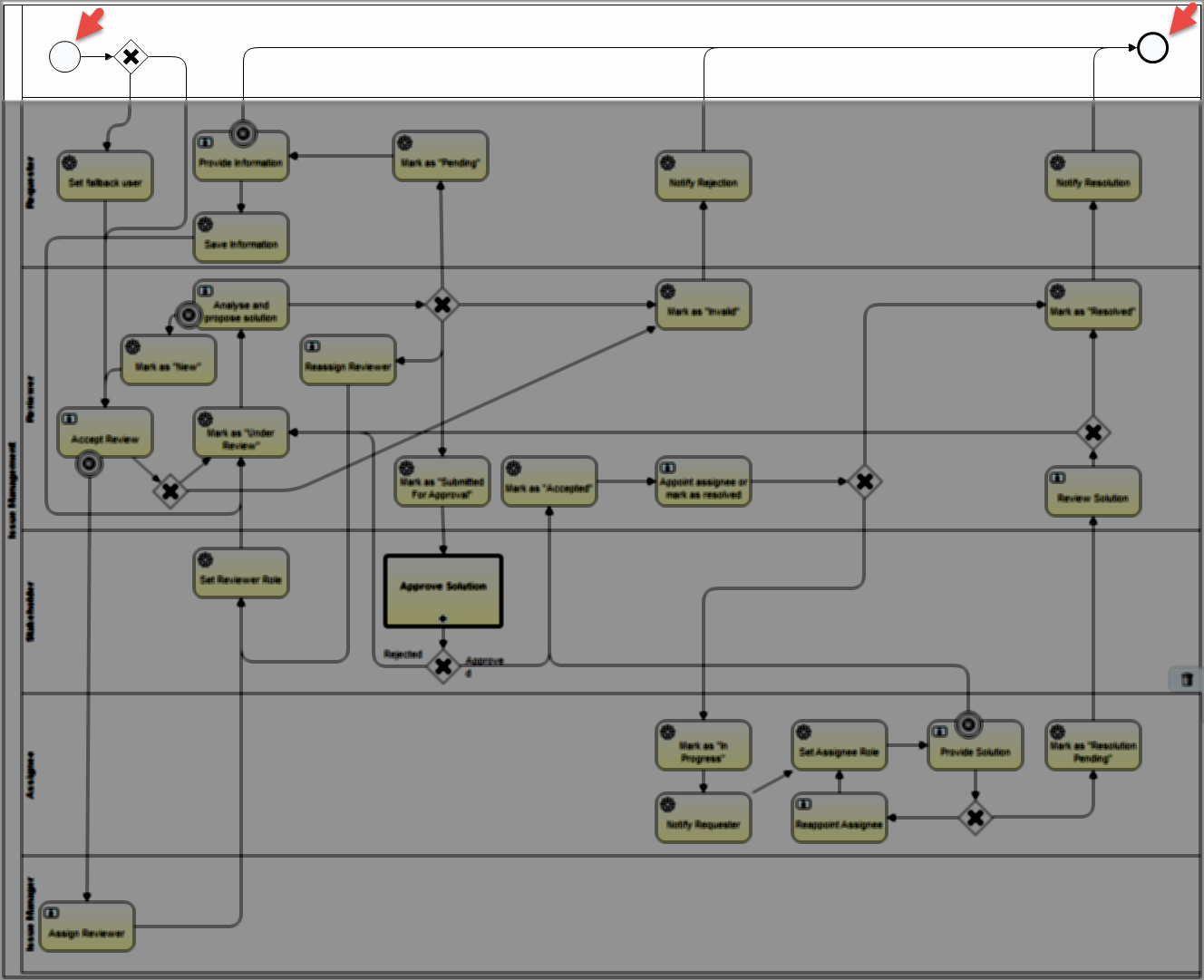

Step 4: Create a Start and End Event

Set the properties (of the start event):

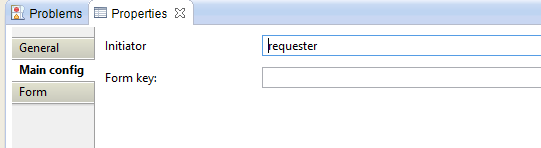

Start Event > Properties Tab > Main Config

Property	Value	Description
Initiator	requester

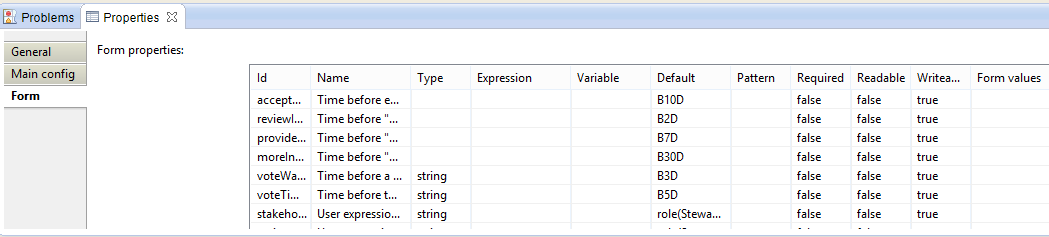

Start Event > Properties Tab > Form

Configuration variables:

Id	Name	Type	Default	Required	Readable	Writeable
acceptReviewDuration	Time before escalation of "Accept Review" task		B10D	false	false	true
reviewIssueDuration	Time before "Review Issue" task escalation		B2D	false	false	true

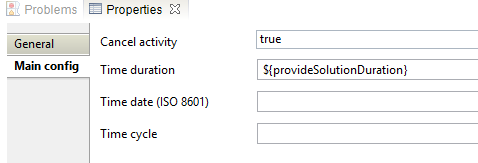

provideSolutionDuration	Time before "Provide Solution" task is escalated		B7D	false	false	true
moreInformationDuration	Time before "Provide more information" task is escalated		B30D	false	false	true
voteWarningTimeDuration	Time before a warning is send to the stakeholders for approving the proposed solution	string	B3D	false	false	true
voteTimeoutDuration	Time before the approve solution by the stakeholders step is continued		B5D	false	false	true
stakeholderUserExpression	User expression for stakeholders of the issue		role(Steward)	false	false	true
reviewerUserExpression	User expression for reviewers of the issue	string	role(Steward)	false	false	true
assigneeUserExpression	User expression for Assignees of the issue	string	role(Steward)	false	false	true
issueManagerUserExpression	User expression for Issue Managers of the issue	string	role(Issue Manager)	true	false	true
sendVotingActionEmails	Send an action email to users that are required to vote in the process	boolean	false	true	false	true

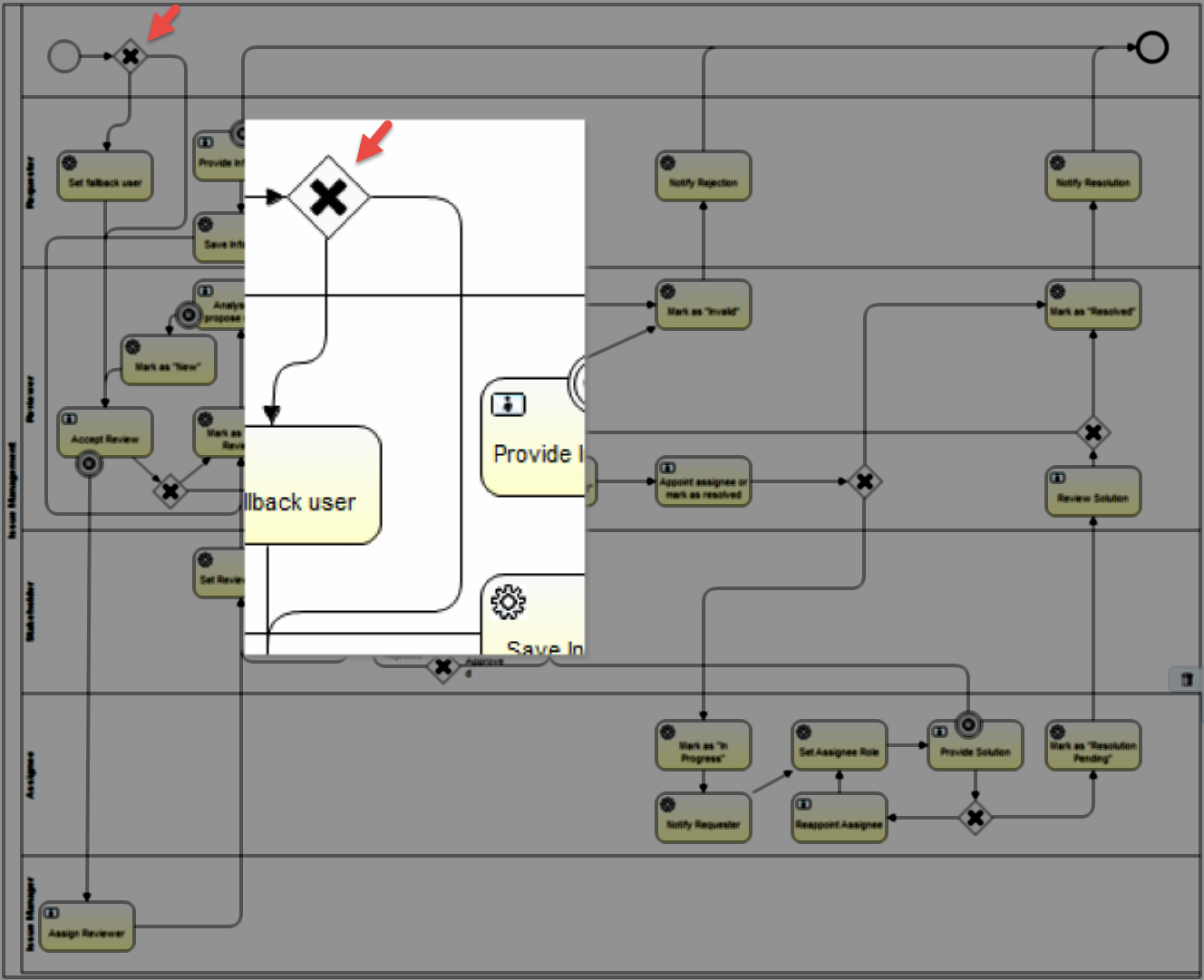

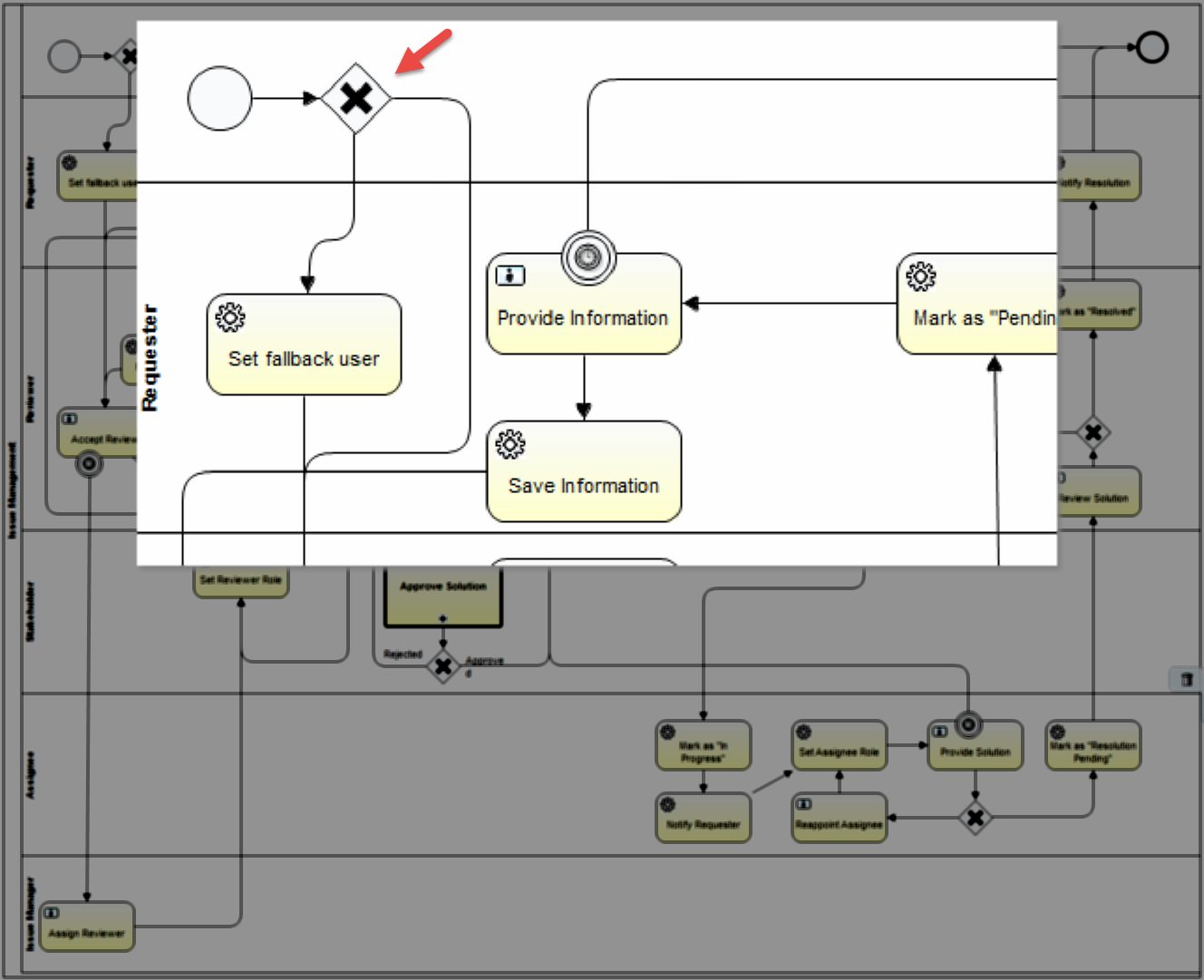

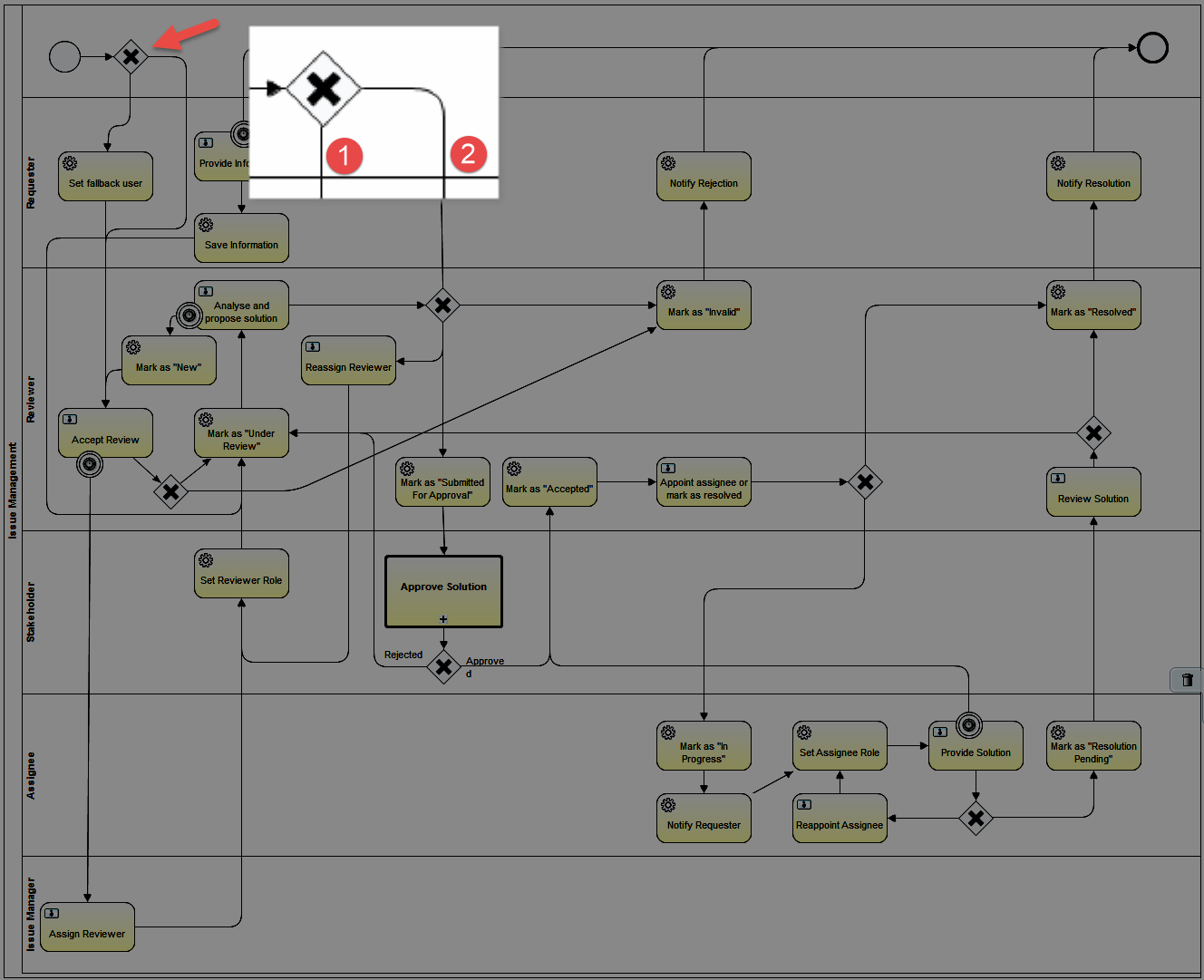

Step 5: Create an Exclusive Gateway

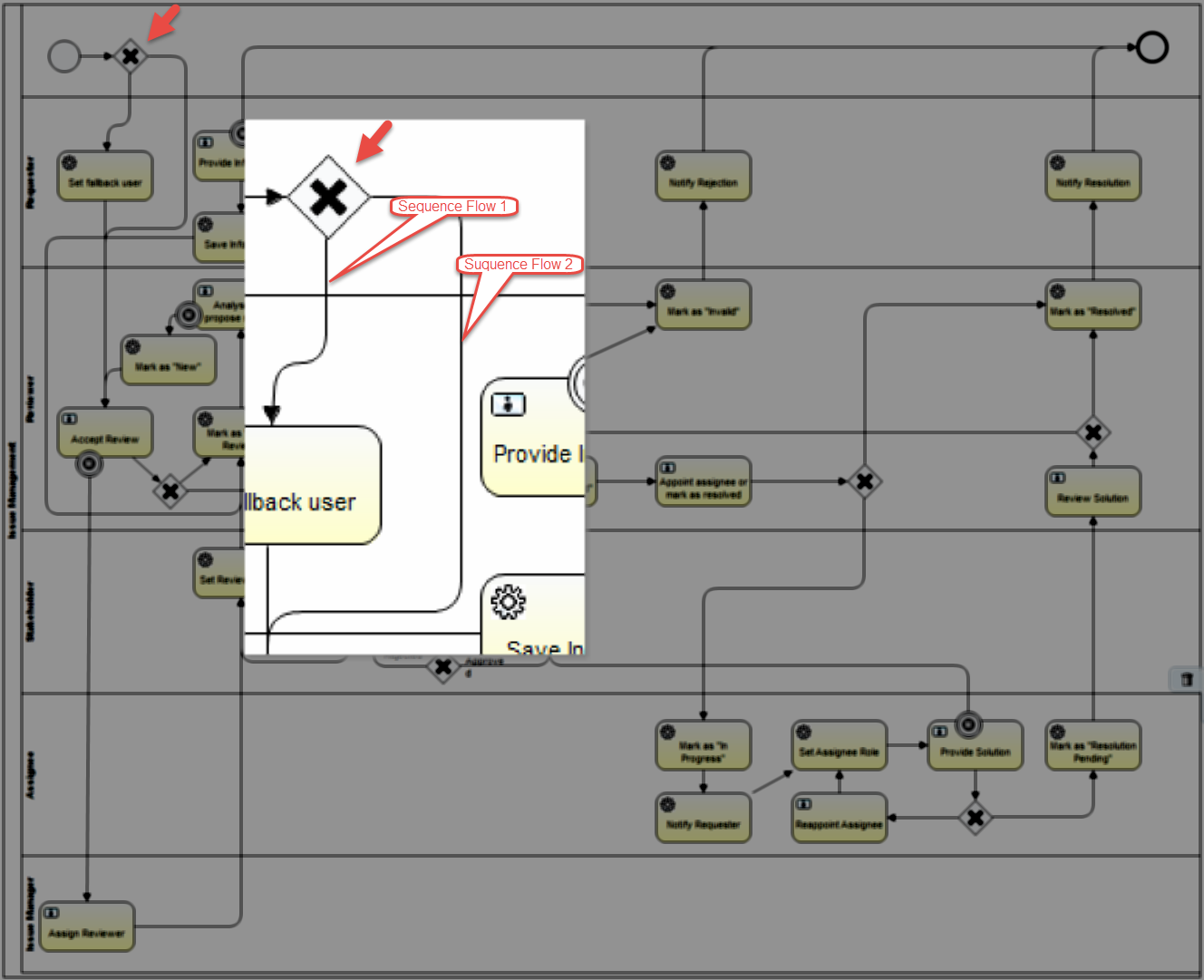

Create an exclusive gateway that will decide the path based on whether or not there is a reviewer assigned

Set the properties:

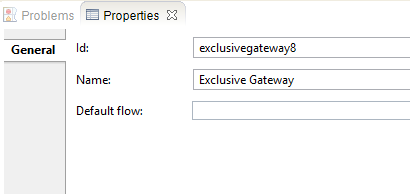

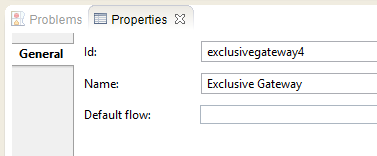

Exclusive Gateway > Properties Tab > General

(No properties to set except the Name)

Sequence Flow 1 > Properties Tab > Main config (If no reviewer is assigned)

Property	Value	Description
Label Width	0	There is no label, so the width is 0
Condition	${users.isEmpty(reviewerUserExpression)}	Will return "true" if there is no user assigned to variable. See UsersBean in API Doc

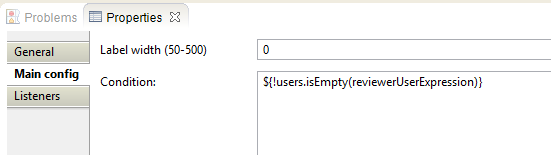

Sequence Flow 2 > Properties Tab > Main config (If no reviewer is assigned)

Property	Value	Description
Label Width	0	There is no label, so the width is 0
Condition	${!users.isEmpty(reviewerUserExpression)}	Will return "true" if there is a user assigned to variable. See UsersBean in API Doc

Icon

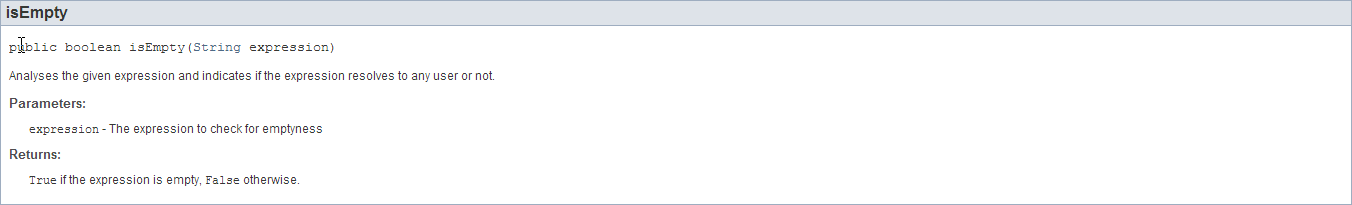

Information about IsEmpty() method can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.bean > Class: UsersBean

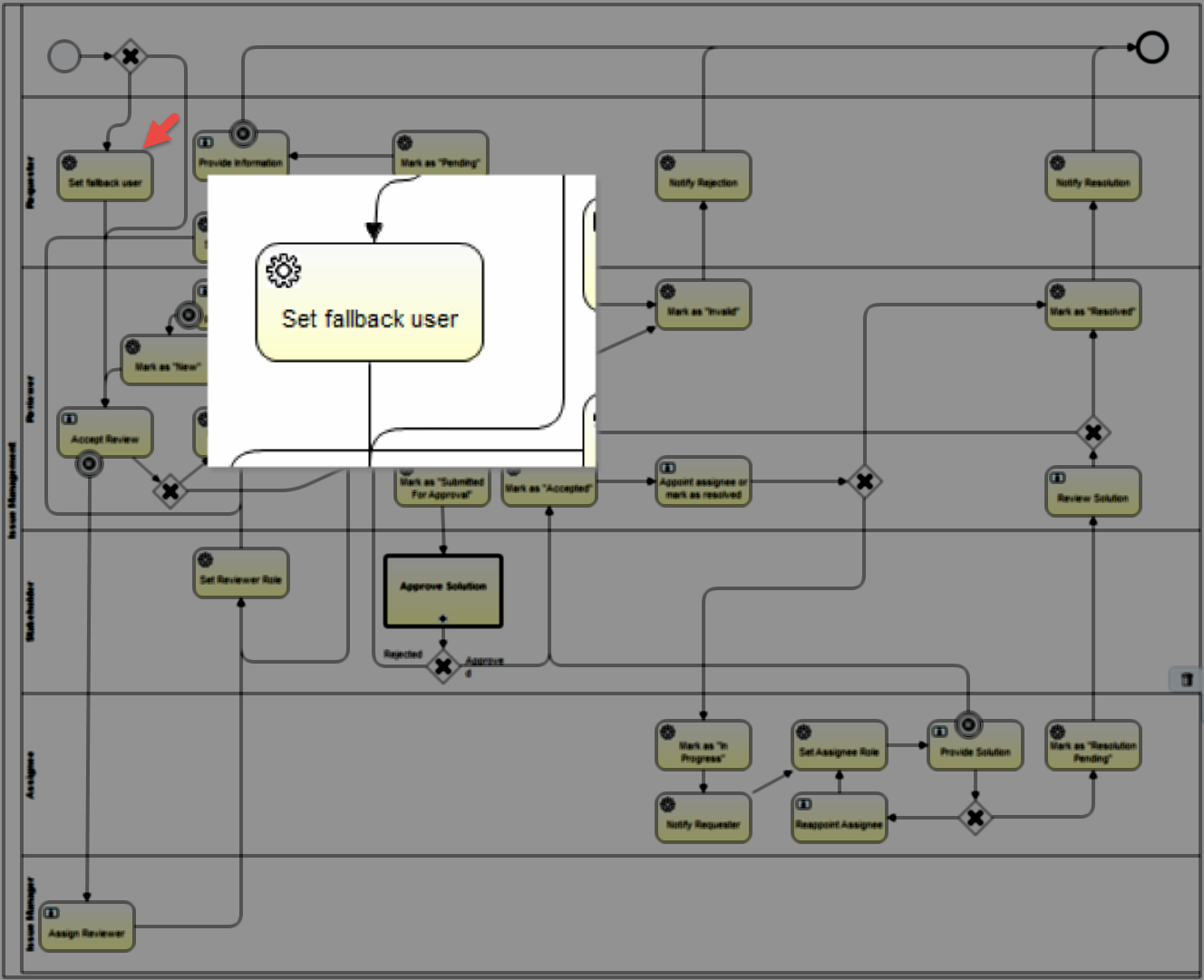

Step 6: Set Fallback User

Create a service task to assign the reviewer with a fallback user

Set the properties:

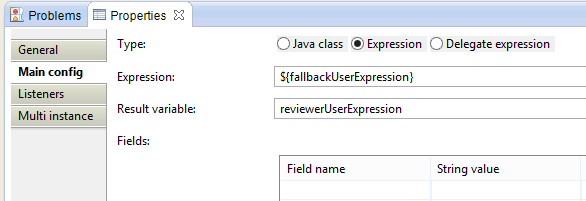

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Expression
Expression	${fallbackUserExpression}	See the configuration variables
Result variable	reviewerUserExpression	The result variable of the service task

Step 7: Accept Review

Create a user task to accept or reject the review

Set the properties:

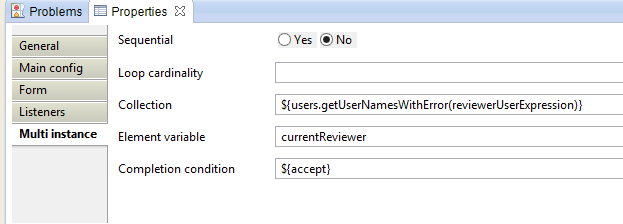

User Task > Properties Tab > Multi Instance

Property	Value	Description
Sequential	No
Collection	${users.getUserNamesWithError(reviewerUserExpression)}	Method of UsesBean creats a list based on the user group expression. This is the list that will be looped through.
Element variable	currentReviewer	The item variable of the loop. A form will be created for each "currentReviewer"
Completion condition	${accept}

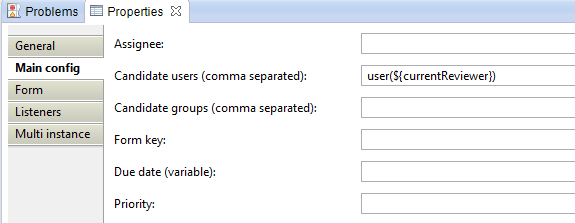

User Task > Properties Tab > Main config

Property	Value	Description
Candidate users	user(${currentReviewer})	The output from the multi instance loop

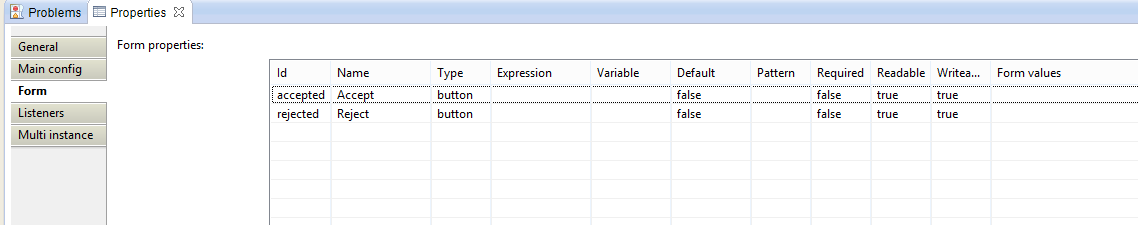

User Task > Properties Tab > Form

Id	Name	Type	Default	Required	Readable	Writeable	Description
accept	Accept	button	false	false	true	true
reject	Reject	button	false	false	true	true

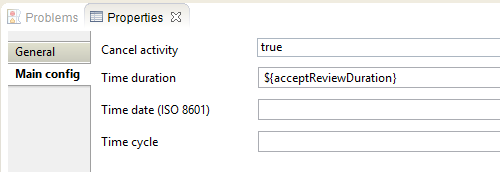

Timer Boundary Event > Properties Tab > Main Config

Property	Value	Description
Cancel activity	true
Time duration	${acceptReviewDuration}	The amount of time before the connected sequence flow triggers. See the configuration variables

Icon

For more information about Duration Variables, go to: Managing Workflows > Duration variables

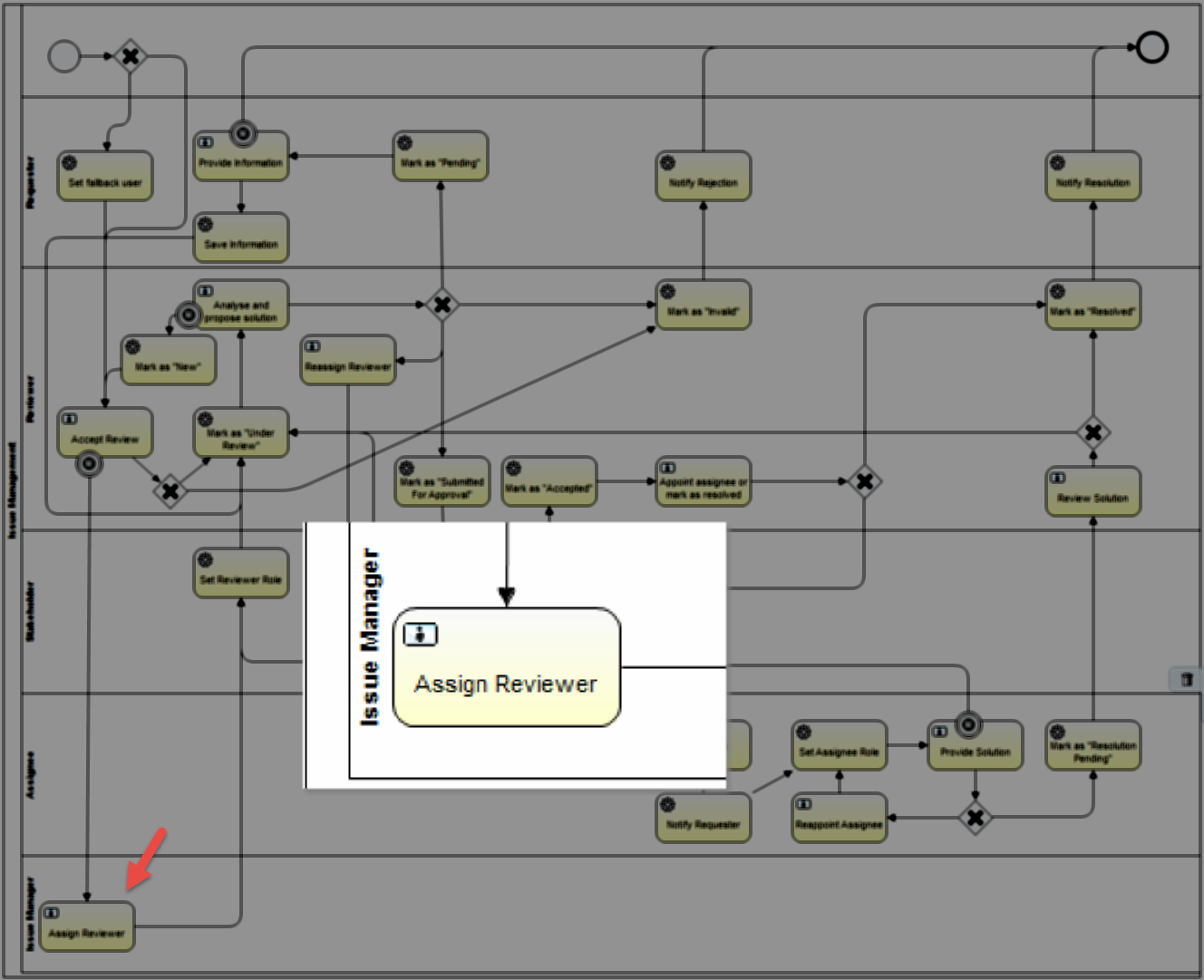

Step 8: Assign Reviewer

Create a user task for the Issue Manager to assign a reviewer if the current Reviewer doesn't respond.

Set the properties:

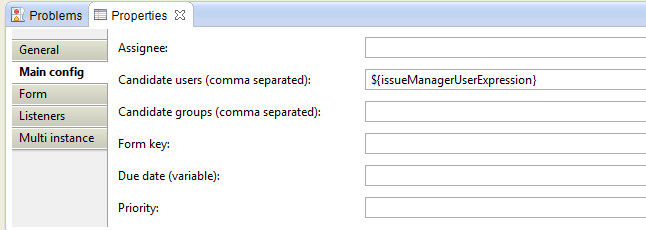

User Task > Properties Tab > Main Config

Property	Value	Description
Candidate Users	${issueManagerUserExpression}	See start form configuration variables

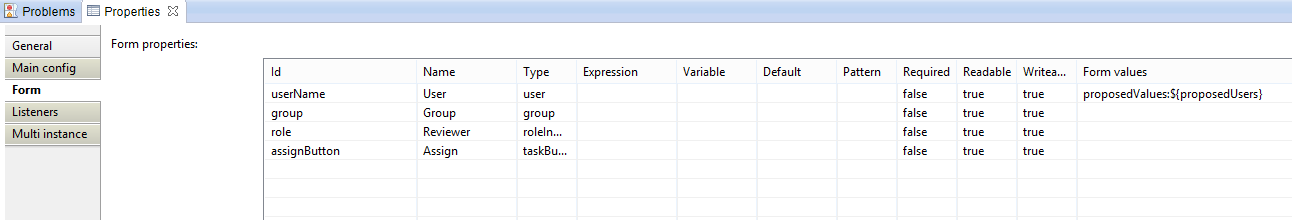

User Task > Properties Tab > Form

Id	Name	Type	Required	Readable	Writeable	Form Values
userName	User	user	false	true	true	proposedValues:${proposedUsers}
group	Group	group	false	true	true
role	Reviewer	roleInCommunity	false	true	true
assignButton	Assign	taskButton	false	true	true

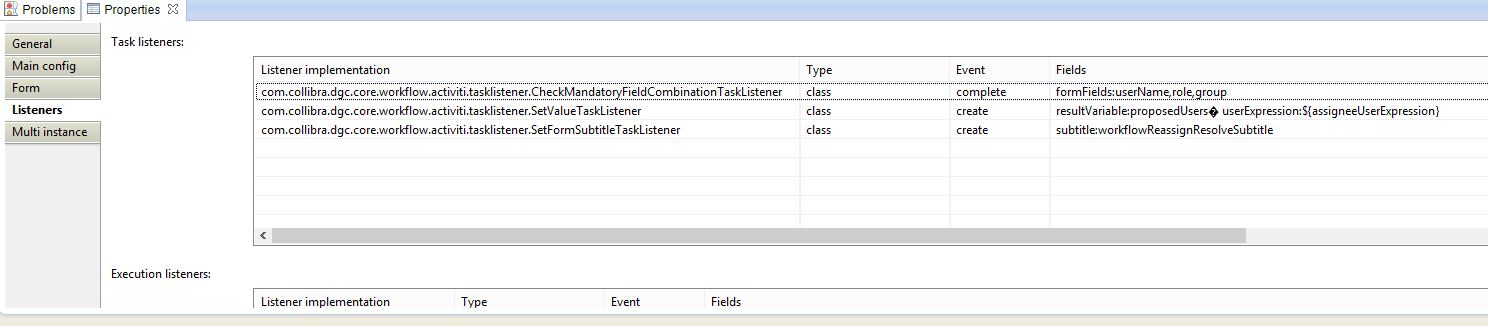

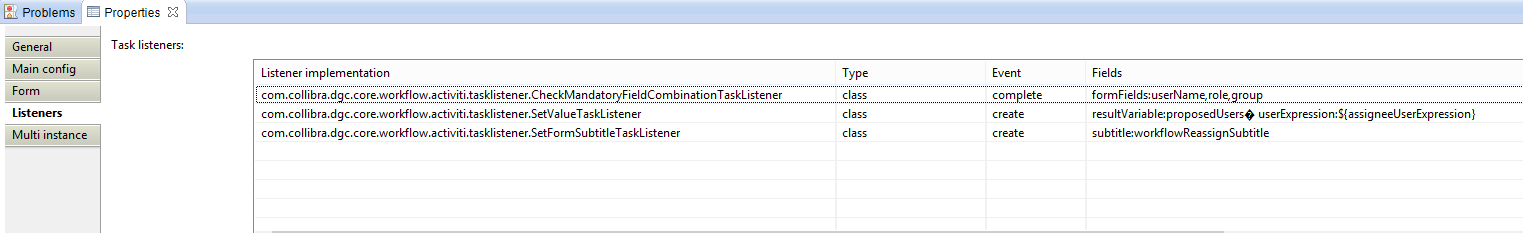

User Task > Properties Tab > Listeners

Listener implementation	Type	Event	Fields	Description
com.collibra.dgc.core.workflow.activiti.tasklistener.CheckMandatoryFieldCombinationTaskListener	class	complete	see table A	This `Tasklistener` checks if the configured combination of form property input fields have at least one value field filled in. If not a error message will be shown to the user
com.collibra.dgc.core.workflow.activiti.tasklistener.SetValueTaskListener	class	create	see table B	This `TaskListener` can be used to evaluate expressions or user expressions and store the parsed value in a task LOCAL variable. This means as soon as you exit the current user task, the variable will not be available anymore.
com.collibra.dgc.core.workflow.activiti.tasklistener.SetFormSubtitleTaskListener	class	create	see table C	This `TaskListener` sets a given string value as the subtitle for the form to be displayed on the task. With this you can tweak the form presented to the user with custom subtitles.

table A: CheckMandatoryFieldCombinationTaskListener

Field Name	String Value	Expression	Description
formFields	userName,role,group		a csv of form property ids to do the mandatory check on.

table B: SetValueTaskListener

Field Name	String Value	Expression	Description
resultVariable	proposedUsers		the name of the variable to store the result in.
userExpression		${reviewerUserExpression}	a csv of user expressions that will be evaluated to a comma separated list of user names and stored in the given `resultVariable`. Only one of `valuesExpression` or `userExpression` is expected and will be evaluated.

table C: SetFormSubtitleTaskListener

Field Name	String Value	Expression	Description
subtitle	workflowReassignSubtitle		the string value for the form subtitle.

Icon

Information about the SetValueTaskListener class can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.tasklistener > Class: SetValueTaskListener

Icon

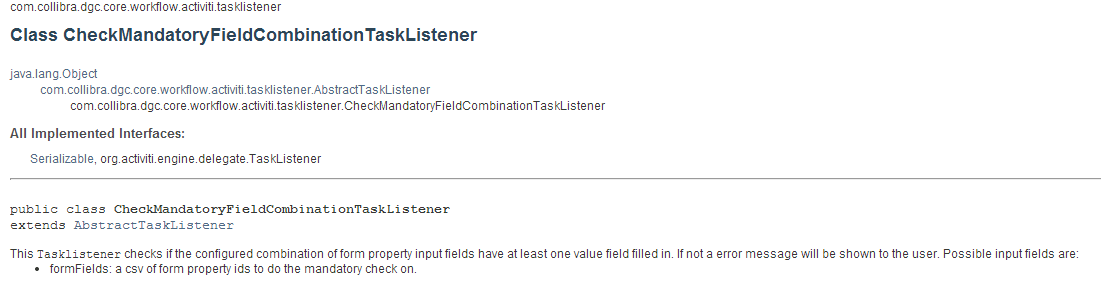

Information about the CheckMandatoryFieldCombinationTaskListener class can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.tasklistener > Class: CheckMandatoryFieldCombinationTaskListener

Icon

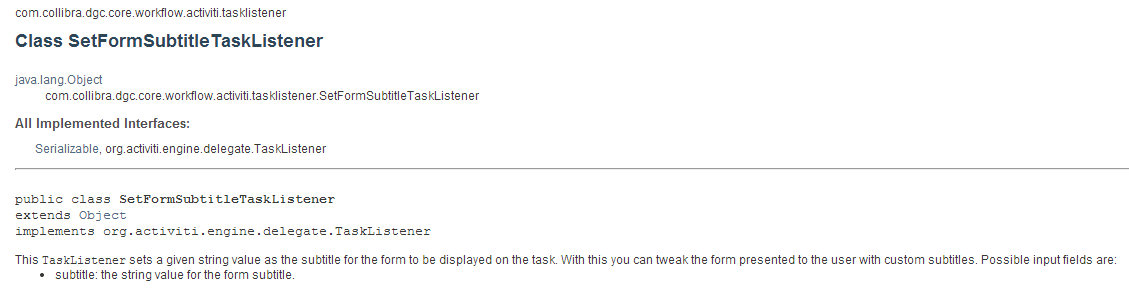

Information about the SetFormSubtitleTaskListenerclass can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.tasklistener > Class: SetFormSubtitleTaskListener

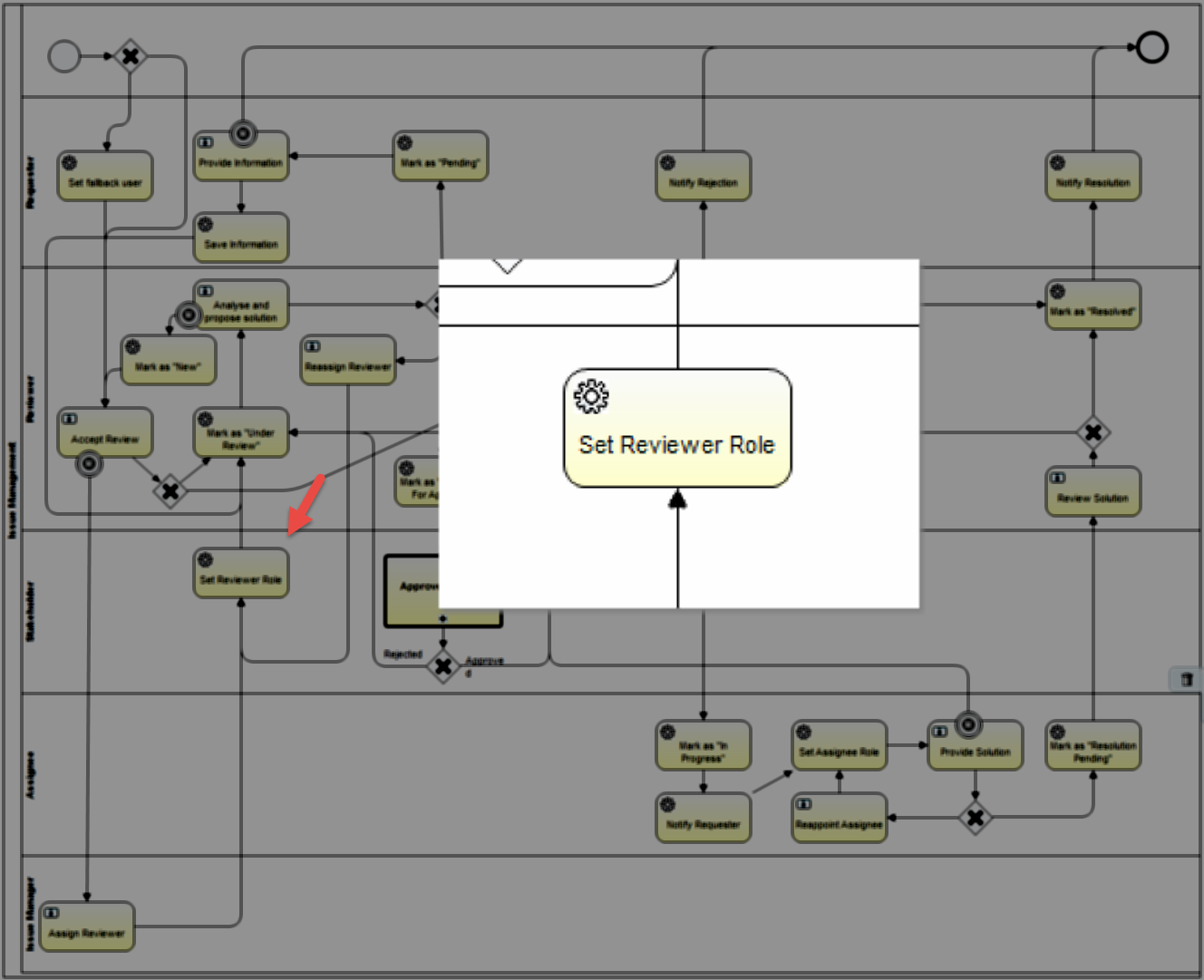

Step 9: Set Reviewer Role

Create a service task to set the users picked by the Issue Manager as the Reviewer.

Set the properties:

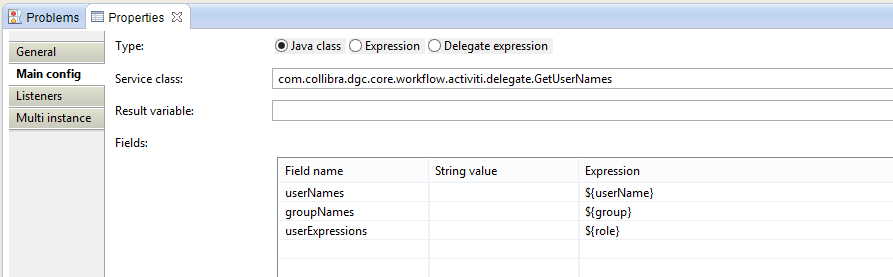

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.GetUserNames	The GetUserNames delegate class

Fields:

Field name	Expression	Description
userNames	${userName}	a CSV of usernames you want to have included in the result
groupNames	${group}	a CSV of groupnames you want to have evaluated and included in the result
userExpressions	${role}	a CSV of user expressions you want to have evaluated and included in the result

The default output variable is 'assembledUserNames'. It stores the CSV of user names.

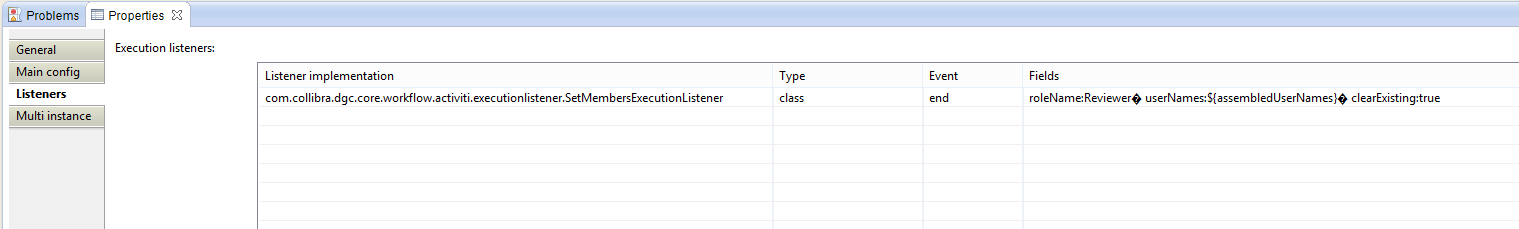

Service Task > Properties Tab > Listeners

Listener implementation	Type	Event	Fields	Description
com.collibra.dgc.core.workflow.activiti.executionlistener.SetMembersExecutionListener	class	complete	see table A	This `ExecutionListener` will set the specified members on the business item of the workflow

table A:

Field Name	String Value	Expression	Description
roleName	Reviewer		the name of the role. You can only specify one role to use.
userNames		${assembledUserNames}	a csv of usernames you want to set a member for.
clearExisting	true		if 'true' all existing members on the curent business item will be deleted prior to adding new ones (OPTIONAL). If empty no clearing is performed.

Icon

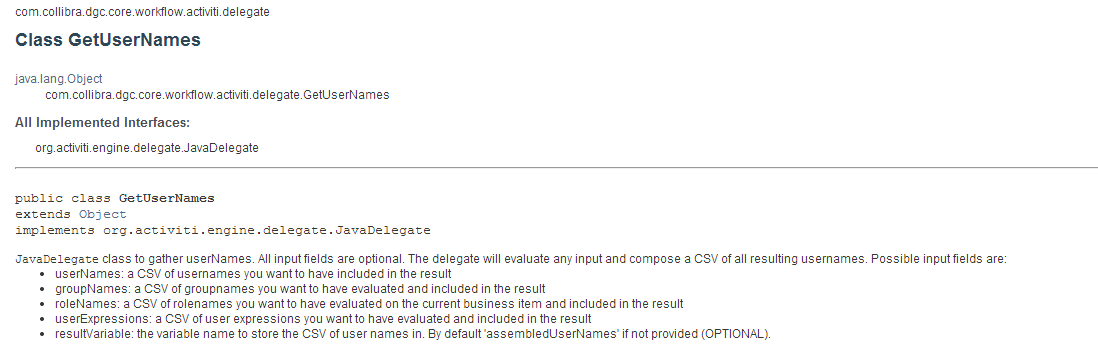

Information about the GetUserNames delegate can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.delgate > Class: GetUserNames

Icon

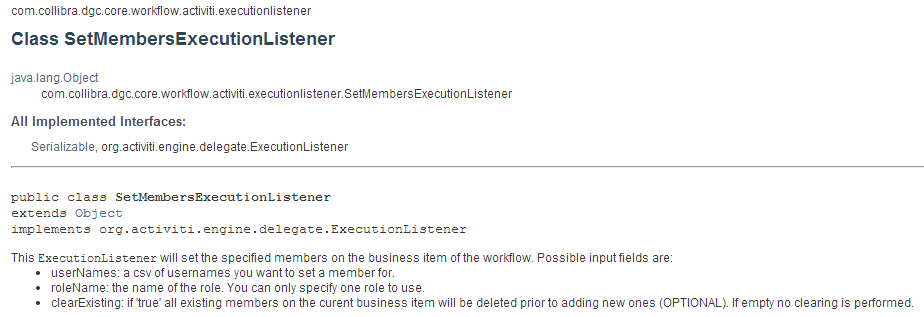

Information about the SetMembersExecutionListener class can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.executionlistener > Class: GetUserNames

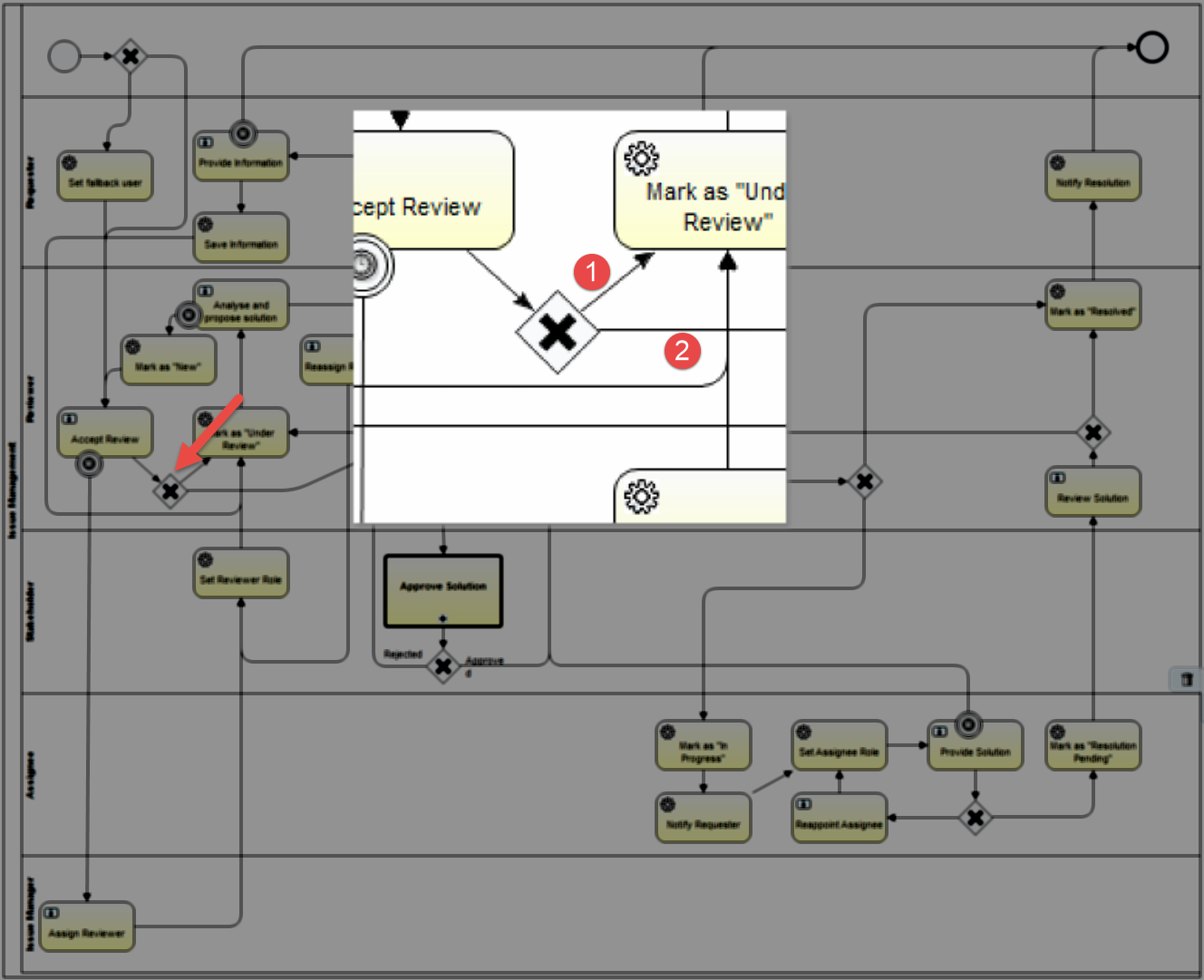

Step 10: Create a Second Exclusive Gateway

Set the properties:

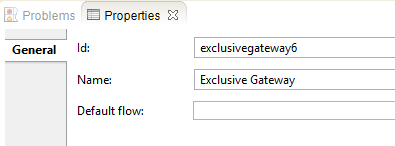

Exclusive Gateway > Properties Tab > General

(No properties to set except the Name)

Sequence Flow 1 > Properties Tab > Main config (If reviewer accepts)

Property	Value	Description
Label Width	0	There is no label, so the width is 0
Condition	${accept}	Will return "true" and follow this path if the Reviewer presses the accept button. See UsersBean in API Doc

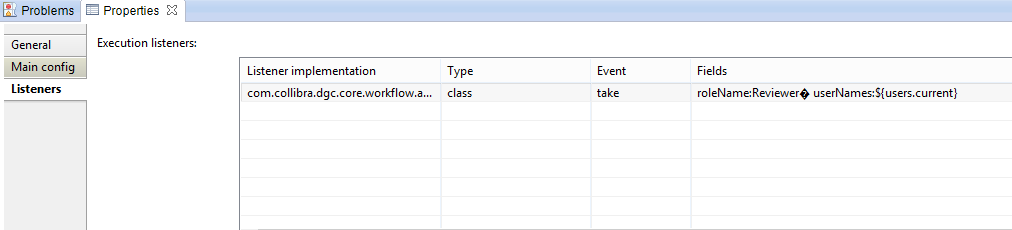

Sequence Flow 1 > Properties Tab > Listeners

Listener implementation	Type	Event	Fields	Description
com.collibra.dgc.core.workflow.activiti.executionlistener.SetMembersExecutionListener	class	complete	see table A	This ExecutionListener will set the specified members on the business item of the workflow

table A:

Field Name	String Value	Expression	Description
roleName	Reviewer		the name of the role. You can only specify one role to use.
userNames		${users.current}	a csv of usernames you want to set a member for. Sets the current user as the Reviewer

Sequence Flow 2 > Properties Tab > Main config (If no reviewer is assigned)

Property	Value	Description
Label Width	0	There is no label, so the width is 0

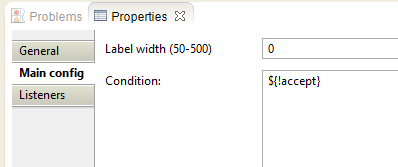

Condition	${!accept}	Will return "true" and follow this path if the Reviewer presses the reject button. See UsersBean in API Doc

Step 11: Mark as "Under Review"

Create a service task to change the status of the asset to Under Review.

Set the properties:

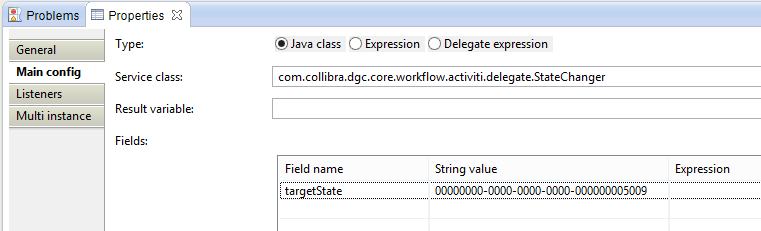

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	JavaDelegate for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005020		the id of the target status term.

Icon

Information about the GetUserNames delegate can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.delgate > Class: StateChanger

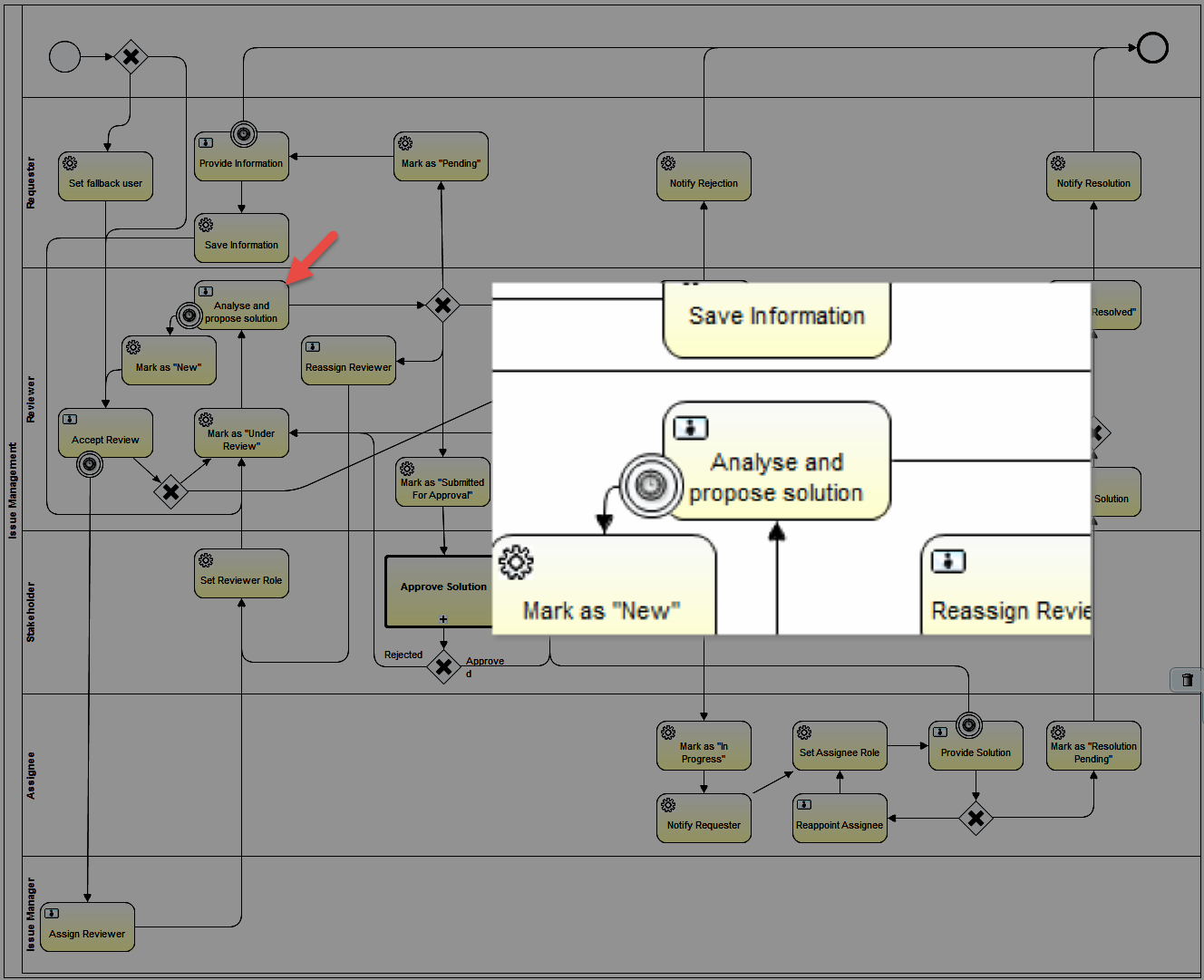

Step 12: Analyse and Propose Solution

Create a user task to create a form for the Reviewer

Set the properties:

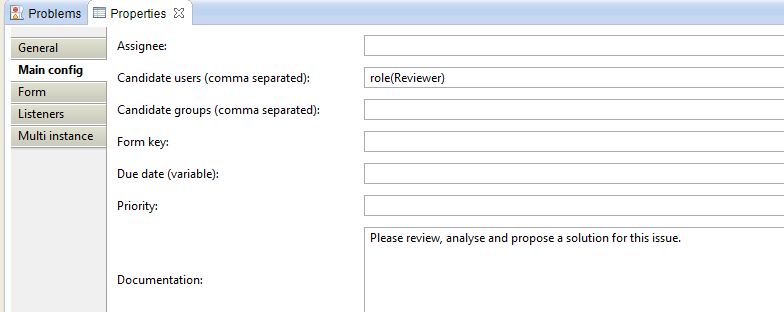

User Task > Properties Tab > Main Config

Property	Value	Description
Candidate User	role(Reviewer)	Set the role for the user task
Documentation	Please review, analyse and propose a solution for this issue.	This provides addition information to the user on the yellow task ribbon

User Task > Properties Tab > Form

Id	Name	Type	Default	Required	Readable	Writeable
reassign	Reassign Reviewer	button		false	true	true
moreInformation	More Information	button	false	false	true	true
rejected	Invalid Issue	button	false	false	true	true
accepted	Request Approval	button	false	false	true	true

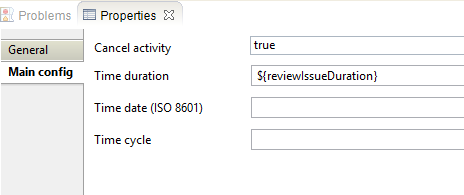

Timer Boundary Event > Properties Tab > Main Config

Property	Value	Description
Cancel activity	true
Time duration	${reviewIssueDuration}	The amount of time before the connected sequence flow triggers. See the configuration variables

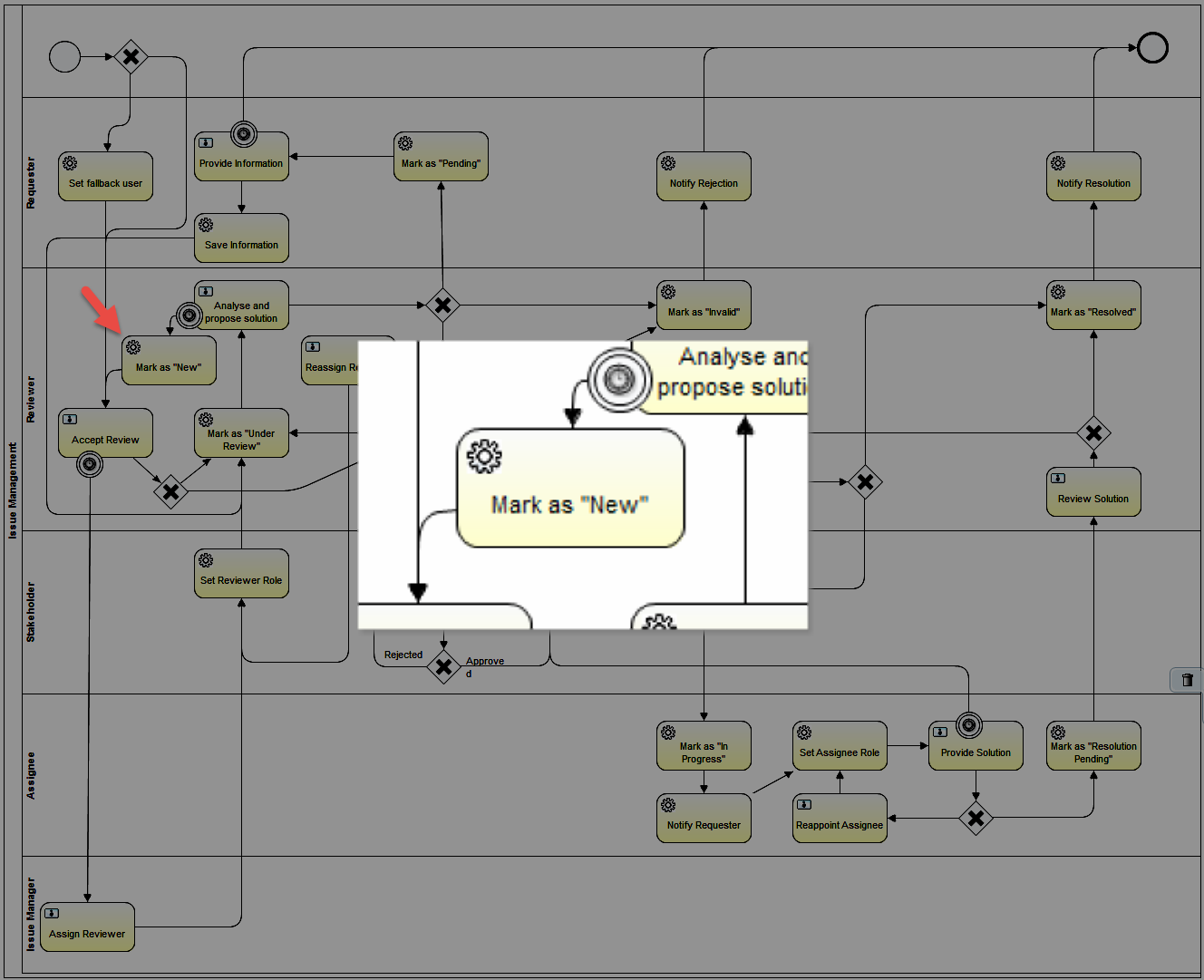

Step 13: Mark as "New"

Create a service task that changes the state of the asset to New

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	JavaDelegate for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005058		the id of the target status term.

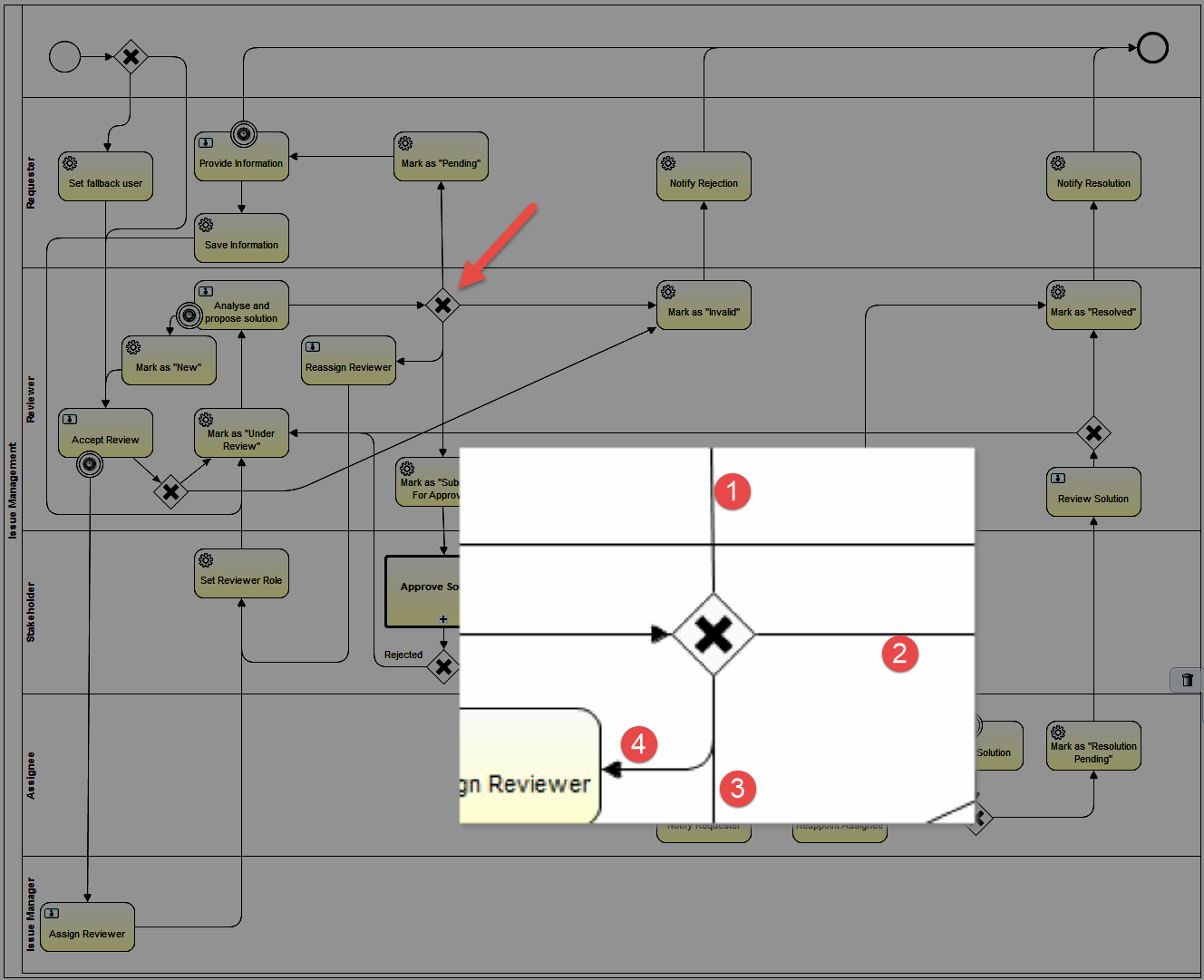

Step 14: Create a Third Exclusive Gateway

Create a 4-way exclusive gateway based on the response of a user task form.

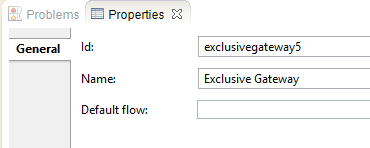

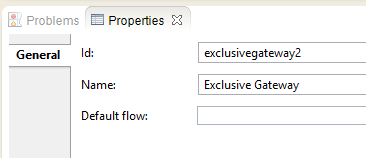

Exclusive Gateway > Properties Tab > General

(No properties to set except the Name)

Sequence Flow 1 > Properties Tab > Main config (If reviewer presses More Information button)

Property	Value	Description
Label Width	0	There is no label, so the width is 0
Condition	${moreInformation}	Will return "true" and follow this path if the Reviewer presses the More Information button.

Sequence Flow 2 > Properties Tab > Main config (If reviewer presses More Information button)

Property	Value	Description
Label Width	0	There is no label, so the width is 0

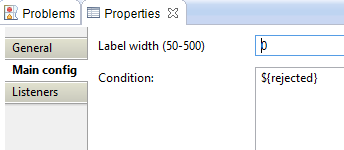

Condition	${rejected}	Will return "true" and follow this path if the Reviewer presses the Reject button.

Sequence Flow 3 > Properties Tab > Main config (If reviewer presses More Information button)

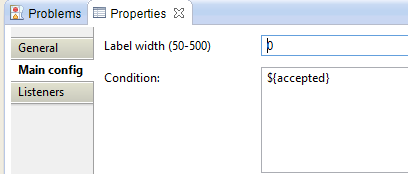

Property	Value	Description
Label Width	0	There is no label, so the width is 0
Condition	${accepted}	Will return "true" and follow this path if the Reviewer presses the Accept button.

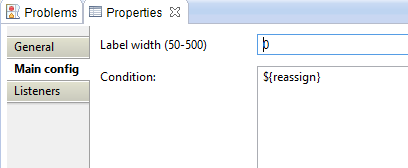

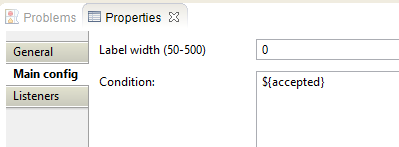

Sequence Flow 4 > Properties Tab > Main config (If reviewer presses More Information button)

Property	Value	Description
Label Width	0	There is no label, so the width is 0
Condition	${reassign}	Will return "true" and follow this path if the Reviewer presses the Reassign button.

Step 15: Reassign Reviewer

Create a user task to set the Reviewer.

User Task > Properties Tab > Main Config

Property	Value	Description
Candidate Users	role(Reviewer)
Documentation	Assign a new reviewer for this issue.	The extra description on the yellow ribbon task notification

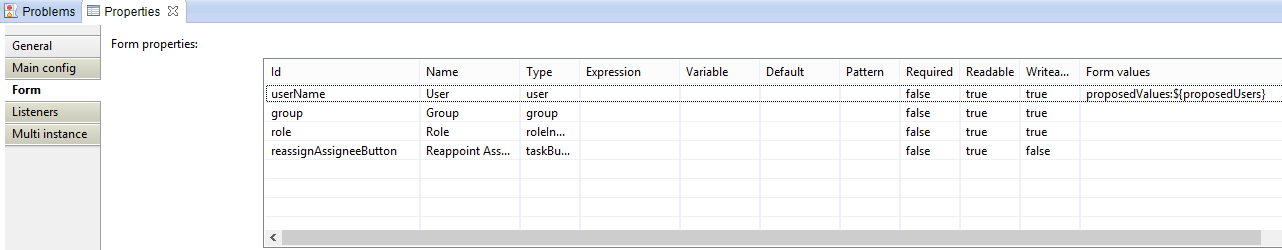

User Task > Properties Tab > Form

Id	Name	Type	Required	Readable	Writeable	Form Values
userName	User	user	false	true	true	proposedValues:${proposedUsers}
group	Group	group	false	true	true
role	Reviewer	roleInCommunity	false	true	true
reassignReviewerButton	Reassign	taskButton	false	true	true

User Task > Properties Tab > Listeners

Listener implementation	Type	Event	Fields	Description
com.collibra.dgc.core.workflow.activiti.tasklistener.CheckMandatoryFieldCombinationTaskListener	class	complete	see table A	This `Tasklistener` checks if the configured combination of form property input fields have at least one value field filled in. If not a error message will be shown to the user
com.collibra.dgc.core.workflow.activiti.tasklistener.SetValueTaskListener	class	create	see table B	This `TaskListener` can be used to evaluate expressions or user expressions and store the parsed value in a task LOCAL variable. This means as soon as you exit the current user task, the variable will not be available anymore.
com.collibra.dgc.core.workflow.activiti.tasklistener.SetFormSubtitleTaskListener	class	create	see table C	This `TaskListener` sets a given string value as the subtitle for the form to be displayed on the task. With this you can tweak the form presented to the user with custom subtitles.

table A: CheckMandatoryFieldCombinationTaskListener

Field Name	String Value	Expression	Description
formFields	userName,role,group		a csv of form property ids to do the mandatory check on.

table B: SetValueTaskListener

Field Name	String Value	Expression	Description
resultVariable	proposedUsers		the name of the variable to store the result in.
userExpression		${reviewerUserExpression}	a csv of user expressions that will be evaluated to a comma separated list of user names and stored in the given `resultVariable`. Only one of `valuesExpression` or `userExpression` is expected and will be evaluated.

table C: SetFormSubtitleTaskListener

Field Name	String Value	Expression	Description
subtitle	workflowReassignSubtitle		the string value for the form subtitle.

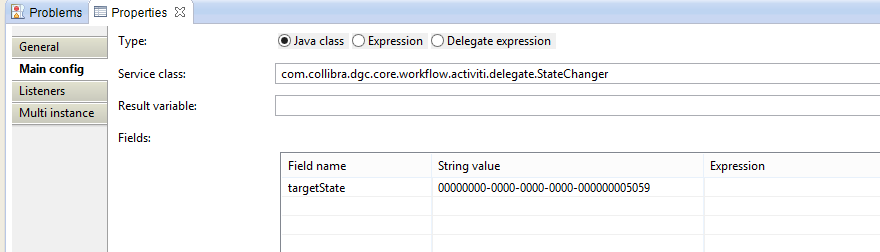

Step 16: Mark as "Pending"

Create a service task to change the status of the asset to Pending.

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	JavaDelegate for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005059		the id of the target status term.

Step 17: Provide Information

Create a user task that prompts a form to the Requester to provide more information about the issue.

Set the properties:

User Task > Properties Tab > Main config

Property	Value	Description
Candidate users	role(Requester)	The candidate user
Documentation	Please provide more information about this issue.	Additional text that displays on the yellow task notification ribbon

User Task > Properties Tab > Form

Id	Name	Type	Default	Required	Readable	Writeable	Form Values	Description
info	Additional Information	textarea		true	true	true
taskButton	Provide Information	taskButton	false	false	true	true		This is the button that appears on the yellow task notification ribbon

Timer Boundary Event > Properties Tab > Main Config

Property	Value	Description
Cancel activity	true
Time duration	${moreInformationDuration}	The amount of time before the connected sequence flow triggers. See the configuration variables

Step 18: Save Information

Create a service task to add a comment

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.AddComment	`JavaDelegate` for adding comments to the current business item. It also supports adding comments for guest users

Fields:

Field name	String value	Expression	Description
comment		${info}	The string representation of the actual comment that needs to be added. By default the comment will be added to the current business item using the current user.
guestUserExpression	role(Requester)		The expression evaluating to a guest user that is adding this comment. This overrides the default behavior so that this comment is not added by the current user, but by the specified guest user instead

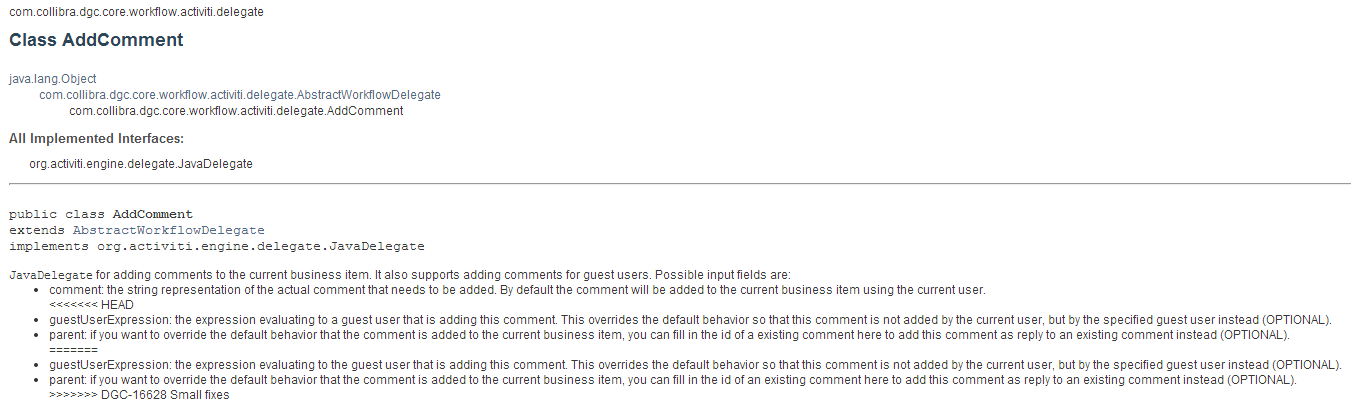

Icon

Information about the AddComment delegate can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.delgate > Class: AddComment

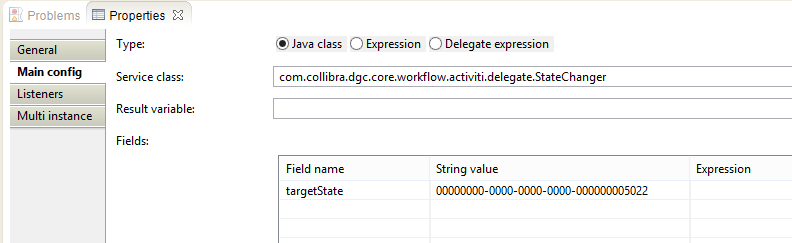

Step 19: Mark as "Invalid"

Create a service task to change the state of the asset to Invalid.

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	JavaDelegate for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005022		the id of the target status term.

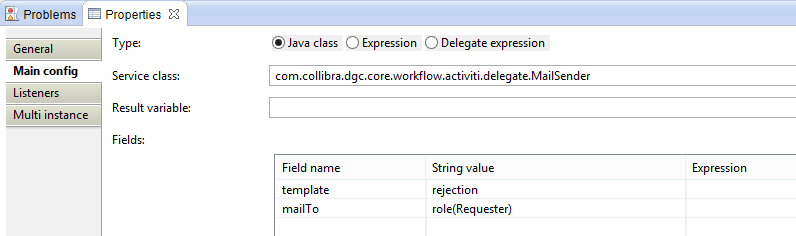

Step 20: Notify Rejection

Create a service task to send an email to the Requester

Create

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.MailSender	JavaDelegate used for sending mails from the workflow.

Fields:

Field name	String value	Expression	Description
template	rejection		the name of the template that should be used to generate the mail.
mailTo	role(Requester)		user expressions for users that should receive the action mail.

Icon

Information about the MailSender delegate can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.delgate > Class: MailSender

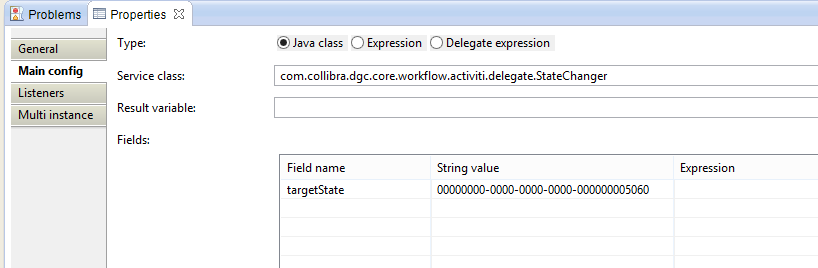

Step 21: Mark as "Submitted For Approval"

Create a service task to change the status of the asset to Submitted For Approval.

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	JavaDelegate for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005060		the id of the target status term.

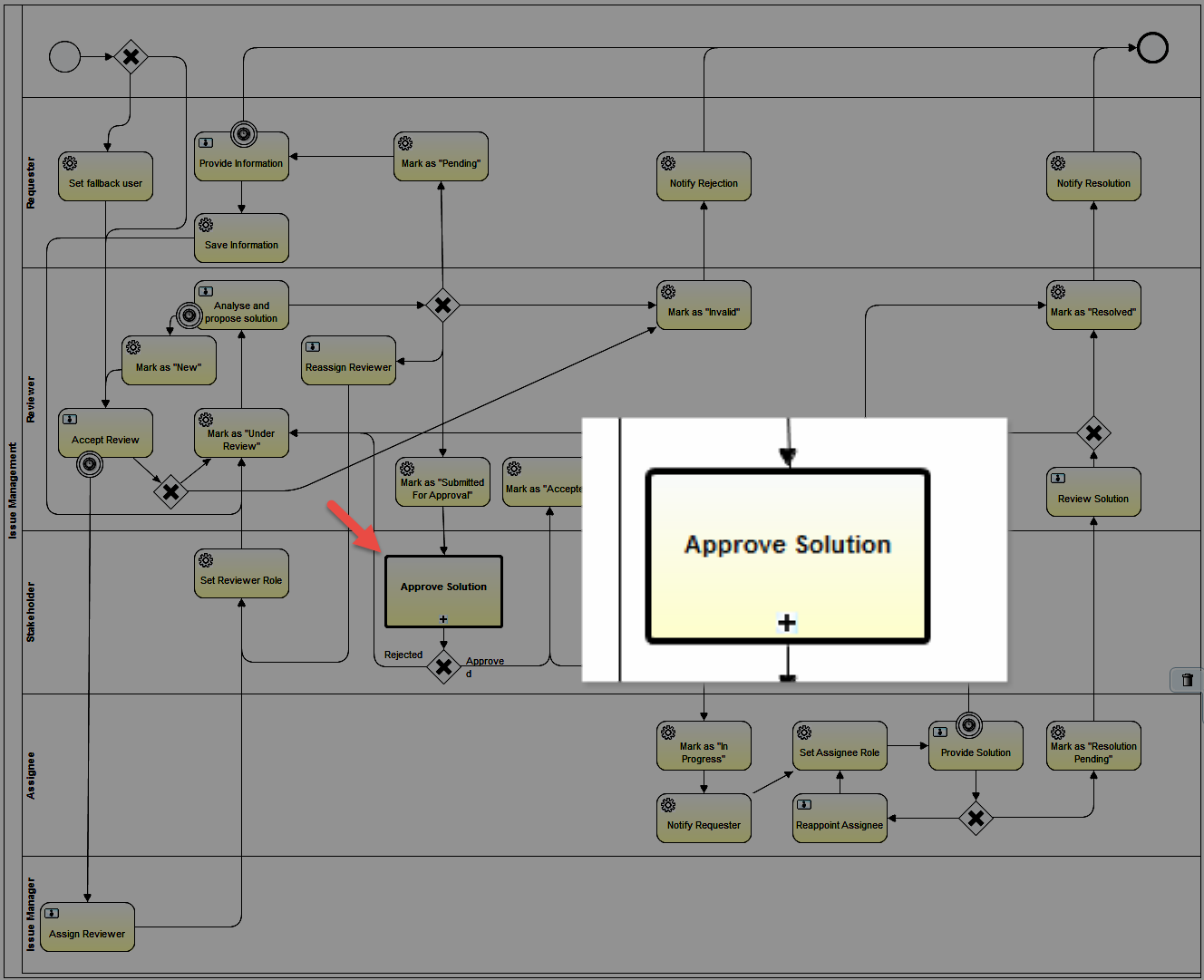

Step 22: Approve Solution

Create a call activity to call the Voting Sub-Process.

Set the properties:

Service Call > Properties Tab > Main config

Setting	Value	Description
Called Element	votingSubProcess	This is the Id of the Voting Sub-Process that is being called
Input Parameters	See Below	The variables or expressions that are being passed to the votingSubProcess
Output Parameters	See Below	The output variable from the call activity

Input Parameters: These are expressions and variables that are passed to the Voting Sub-Process

Source	Source expression	Target
	${"Please verify if the proposed solution is acceptable. If not, please reject and provide a reason."}	decisionInfo
stewardUserExpression		voterUserExpression
	${100}	votePercentage
	${true}	addComments
	${false}	earlyComplete
voteWarningTimeDuration		voteWarningTimeDuration
voteTimeoutDuration		voteTimeoutDuration
	${"Review/Reject"}	voteButtonLabel
	${"Approve"}	voteTaskName
sendVotingActionEmails		sendActionEmail

Output Parameters:

Source	Source expression	Target	Target expression	Description
votingResult		votingResult		This is the final result of the Voting Sub-Process. It will be true or false

Icon

For the design of the Voting Sub-Process, go to: Voting Sub-Process Design and Implementation

Step 23: Create a Fourth Exclusive Gateway

Create an exclusive gateway and sequence flows that are determine by the result of the Voting Sub-process

Set the properties:

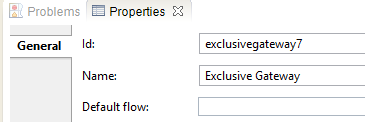

Exclusive Gateway > Properties Tab > General

(No properties to set except the Name)

Sequence Flow 1(Approved) > Properties Tab > Main config

Property	Value	Description
Label Width	47	The width of the label on the flow
Condition	${votingResult.votingResult}	Will return "true" and follow this path if the Voting Sub-Process receives enough votes.

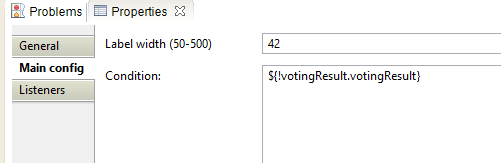

Sequence Flow 2(Rejected) > Properties Tab > Main config

Property	Value	Description
Label Width	42	The width of the label on the flow
Condition	${!votingResult.votingResult}	Will return "true" and follow this path if the Voting Sub-Process doesn't receive enough votes. The "!" preceding the variable provides the logical opposite.

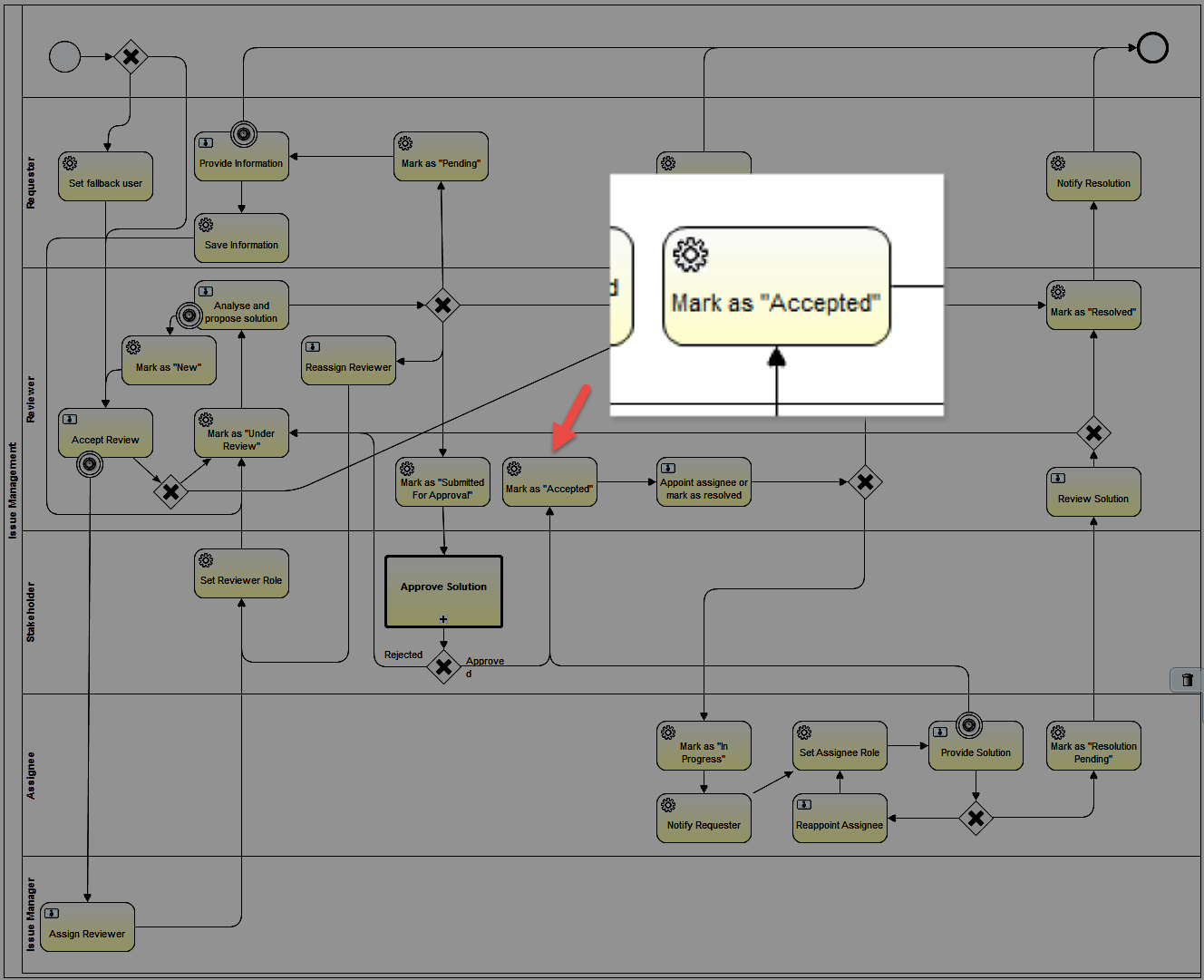

Step 24: Mark as "Accepted"

Create a service task to change the status to Accepted.

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	JavaDelegate for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005009		the id of the target status term.

Step 25: Appoint Assignee or Mark as Resolved

Create a user task to appoint the assignee to solve this issue or immediately mark this issue as resolved.

Set the properties:

User Task > Properties Tab > Main Config

Property	Value	Description
Candidate Users	role(Reviewer)
Documentation	Appoint the assignee to solve this issue or immediately mark this issue as resolved.	The extra description on the yellow ribbon task notification

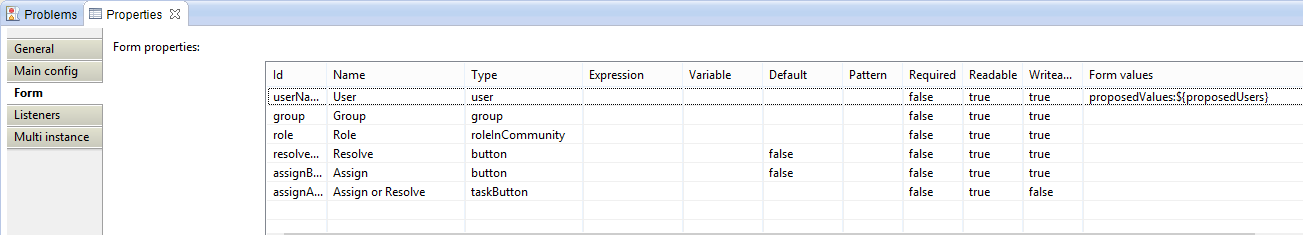

User Task > Properties Tab > Form

Id	Name	Type	Default	Required	Readable	Writeable	Form Values	Description
userName	User	user		false	true	true	proposedValues:${proposedUsers}
group	Group	group		false	true	true
role	Reviewer	roleInCommunity		false	true	true
resolveButton	Resolve	button	false	false	true	true
assignButton	Assign	button	false	false	true	true
assignAssigneeButton	Assign or Resolve	taskButton		false	true	false		Button on the yellow task notification ribbon

User Task > Properties Tab > Listeners

Listener implementation	Type	Event	Fields	Description
com.collibra.dgc.core.workflow.activiti.tasklistener.CheckMandatoryFieldCombinationTaskListener	class	complete	see table A	This `Tasklistener` checks if the configured combination of form property input fields have at least one value field filled in. If not a error message will be shown to the user
com.collibra.dgc.core.workflow.activiti.tasklistener.SetValueTaskListener	class	create	see table B	This `TaskListener` can be used to evaluate expressions or user expressions and store the parsed value in a task LOCAL variable. This means as soon as you exit the current user task, the variable will not be available anymore.
com.collibra.dgc.core.workflow.activiti.tasklistener.SetFormSubtitleTaskListener	class	create	see table C	This `TaskListener` sets a given string value as the subtitle for the form to be displayed on the task. With this you can tweak the form presented to the user with custom subtitles.

table A: CheckMandatoryFieldCombinationTaskListener

Field Name	String Value	Expression	Description
formFields	userName,role,group		a csv of form property ids to do the mandatory check on.

table B: SetValueTaskListener

Field Name	String Value	Expression	Description
resultVariable	proposedUsers		the name of the variable to store the result in.
userExpression		${reviewerUserExpression}	a csv of user expressions that will be evaluated to a comma separated list of user names and stored in the given `resultVariable`. Only one of `valuesExpression` or `userExpression` is expected and will be evaluated.

table C: SetFormSubtitleTaskListener

Field Name	String Value	Expression	Description
subtitle	workflowReassignResolveSubtitle		the string value for the form subtitle.

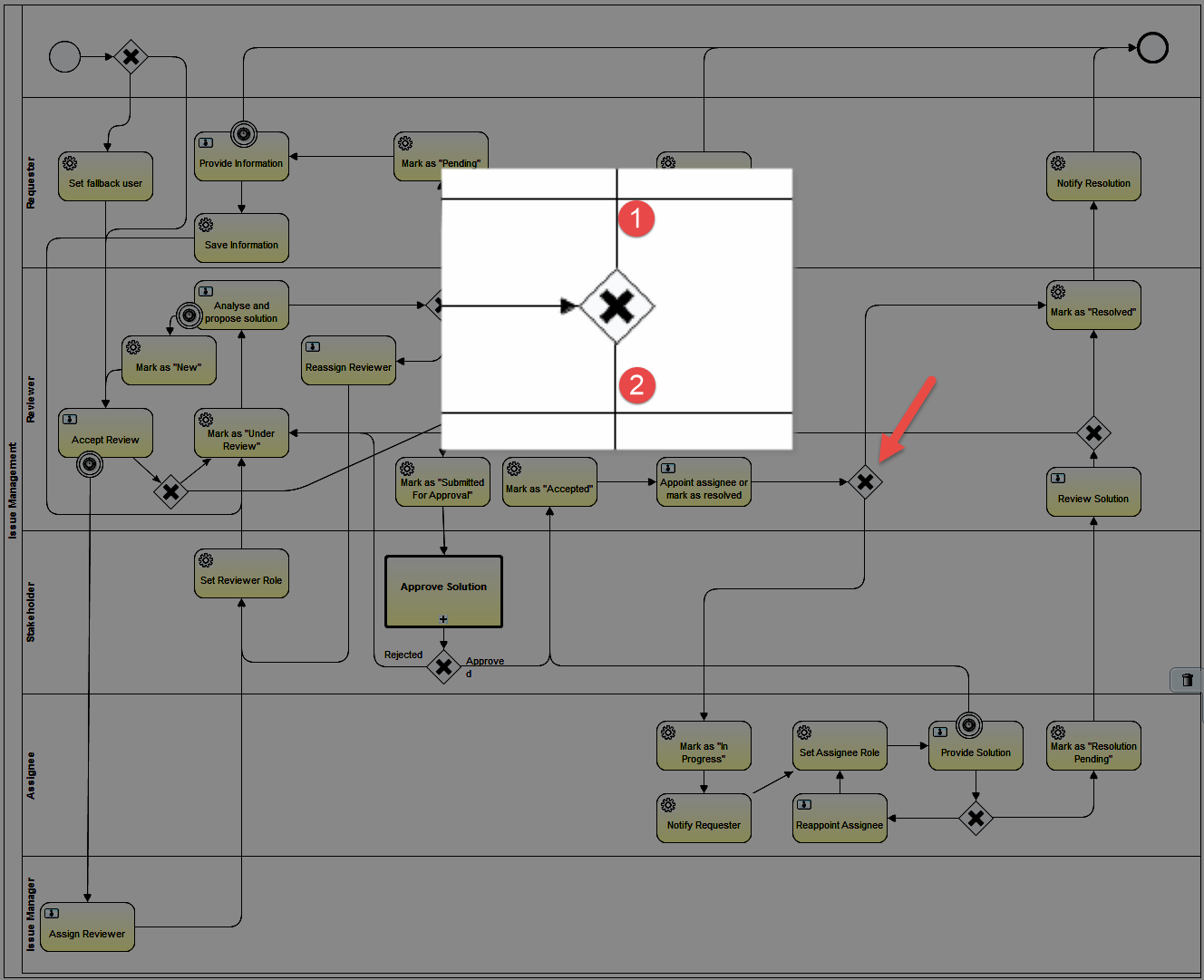

Step 26: Create a Fifth Exclusive Gateway

Create an exclusive gateway based on the results of a user form

Set the properties:

Exclusive Gateway > Properties Tab > General

(No properties to set except the Name)

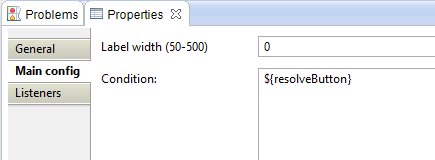

Sequence Flow 1(Resolve Button Pressed) > Properties Tab > Main config

Property	Value	Description
Label Width	0	No label on the sequence flow exists
Condition	${resolveButton}	Will return "true" and follow this path if the user presses the resolve button.

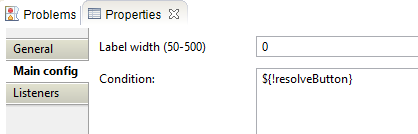

Sequence Flow 2(Assign Button Pressed) > Properties Tab > Main config

Property	Value	Description
Label Width	0	No label on the sequence flow exists
Condition	${!resolveButton}	Will return "true" and follow this path if the user presses any button other than the resolveButton

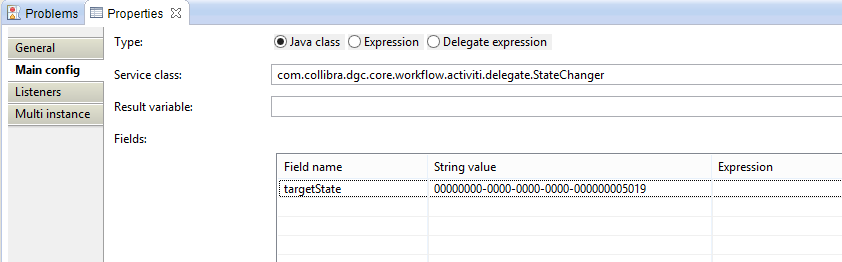

Step 27: Mark as "In Progress"

Create a service task to change the status of the asset to In Progress.

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	JavaDelegate for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005019		the id of the target status term.

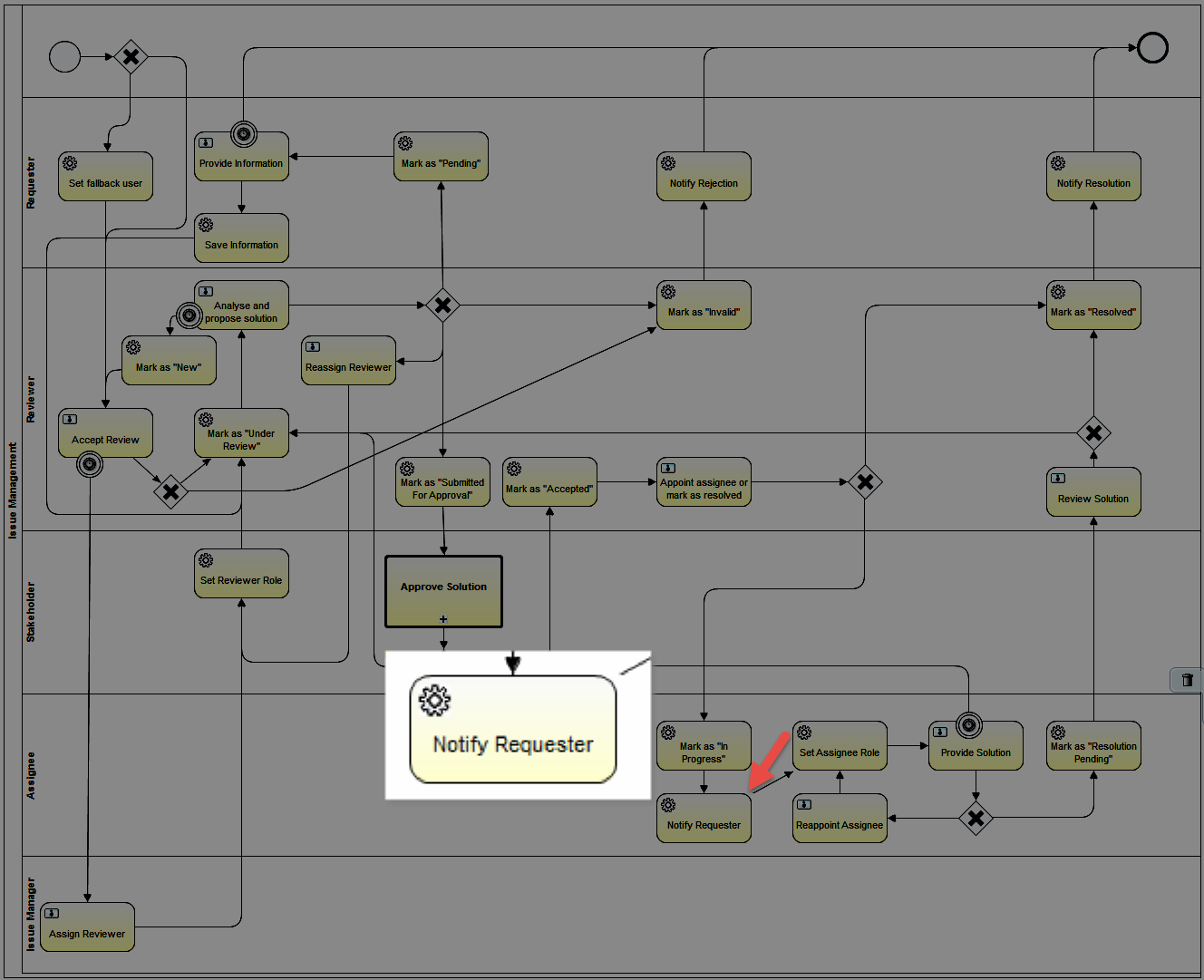

Step 28: Notify Requester

Create a service task to send an email to the Requester with notification that the asset is In Progress.

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.MailSender	`JavaDelegate used for sending mails from the workflow.`

Fields:

Field name	String value	Expression	Description
template	in-progress		the name of the template that should be used to generate the mail.
mailTo	role(Requester)		user expressions for users that should receive the action mail.

Step 29: Set Assignee Role

Create a service task to set the Assignee

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.GetUserNames	The GetUserNames delegate class

Fields:

Field name	Expression	Description
userNames	${userName}	a CSV of usernames you want to have included in the result
groupNames	${group}	a CSV of groupnames you want to have evaluated and included in the result
userExpressions	${role}	a CSV of user expressions you want to have evaluated and included in the result

The default output variable is 'assembledUserNames'. It stores the CSV of user names.

Service Task > Properties Tab > Listeners

Listener implementation	Type	Event	Fields	Description
com.collibra.dgc.core.workflow.activiti.executionlistener.SetMembersExecutionListener	class	complete	see table A	This `ExecutionListener` will set the specified members on the business item of the workflow

table A:

Field Name	String Value	Expression	Description
roleName	Assignee		the name of the role. You can only specify one role to use.
userNames		${assembledUserNames}	a csv of usernames you want to set a member for.
clearExisting	true		if 'true' all existing members on the curent business item will be deleted prior to adding new ones (OPTIONAL). If empty no clearing is performed.

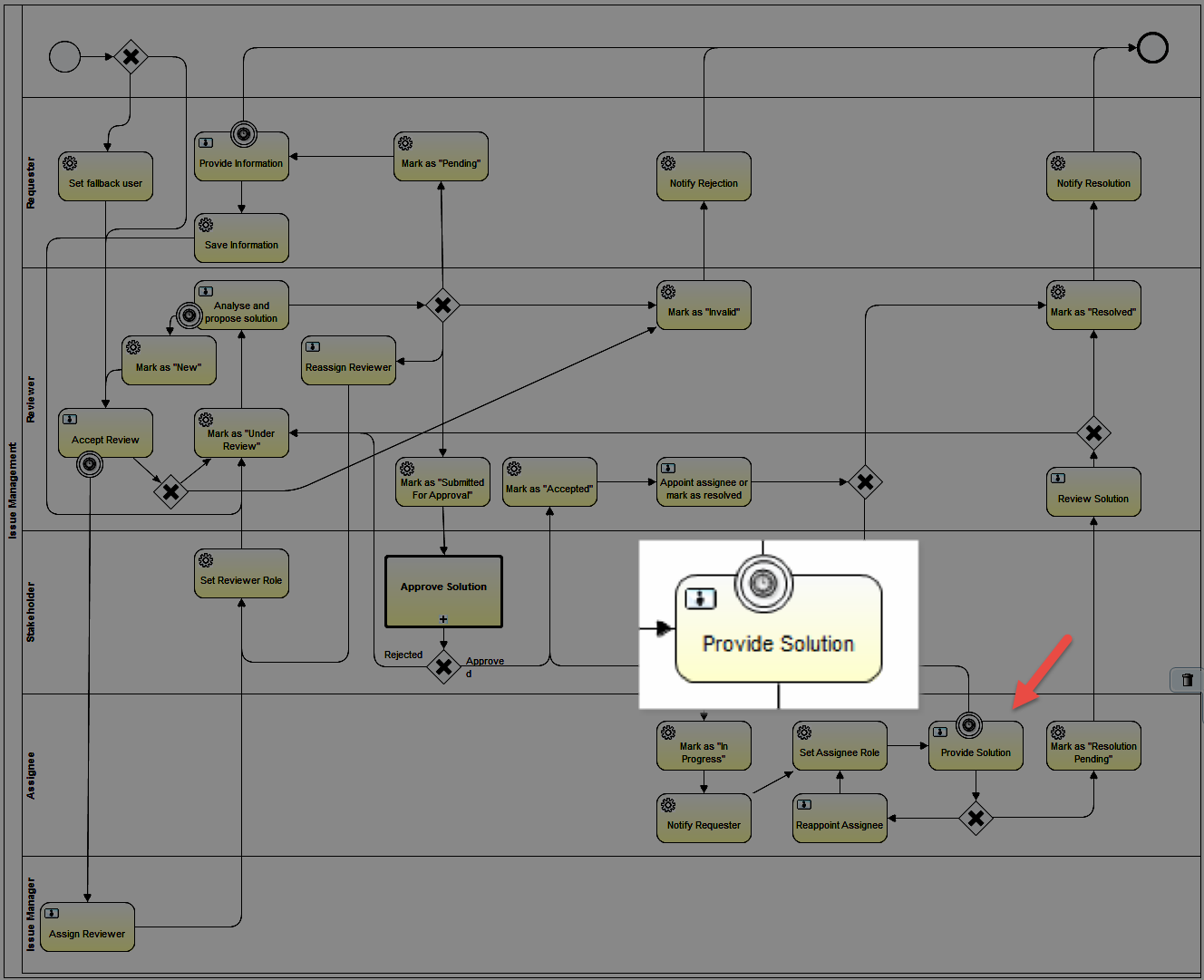

Step 30: Provide Solution

Create a user task to prompt the Assignee to resolve the issue. The Assignee then decides to either solve or reassign.

Set the properties:

User Task > Properties Tab > Main config

Property	Value	Description
Candidate users	role(Assignee)	The candidate user
Documentation	Please provide the solution for this Issue.	Additional text that displays on the yellow task notification ribbon

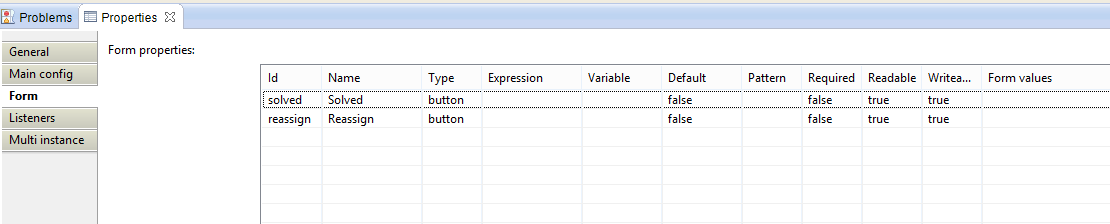

User Task > Properties Tab > Form

Id	Name	Type	Default	Required	Readable	Writeable	Form Values	Description
solved	Solved	button	false	false	true	true
reassign	Reassign	button	false	false	true	true

Timer Boundary Event > Properties Tab > Main Config

Property	Value	Description
Cancel activity	true
Time duration	${provideSolutionDuration}	The amount of time before the connected sequence flow triggers. See the configuration variables

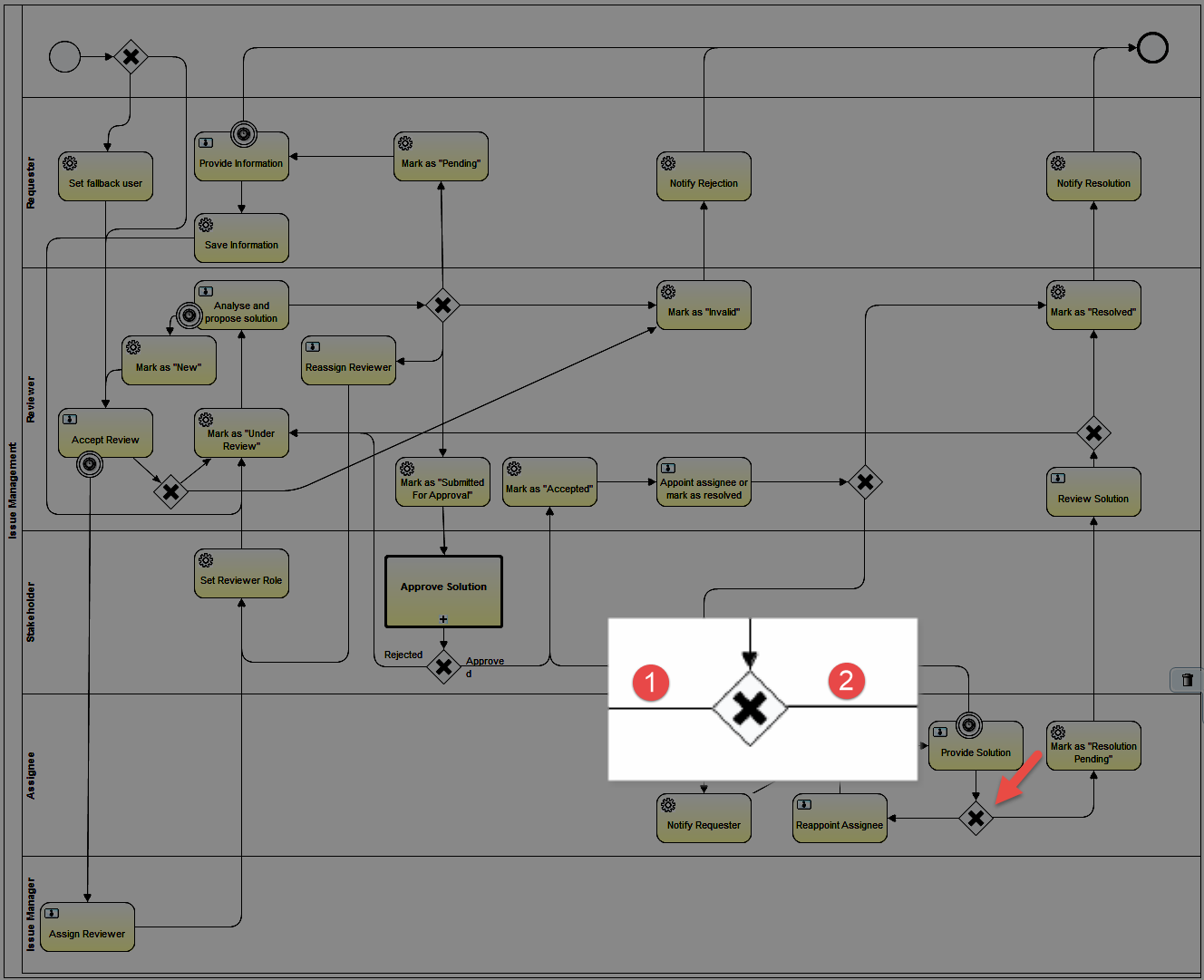

Step 31: Create a Sixth Exclusive Gateway

Create an exclusive gateway based on the response of a user form

Set the properties:

Exclusive Gateway > Properties Tab > General

(No properties to set except the Name)

Sequence Flow 1(Reassign Button Pressed) > Properties Tab > Main config

Property	Value	Description
Label Width	0	No label on the sequence flow exists
Condition	${reassign}	Will return "true" and follow this path if the user presses the Reassign button.

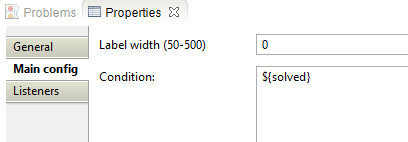

Sequence Flow 2(Solved Button Pressed) > Properties Tab > Main config

Property	Value	Description
Label Width	0	No label on the sequence flow exists
Condition	${solved}	Will return "true" and follow this path if the user presses the Solved button.

Step 32: Reappoint Assignee

Create a user to assign another person to solve this issue.

Set the properties:

User Task > Properties Tab > Main Config

Property	Value	Description
Candidate Users	role(Assignee)
Documentation	Assign another person to solve this issue.	The extra description on the yellow ribbon task notification

User Task > Properties Tab > Form

Id	Name	Type	Required	Readable	Writeable	Form Values
userName	User	user	false	true	true	proposedValues:${proposedUsers}
group	Group	group	false	true	true
role	Reviewer	roleInCommunity	false	true	true
reassignAssigneeButton	Reappoint Assignee	taskButton	false	true	false

User Task > Properties Tab > Listeners

Listener implementation	Type	Event	Fields	Description
com.collibra.dgc.core.workflow.activiti.tasklistener.CheckMandatoryFieldCombinationTaskListener	class	complete	see table A	This `Tasklistener` checks if the configured combination of form property input fields have at least one value field filled in. If not a error message will be shown to the user
com.collibra.dgc.core.workflow.activiti.tasklistener.SetValueTaskListener	class	create	see table B	This `TaskListener` can be used to evaluate expressions or user expressions and store the parsed value in a task LOCAL variable. This means as soon as you exit the current user task, the variable will not be available anymore.
com.collibra.dgc.core.workflow.activiti.tasklistener.SetFormSubtitleTaskListener	class	create	see table C	This `TaskListener` sets a given string value as the subtitle for the form to be displayed on the task. With this you can tweak the form presented to the user with custom subtitles.

table A: CheckMandatoryFieldCombinationTaskListener

Field Name	String Value	Expression	Description
formFields	userName,role,group		a csv of form property ids to do the mandatory check on.

table B: SetValueTaskListener

Field Name	String Value	Expression	Description
resultVariable	proposedUsers		the name of the variable to store the result in.
userExpression		${reviewerUserExpression}	a csv of user expressions that will be evaluated to a comma separated list of user names and stored in the given `resultVariable`. Only one of `valuesExpression` or `userExpression` is expected and will be evaluated.

table C: SetFormSubtitleTaskListener

Field Name	String Value	Expression	Description
subtitle	workflowReassignSubtitle		the string value for the form subtitle.

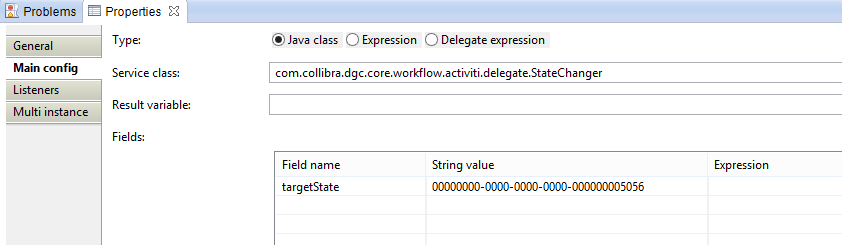

Step 33: Mark as "Resolution Pending"

Create a service task to change the status of the asset to Resolution Pending.

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	`JavaDelegate` for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005056		the id of the target status term.

Step 34: Review Solution

Create a service task for the Reviewer to review to provided solution.

Set the properties:

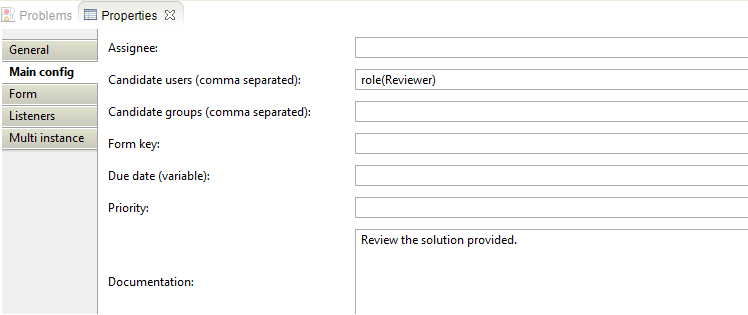

User Task > Properties Tab > Main Config

Property	Value	Description
Candidate Users	role(Reviewer)
Documentation	Review the solution provided.	The extra description on the yellow ribbon task notification

User Task > Properties Tab > Form

Id	Name	Type	Default	Required	Readable	Writeable	Form Values
accepted	Accept	button	false	false	true	true
rejected	Reject	button	false	false	true	true

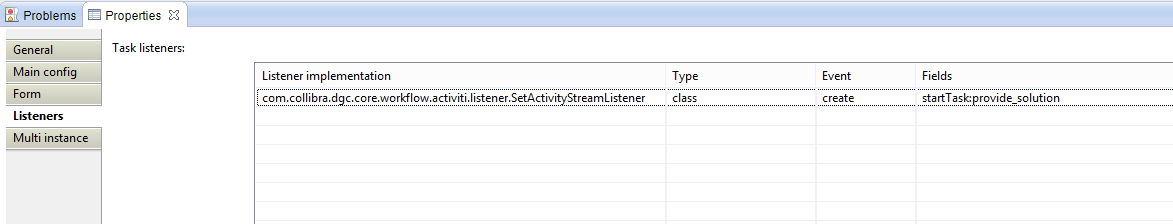

User Task > Properties Tab > Listeners

Listener implementation	Type	Event	Fields
com.collibra.dgc.core.workflow.activiti.listener.SetActivitityStreamListener	class	create	see table A

table A: CheckMandatoryFieldCombinationTaskListener

Field Name	String Value	Expression	Description
startTask	provide_solution

Step 35: Create a Seventh Exclusive Gateway

:

Set the properties:

Exclusive Gateway > Properties Tab > General

(No properties to set except the Name)

Sequence Flow 1(Rejected Button Pressed) > Properties Tab > Main config

Property	Value	Description
Label Width	0	No label on the sequence flow exists
Condition	${rejected}	Will return "true" and follow this path if the user presses the Rejected button.

Sequence Flow 2 (Accpeted Button Pressed) > Properties Tab > Main config

Property	Value	Description
Label Width	0	No label on the sequence flow exists
Condition	${accepted}	Will return "true" and follow this path if the user presses the Accepted button.

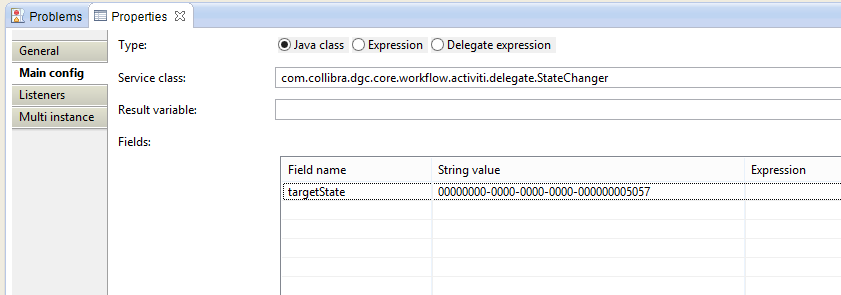

Step 36: Mark as "Resolved"

Create a service task to change the status of the asset to Resolved

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.StateChanger	`JavaDelegate` for changing the state of current business item in the process to specified target state.

Fields:

Field name	String value	Expression	Description
targetState	00000000-0000-0000-0000-000000005057		the id of the target status term.

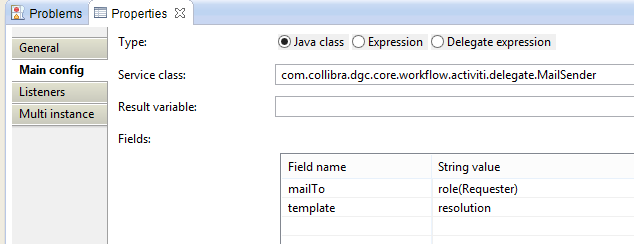

Step 37: Notify Resolution

Create a service task to notify the Requester of resolution.

Set the properties:

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.MailSender	`JavaDelegate used for sending mails from the workflow.`

Fields:

Field name	String value	Expression	Description
template	resolution		the name of the template that should be used to generate the mail.
mailTo	role(Requester)		user expressions for users that should receive the action mail.

Body of Knowledge : Issue Management Workflow Design and Implementation

BPMN Diagram

Step 1: Create a new Activiti project and/or Activiti diagram

Step 2: Change the Identifier, Name and Description of the Process

Step 3: Create a Pool and Lanes

Step 4: Create a Start and End Event

Step 5: Create an Exclusive Gateway

Step 6: Set Fallback User

Step 7: Accept Review

Step 8: Assign Reviewer

Step 9: Set Reviewer Role

Step 10: Create a Second Exclusive Gateway

Step 11: Mark as "Under Review"

Step 12: Analyse and Propose Solution

Step 13: Mark as "New"

Step 14: Create a Third Exclusive Gateway

Step 15: Reassign Reviewer

Step 16: Mark as "Pending"

Step 17: Provide Information

Step 18: Save Information

Step 19: Mark as "Invalid"

Step 20: Notify Rejection

Step 21: Mark as "Submitted For Approval"

Step 22: Approve Solution

Step 23: Create a Fourth Exclusive Gateway

Step 24: Mark as "Accepted"

Step 25: Appoint Assignee or Mark as Resolved

Step 26: Create a Fifth Exclusive Gateway

Step 27: Mark as "In Progress"

Step 28: Notify Requester

Step 29: Set Assignee Role

Step 30: Provide Solution

Step 31: Create a Sixth Exclusive Gateway

Step 32: Reappoint Assignee

Step 33: Mark as "Resolution Pending"

Step 34: Review Solution

Step 35: Create a Seventh Exclusive Gateway

Step 36: Mark as "Resolved"

Step 37: Notify Resolution

Attachments:
