For a walk-through the steps of the workflow and its configuration, we refer to Voting Sub-Process Walk-Through

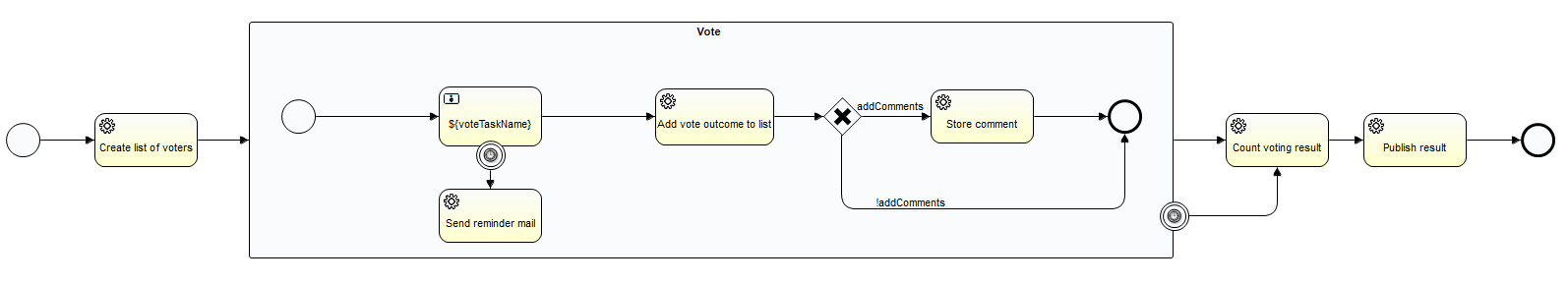

Over view of the completed workflow

Step 1: Create a new Activiti project and/or Activiti diagram

The creation of a new Activiti project/diagram is explained in the section on Setting Up Your Workflow Design Workbench

Step 2: Change the Identifier, Name and Description of the Process

We refer to the section Designing Your First Workflow From Scratch, subsection "Change the Identifier, Name and Description of the Process" for an explanation on how to change the identifier, name and description. For this case, name the workflow (e.g., the default would be "Voting Sub Process") and give it an identifier (e.g., the default name would be "votingSubProcess").

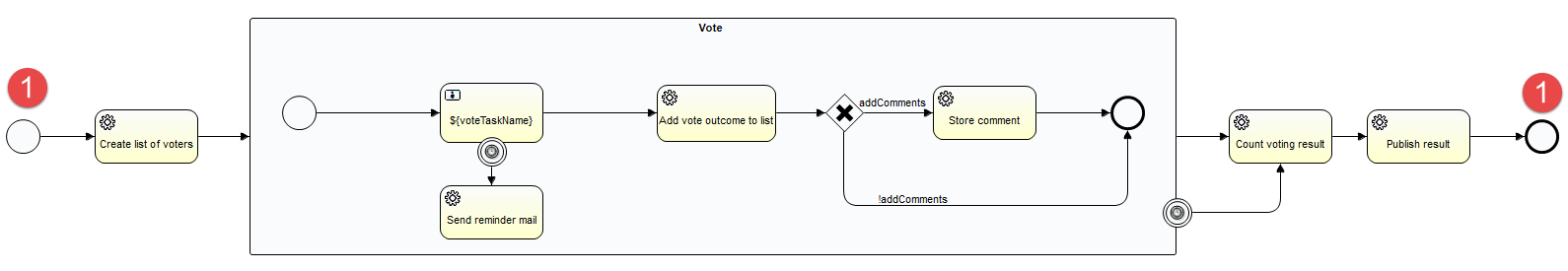

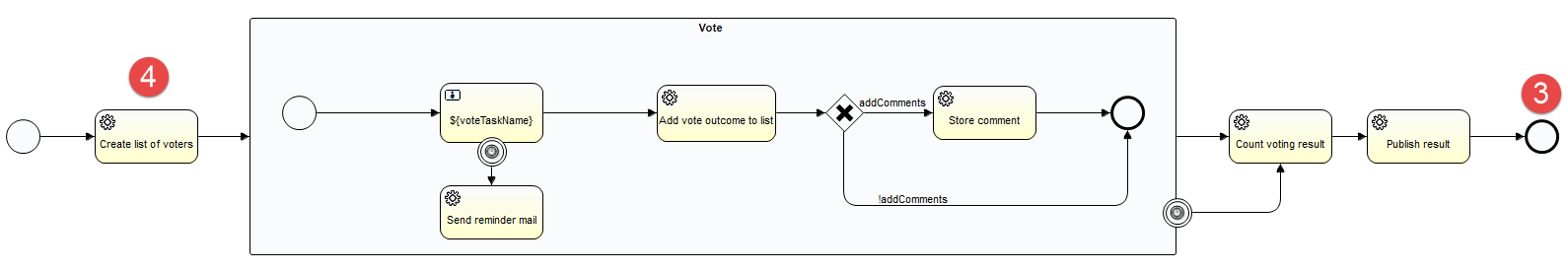

Step 3: Create a Start and End Event

We refer to the section Designing Your First Workflow From Scratch, subsection "Create a Start / End Event" for a general explanation.

Add the start and end events:

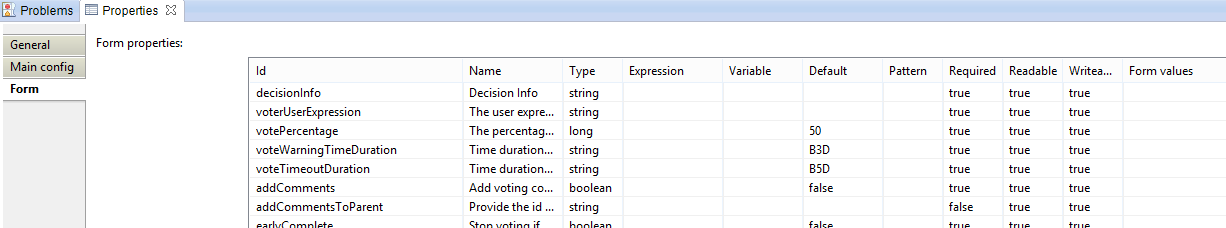

Add the Configuration Variables to the start event:

Start Event > Properties Tab > Form

Configuration Variables:

Id	Name	Type	Default	Required	Readable	Writeable
decisionInfo	Decision Info	string		true	true	true
voterUserExpression	The user expression resulting to users required to vote	string		true	true	true
votePercentage	The percentage of voters that are needed to approve (%)	long	50	true	true	true
voteWarningTimeDuration	Time duration before a warning mail is send to vote	string	B3D	true	true	true
voteTimeoutDuration	Time duration before the voting is stopped and the process continued	string	B5D	true	true	true
addComments	Add voting comments to resource	boolean	false	false	true	true
addCommentsToParent	Provide the id of a comment if you want comments to be added to a parent comment	string		true	true	true
earlyComplete	Stop voting if votingPercentage is impossible to reach	boolean	false	true	true	true
voteButtonLabel	Label for the voting button	string		true	true	true
voteTaskName	The name of the actual voting task	string		true	true	true
sendActionEmail	Send a mail to the users allowing completing the vote by sending a email	boolean	false	false	true	true

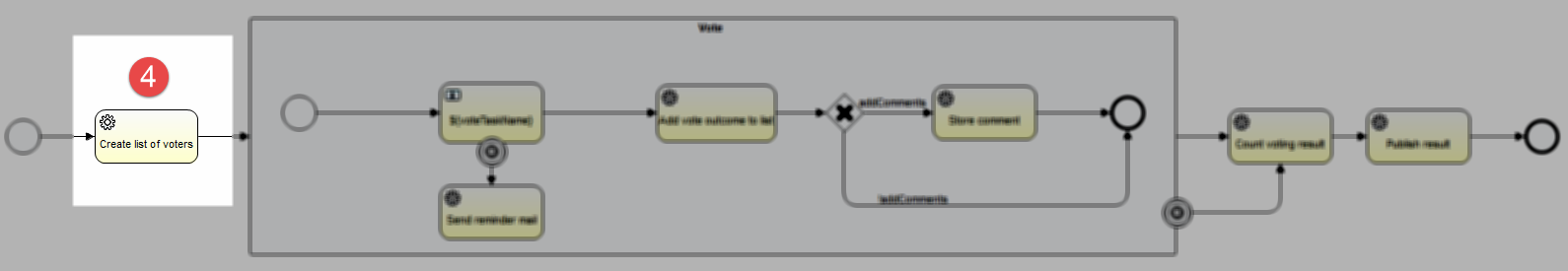

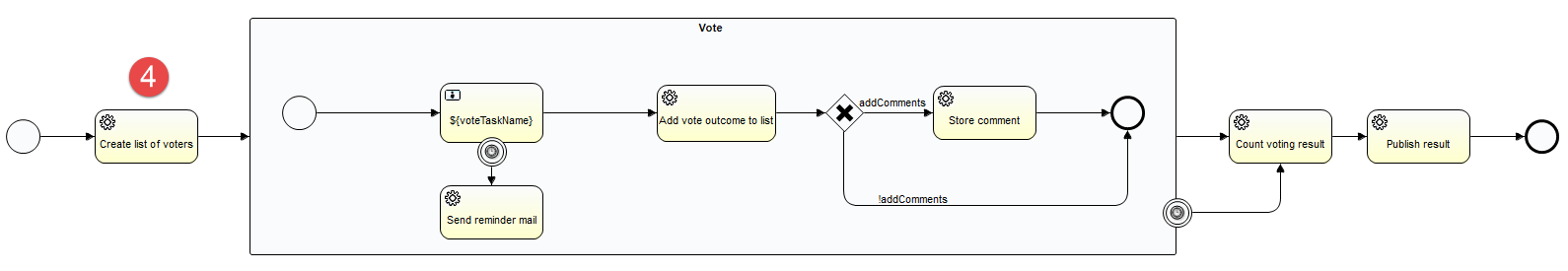

Step 4: Create list of voters

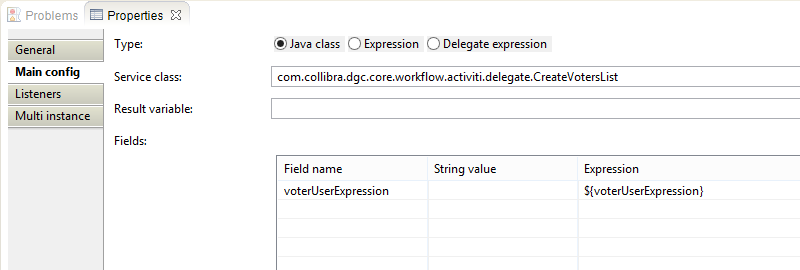

Create a service task that will create a list of voters.

Set the Properties:

Service Task > Properties Tab > Main config

Setting	Value	Description
Service class	com.collibra.dgc.core.workflow.activiti.delegate.CreateVotersList	This is the name of the delegate class
voterUserExpression	{voterUserExpression}	The delegate needs to the know the role to be counted. In this case it will be a Steward

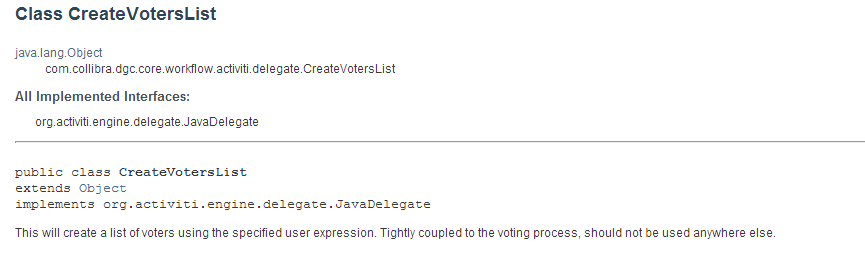

This Delegate Class can be found at: <yourCollibraDomain>/docs/index.html > core >Package: com.collibra.dgc.core.workflow.activiti.delegate > Interface: CreateVotersList

Icon

For more information about Delegates, go to: Developing Workflows > Delegates

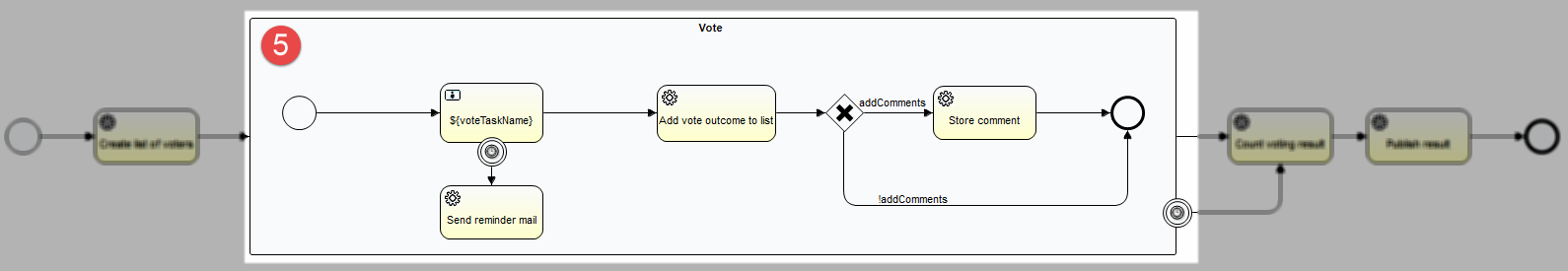

Step 5: Create Vote Sub-Process

Create an EventSubProcess container

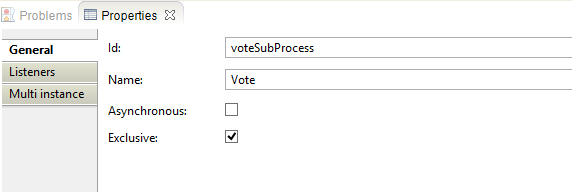

Give the EventSubProcess an Id and Name:

EventSubProcess > Properites Tab > General

Setting	Value	Description
Id	voteSubProcess	The Id of the sub-process. It will be used to call the sub-process from another workflow
Name	Vote	Provides a label for the sub-process

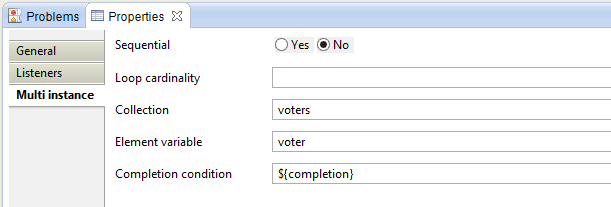

Make this EventSubProcess a loop by Using the "Multi instance" settings. The Vote event sub-process will be repeated for each voter:

Setting	Value	Description
Collection	voters	The list to loop through (Output variable by createVoterList delegate)
Element variable	voter	The single voter of the voter list
Completion condition	${completion}	Condition of when to stop the loop (Output variable by createVoterList delegate)

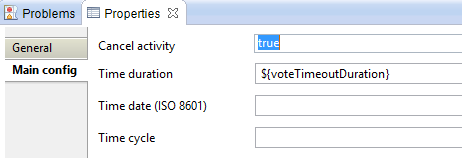

Add a Timer Boundary Event to determine the voting period.

Timer Boundary Event > Properties Tab > Main Config

Setting	Value	Description
Cancel activity	false
Time Duration	${voteTimeoutDuration}	The duration variable when the event will fire. See the Configuration Variables

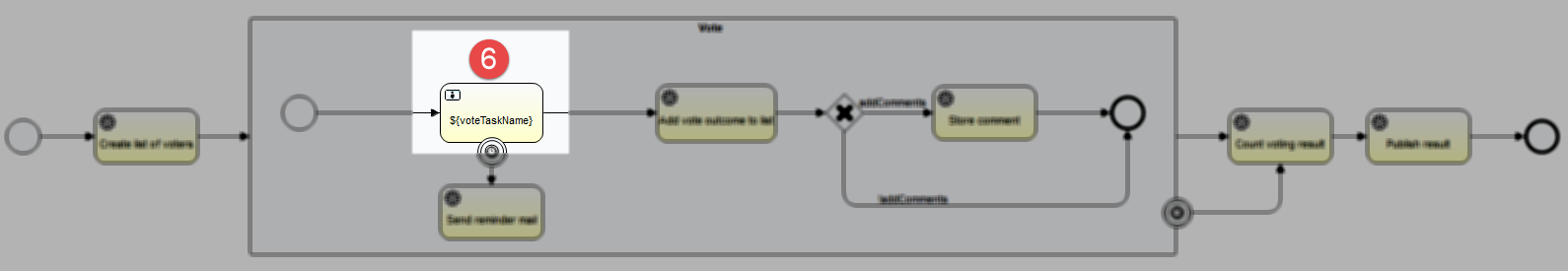

Step 6: Create the Voting Form

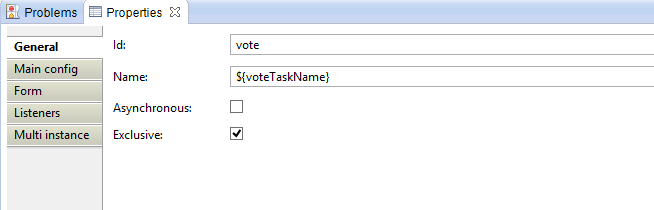

Create a User Task that will create the voting form for the user

Set the Properties:

Create a form for the user to vote:

User Task > Properties Tab > Form

Id	Name	Type	Default	Required	Readable	Writeable
comment	What is your reason for approving/rejecting?	textarea		false	true	true
approve	Approve	button	false	true	true	true
reject	Reject	button	false	true	true	true
voteButton	${voteButtonLabel}	taskButton		false	true	false

Icon

For more information about Form Types, go to: Developing Workflows > Form Types

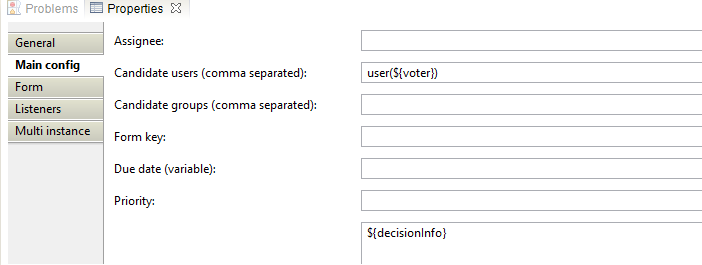

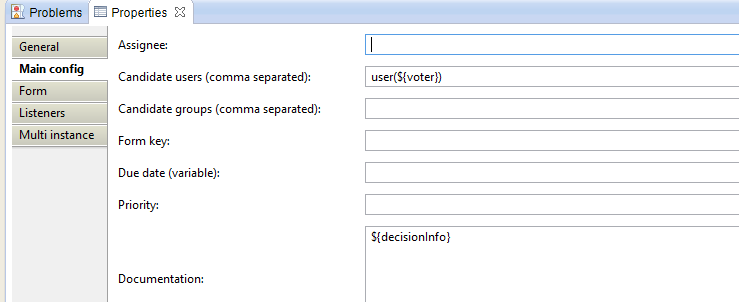

User Task > Properties Tab > Main config

Setting	Value	Description
Candidate users	user(${voter})	This variable is from the Multi Instance of the EventSubProcess
Documentation	${decisionInfo}	This variable is from the Configuration Variables on the Start Event. Provides a description of the task to the user

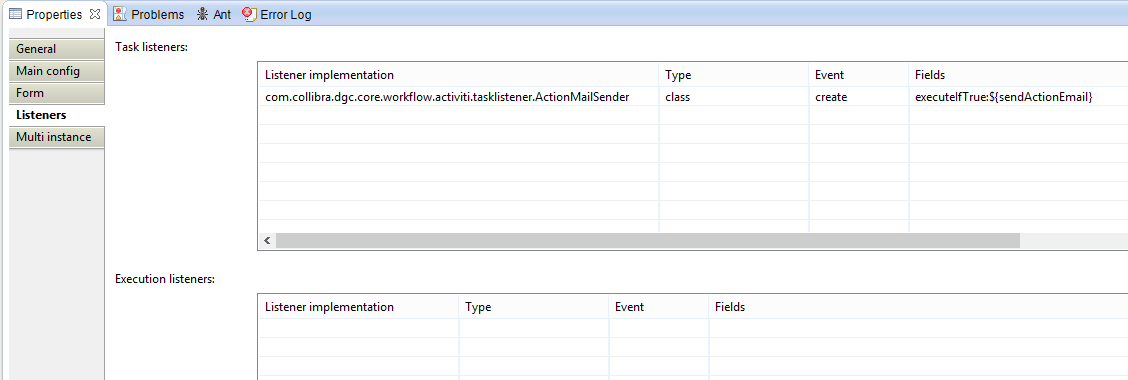

User Task > Properties Tab > Listeners

Listener implementation	Type	Event	Fields	Description
com.collibra.dgc.core.workflow.activiti.tasklistener.ActionMailSender	class	create	executeIfTrue:${sendActionEmail}	This Mail sender will send workflow action emails for the task that this Task Listener is configured for. Only simple tasks are possible without required form input except buttons. Setting executeIfTrue to "True" will determine if action email is sent

Icon

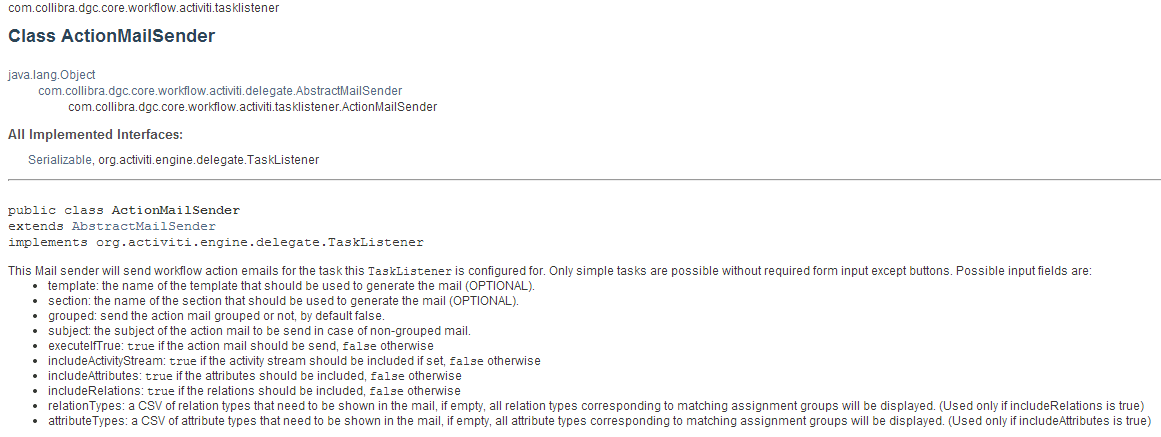

Documentation of this Task Listener can be found at: <yourCollibraDomain>/docs/index.html > core >Package: com.collibra.dgc.core.workflow.activiti.tasklistener > Interface: ActionMailSender

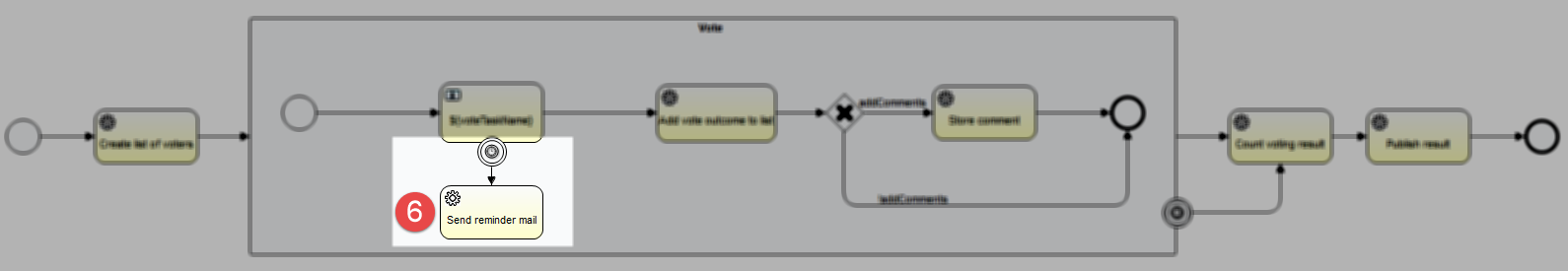

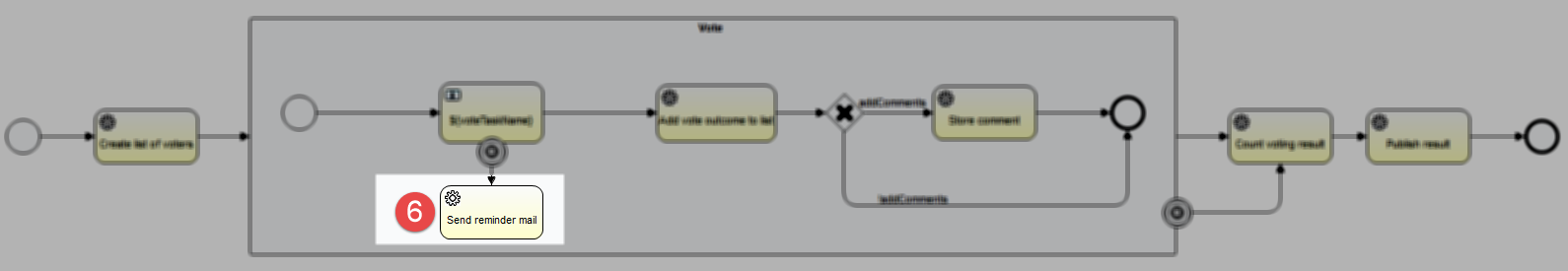

Step 7: Send Reminder Mail

Create a service task to send a reminder email based on a boundary timer:

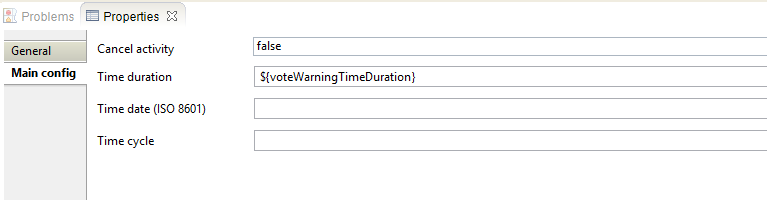

Add the TimerBoundaryEvent to the ${votTaskName} User Task and set its properties:

TimerBoundaryEvent > Properties Tab > Main config

Setting	Value	Description
Cancel activity	false
Time Duration	${voteWarningTimeDuration}	The duration variable when the event will fire. See the Configuration Variables

Icon

For more information about Duration Variables, go to: Managing Workflows > Duration Variables

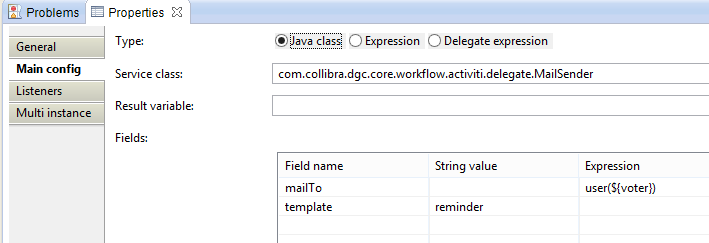

Create the Send reminder mail service task. This service task will use the MailSender Delegate. Set its properties:

Service Task > Properties Tab > Main config

Setting	Value	Description
Service class	com.collibra.dgc.core.workflow.activiti.delegate.MailSender	MailSender Delegate class

Fields:

Field name	String value	Expression	Description
mailTo		user(${voter})	The input for the email recipient. It will be the voter.
template	reminder		The input field for the email template

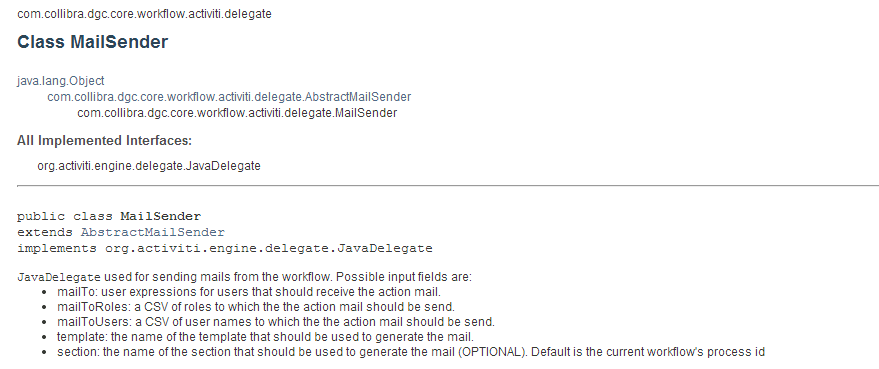

This Delegate Class can be found at: <yourCollibraDomain>/docs/index.html > core >Package: com.collibra.dgc.core.workflow.activiti.delegate > Interface: MailSender

Icon

For an explanation of using the MailSender Delegate, go to: Designing Your First Workflow From Scratch > Defining a service task that sends and email-notification

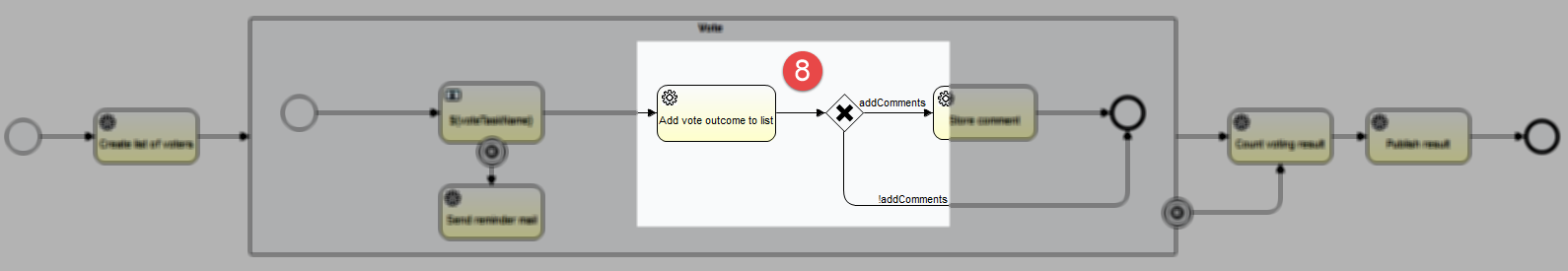

Step 8: Add Vote Outcome to List

Add a service task to count the votes. Then create an exclusive gateway the will operate based on if the option to add comments (via the form property addComments) is set or or not:

Set the properties:

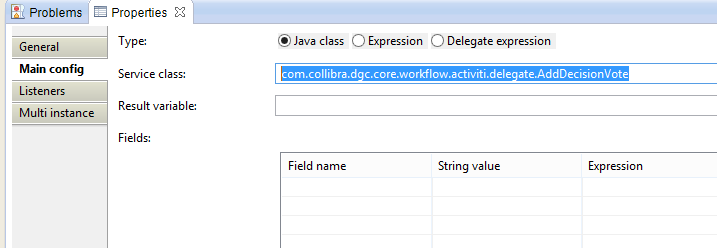

Service Task > Properties Tab > Main config

Setting	Value	Description
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.AddDecisionVote	See API documentation

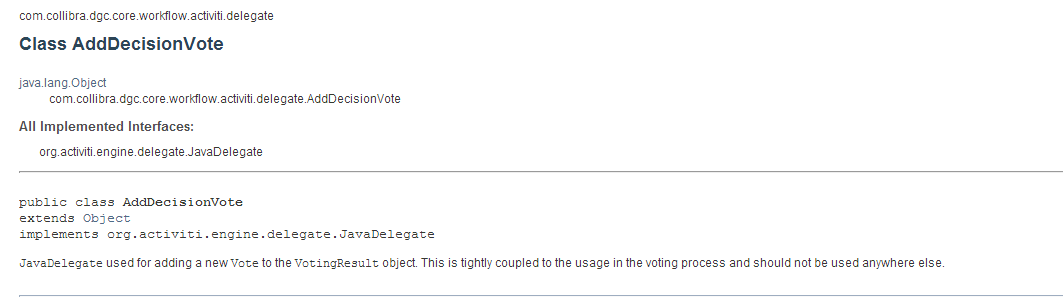

This Delegate Class can be found at: <yourCollibraDomain>/docs/index.html > core >Package: com.collibra.dgc.core.workflow.activiti.delegate > Interface: AddDescisionVote

Create the Exclusive Gateway and define the sequence flow outputs:

SequenceFlow > Properties Tab > Main config

Flow Name	Condition	Description

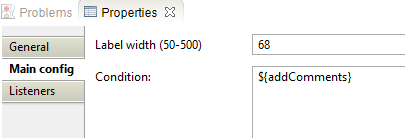

addComments	${addComments}	Will result in "true" if comments are added

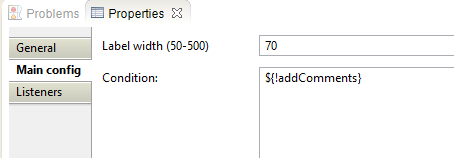

!addComments	${!addComments}	Will result in "false" if comments are added

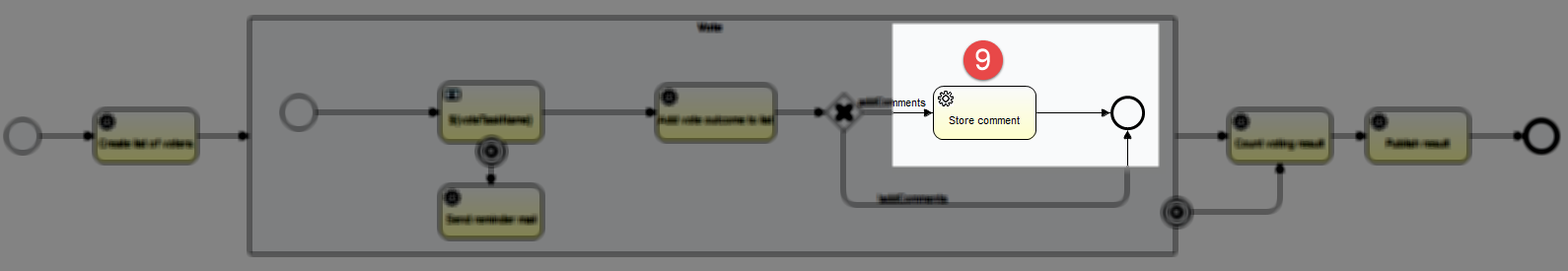

Step 9: Store Comment

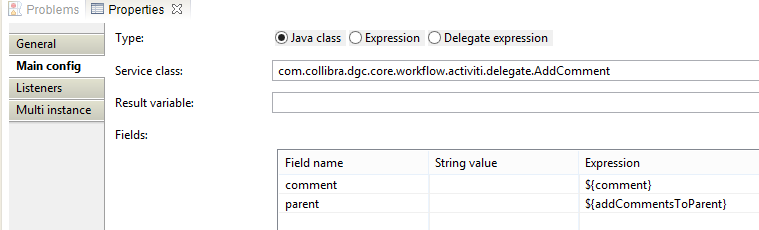

Create a service task to store the comment. This service task will use the AddComment delegate. Then close the sub process

Set the properties:

Service Task > Properties Tab > Main config

Setting	Value	Description
Service class	com.collibra.dgc.core.workflow.activiti.delegate.AddComment	AddComment Delegate class

Fields:

Field name	String value	Expression	Description
comment		${comment}	The input for the comment text. Variable was created in previous user task.
parent		${addCommentsToParent}	The input field that will allows you to override the default behavior and add the comment to as a sub comment of a parent comment. See configuration variables for the parent comment Id.

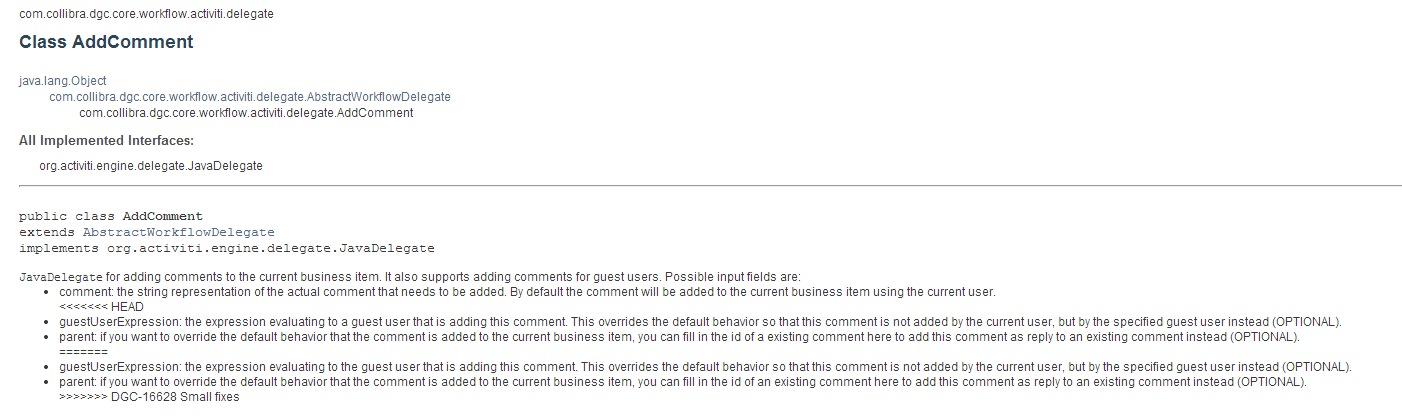

This Delegate Class can be found at: <yourCollibraDomain>/docs/index.html > core >Package: com.collibra.dgc.core.workflow.activiti.delegate > Interface: AddComment

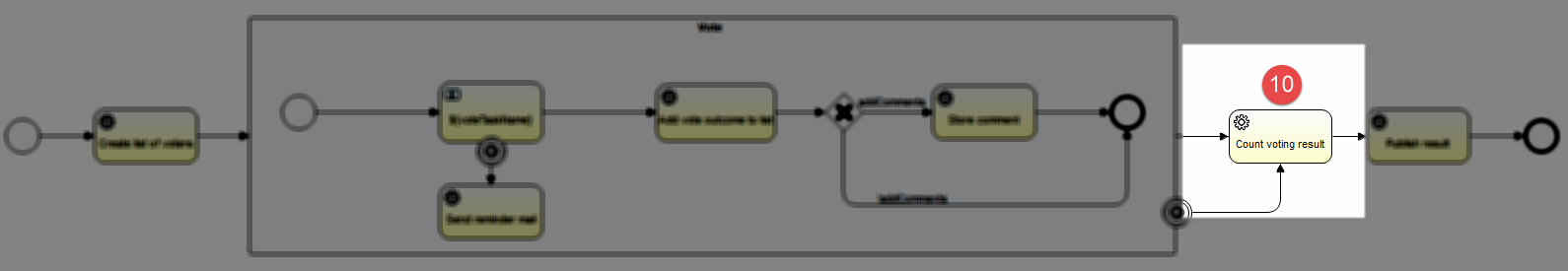

Step 10: Count voting result

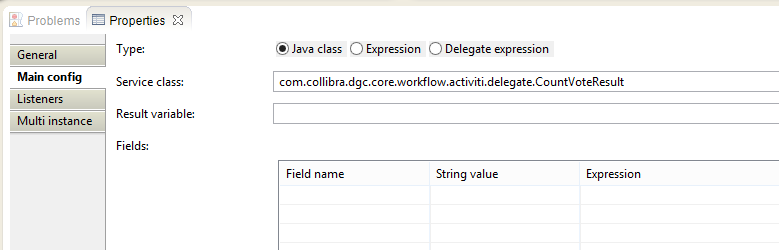

Create a service task to count the votes that were added using the looped EventSubProcess:

Set the properties:

Service Task > Properties Tab > Main config

Setting	Value	Description
Service class	com.collibra.dgc.core.workflow.activiti.delegate.CountVoteResult	This is the name of the delegate class

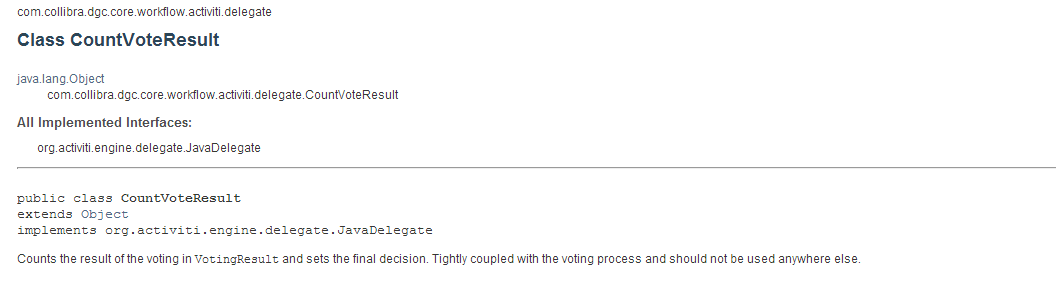

This Delegate Class can be found at: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.delegate > Interface: CountVoteResult

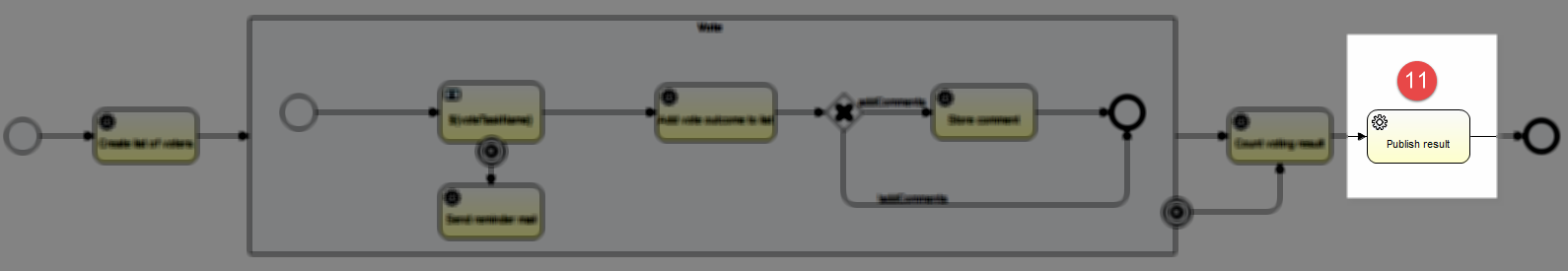

Step 11: Publish Result

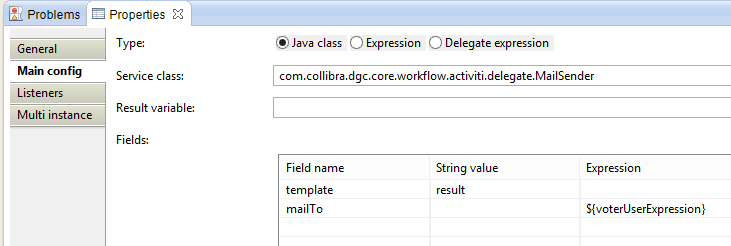

Add a service task to send out an email notifying voters of the result:

Set the properties:

Service Task > Properties Tab > Main config

Setting	Value	Description
Service class	com.collibra.dgc.core.workflow.activiti.delegate.MailSender	MailSender Delegate class

Fields:

Field name	String value	Expression	Description
template	result		This email will use the "result" email template.
mailTo		${voterUserExpression}	This is the list of voters. See the configuration variables
