For information about the design and implementation of the Issue Move workflow go to: Issue Move Design and Implementation

Description

The Issue Move is an out-of-the-box Workflow Definition that changes the responsible Community of an Issue.

Which roles are involved?

There are no specific roles assigned to this workflow.

Who can start the workflow?

The Reviewer, Requester, Stakeholder, Assignee, or Issue Manager can start this workflow.

What status transformations happen in this workflow?

None

Walk Through

Diagram

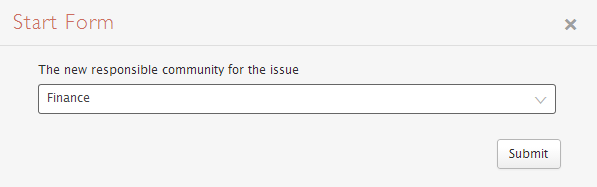

Start the Workflow

Start the workflow from an Issue



Issue

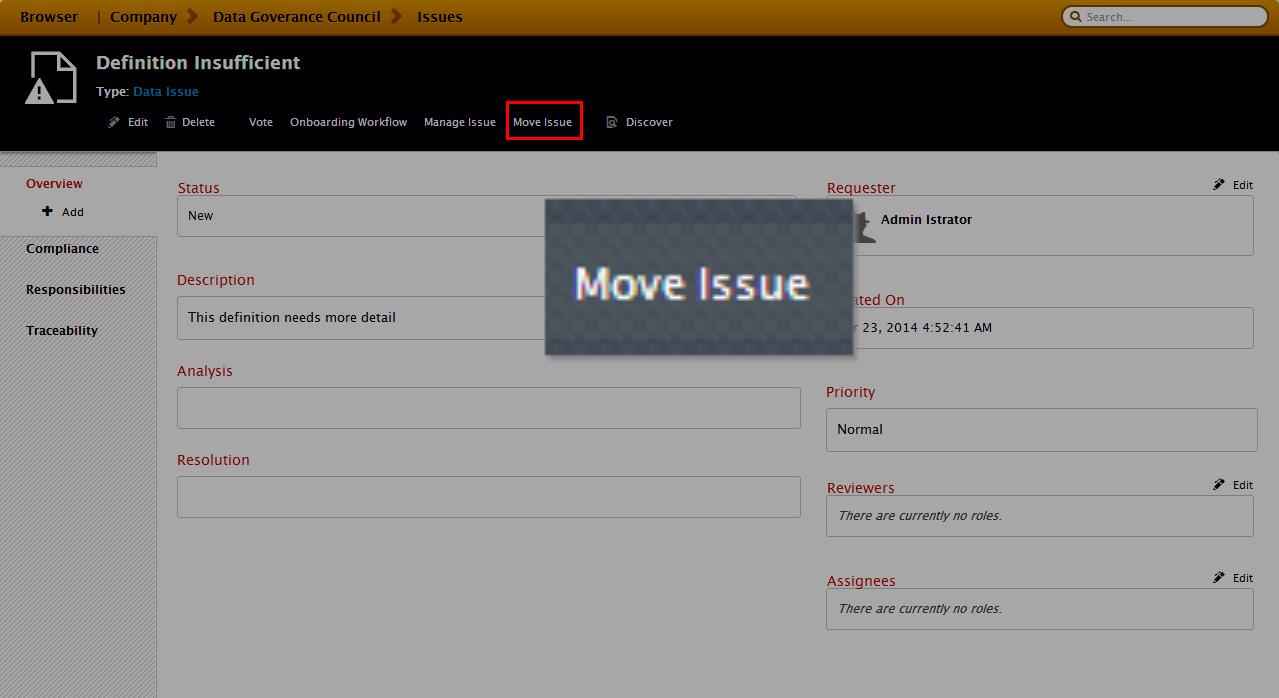

Issues > Move Issue Button

Result

Issue

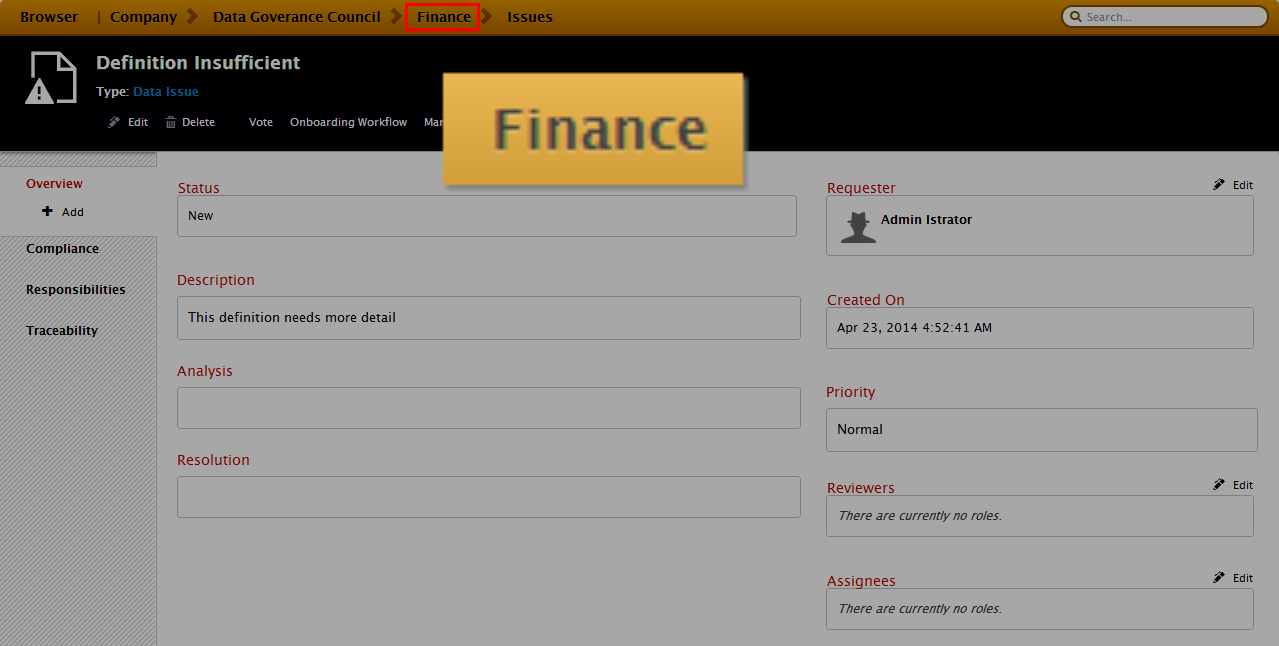

The Issue is now located in the Finance Community



Configuration

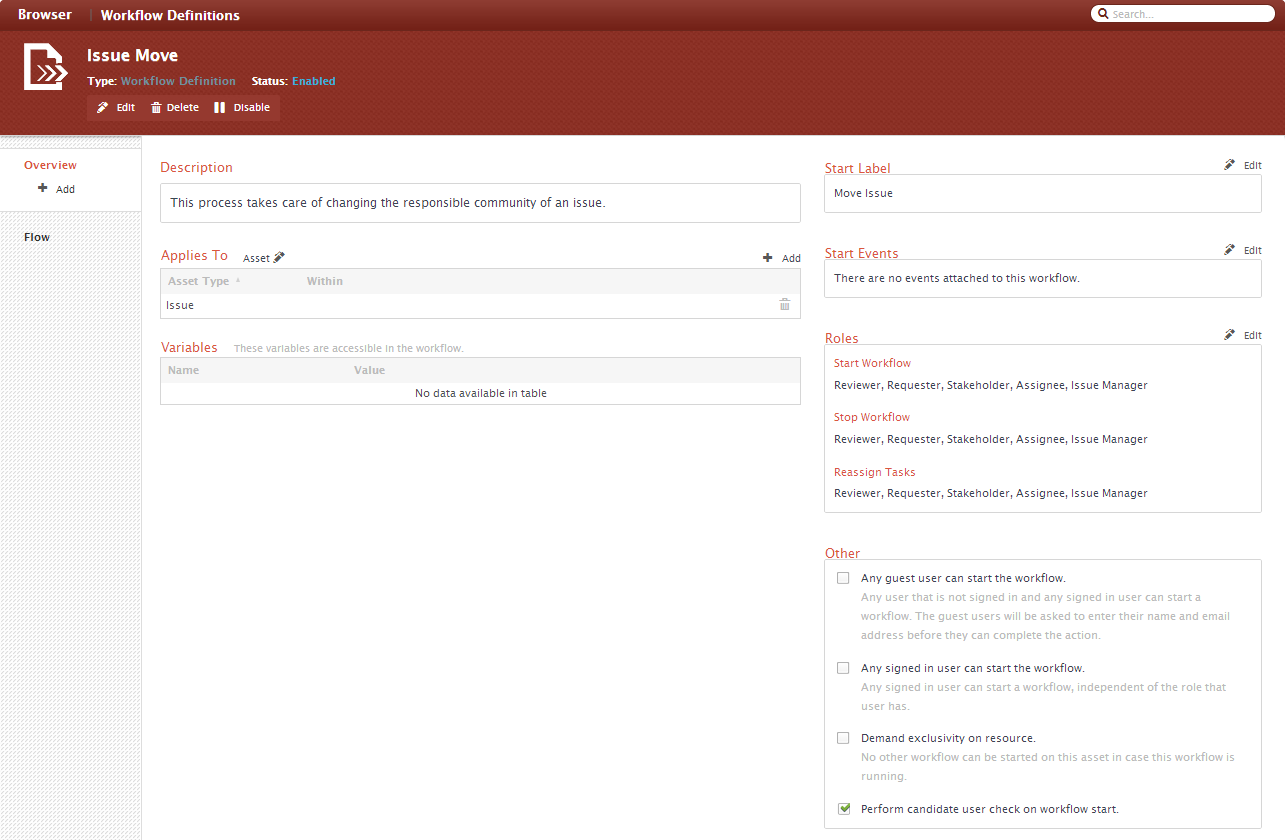

Settings > Workflows > Definitions > Issue Move

Description

Settings > Workflows > Definitions > Issue Move >  Description

Icon
For more information about this section, go to: Managing Workflows > Configuring > Description

Applies To

This Workflow Definition applies at the Asset level. It is accessible from within the page of an Issue

Settings > Workflows > Definitions > Issue Move > Applies To

Applies To: Asset

Icon

For more information about this section, go to: Managing Workflows > Configuring > Applies To

Configuration Variables

Settings > Workflows > Definitions > Issue Move > Variables

Start Label

The start label is configured in the upper right corner of the page.This is the label that is shown to the users when they are allowed to start the workflow. The name can be changed by pressing the Edit button and filling in a new label.

Settings > Workflows > Definitions > Issue Move > Start Label

Start Label: Move Issue

Icon

For more information about this section, go to: Managing Workflows >Configuring > Start Label

Start Events

There are currently no start events for this Workflow Definition.

Settings > Workflows > Definitions > Issue Move > Start Events

Start Events: None

Icon

For more information about this section, go to: Managing Workflows > Configuring > Start Events

Roles

Roles for the workflow are assigned here.

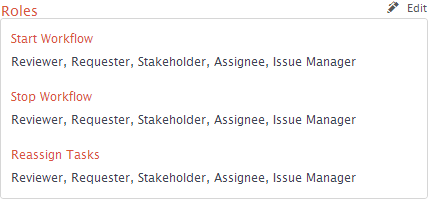

Settings > Workflows > Definitions > Issue Move > Roles

SettingValueDescription
Start Workflow
Reviewer,
Requester,
Stakeholder,
Assignee,
Issue Manager
These roles are specified to start the workflow.
Stop Workflow
Reviewer,
Requester,
Stakeholder,
Assignee,
Issue Manager
These roles are specified to be able stop the workflow once it is started
Reassign Tasks
Reviewer,
Requester,
Stakeholder,
Assignee,
Issue Manager
These roles are specified to Reassign Tasks once started
Icon

For more information about this section, go to: Managing Workflows > Configuring > Roles

Other

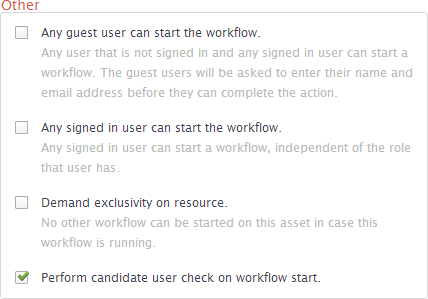

Settings > Workflows > Definitions > Issue Move > Other

SettingValue
Any guest user can start the workflowNo
Any signed in user can start the workflowNo
Demand exclusivity on resourceNo
Perform candidate user check on workflow startYes
Icon

For more information about this section, go to: Managing Workflows > Configuring > Other
