Body of Knowledge : Cancel Process Design and Implementation

Diagram

Step 1: Create a new Activiti project and/or Activiti diagram

Step 2: Change the Identifier, Name and Description of the Process

Step 3: Create a Pool and Lanes

Step 4: Create a Start and End Event

Step 5: Notify of cancel

Icon

For a walk-through the steps of the workflow and its configuration, go to: Cancel Process Walk-Through

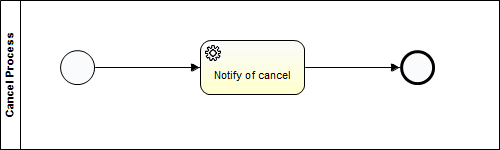

Diagram

Step 1: Create a new Activiti project and/or Activiti diagram

The creation of a new Activiti project/diagram is explained in the section on Setting Up Your Workflow Design Workbench

Step 2: Change the Identifier, Name and Description of the Process

We refer to the section Designing Your First Workflow From Scratch, subsection "Change the Identifier, Name and Description of the Process" for an explanation on how to change the identifier, name and description. For this case, name the workflow (e.g., the default would be "Cancel Process") and give it an identifier (e.g., the default name would be "cancelProcess").

Step 3: Create a Pool and Lanes

We refer to the section Designing Your First Workflow From Scratch, subsection "Defining a Pool and Lanes" for an explanation on how to change the identifier, name and description.

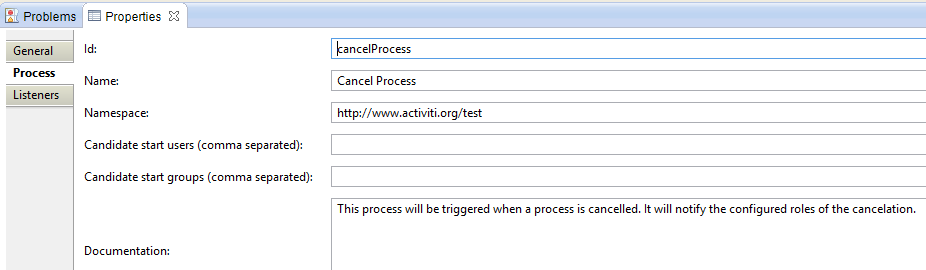

Pool > Properties Tab > Process

Property	Value	Description
id	cancelProcess	The Id of the workflow definition. This must be unique in Collibra
Name	Cancel Process	The default workflow label (description) in Collibra.
Namespace	http://www.activiti.org/test
Documentation	This process will be triggered when a process is cancelled. It will notify the configured roles of the cancellation.	This information is shown to the user when hovering over a workflow start button.

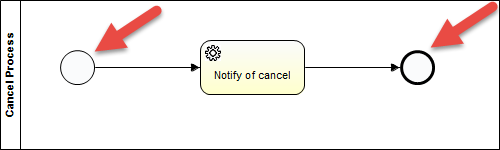

Step 4: Create a Start and End Event

Set the properties for the Start Event:

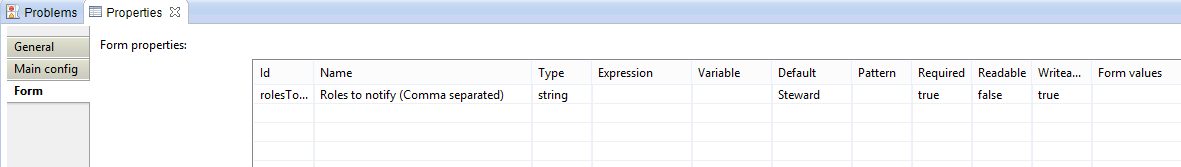

Start Event > Properties Tab > Main Config

Configuration Variables:

Id	Name	Type	Default	Required	Readable	Writeable
rolesToNotify	Roles to notify (Comma separated)	string	Steward	true	false	true

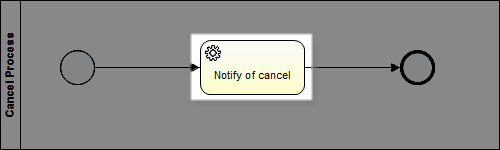

Step 5: Notify of cancel

Set the properties:

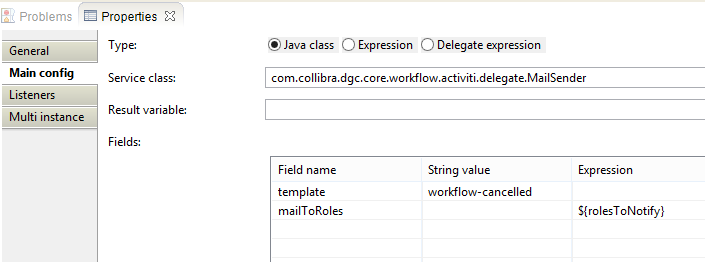

Service Task > Properties Tab > Main config

Property	Value	Description
Type	Java Class	Setting for delegate
Service Class	com.collibra.dgc.core.workflow.activiti.delegate.MailSender	Java Delegate used for sending mails from the workflow.

Fields:

Field name	String value	Expression	Description
template	workflow-cancelled		the name of the template that should be used to generate the mail.
mailToUsers		${rolesToNotify}	user expressions for users that should receive the action mail. See the EventBean

Icon

Information about the MailSender delegate can be found here: <yourCollibraDomain>/docs/index.html > core > Package: com.collibra.dgc.core.workflow.activiti.delgate > Class: MailSender
